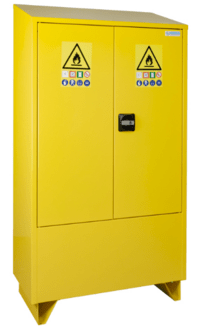

Fireproof cabinet with fire extinguisher - Range 1

Choose Models for offer request

Intended

  • iso-9001-copy
  • shape-2601
  • shape-2686
  • iso-9001-copy
  • shape-2601
  • shape-2686
  • large models are equipped with a CO2 extinguisher that activates at 65°C
  • locked
  • certified according to EN14470-1 or 14470-2
  • large retention capacity at the bottom of the cabinet
  • complies with CNPP FSE 98-006 specifications
  • standardized warning labels according to ISO 3864, ISO 7010 and NF X80.003 and European Directive 92/58/EEC
Ecosafe's fireproof cabinets are certified according to EN14470-1 or 14470-2, and are designed to store flammable materials. Some models are equipped with a CO2 fire extinguisher that activates when the temperature exceeds 65°C. In addition, the top of the cabinets is sloped to reduce unauthorized storage.

They have a large sump with a drain plug and a self-closing door. They also have factory-fitted holes for connection to the ventilation system.

Passive safty:
  • steel construction
  • epoxy paint: beige (model AMS 10 and 20), yellow (model AMS 100 and 200)
  • standardized symbol "flammable"
  • 3 adjustable perforated shelves on stands - AMS100 and AMS200
  • 1 shelf without height adjustment - AMS10 and AMS20
  • sump in the lower part, with drain plug
Active safty:
  • CO2 extinguisher (120g - AMS10 and 20; 500g - AMS100 and 200)
  • automatic triggering of the extinguisher when the appropriate temperature is exceeded
  • top and bottom side vents with a diameter of 100 mm, with a fire screen - except for models AMS10 and AMS20
  • wing door, self-closing
  • lockable doors

Technical data:
Model Internal dimentions (H x W x D) [mm] External dimentions (H x W x D) [mm] Weight [kg] Capacity [l] Color
AMS100
(Cabinet with a fire extinguisher)
1250 x 780 x 370 1500 x 800 x 400 70 100 Yellow
AMS200
(Cabinet with a fire extinguisher)
1530 x 980 x 370 1800 x 1000 x 400 91 200 Yellow
AMS100SE
(Cabinet without a fire extinguisher)
1250 x 780 x 370 1500 x 800 x 400 70 100 Yellow
AMS200SE
(Cabinet without a fire extinguisher)
1530 x 980 x 370 1800 x 1000 x 400 91 200 Yellow
AMS10
(Cabinet with a fire extinguisher)
260 x 490 x 220 455 x 500 x 250 12 10 Beige
AMS20
(Cabinet with a fire extinguisher)
260 x 695 x 230 500 x 700 x 250 16 20 Beige

Model Capacity Dimensions
AMS100 100 [l] 1500 x 800 x 400 (H x W x D) [mm]
ASM200 200 [l] 1800 x 1000 x 400 (H x W x D) [mm]
ASM100SE 100 [l] 1500 x 800 x 400 (H x W x D) [mm]
ASM200SE 200 [l] 1800 x 1000 x 400 (H x W x D) [mm]
ASM10 10 [l] 455 x 500 x 250 (H x W x D) [mm]
ASM20 20 [l] 500 x 700 x 250 (H x W x D) [mm]
