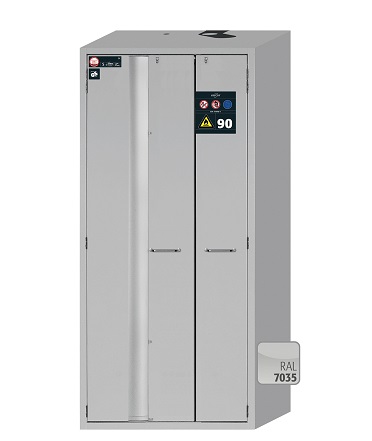

Fireproof cabinet S-PHOENIX-90 with a width of 90 cm and a height of 196 cm

Choose Models for offer request

S90.196.090.FWAS

Product Sheet

Intended

Folding door - space saving
GS certified, complies with CE, EN 16121/16122
Air channels
Possibility to compensate for floor irregularities
Cylinder lock
Wide range of optional equipment
Easy access to bins
Completely visible cabinet interior
Easy to montage
Robust construction
High resistance to damage

Characteristic
Available Models

S-PHOENIX-90 safety cabinets with a height of 196 cm and a width of 90 cm are used for the unrestricted storage of flammable hazardous substances in the workplace in accordance with EN 14470-1 and TRGS 510, featuring 90-minute fire resistance.

These cabinets are GS-certified thanks to the innovations used, providing an excellent technical solution. Built-in air ducts allow connection to an extraction system. All containers inside the cabinet are easily accessible, making the equipment ergonomical and functional.

Integrated adjustment in the base of the cabinet makes it easy and fast to set up on uneven ground.The construction of the cabinet is extremely solid, and the surface is resistant to mechanical scratches.

The cabinet has a folding door, equipped with a cylinder lock.

Note!!!

When submitting an inquiry, we would very much appreciate it if you include information about the selected configuration of the cabinet (example configuration number: 30115-001-33715).
We would like to remind you that the given number already includes information about the color of the cabinet (the three middle digits of the configuration number).

Thank you in advance :)

Technical data:

Model	Type	Internal dimentions (W x D x H) [mm]	External dimentions (W x D x H) [mm]	Weight [kg]	Minimum amount of exhaust air (10 times) [m³/h]	Maximum load weight [kg]	Color
S90.196.090.FWAS	90	750 x 524 x 1742	896 x 616 x 1968	431	7	600	light grey, yellow

Color code:
xxxxx-001-xxxxx - light grey
xxxxx-002-xxxxx - yellow

Optional equipment configuration:

S90.196.090.FWAS

30207-001-30212 30207-002-30212	30207-001-30213 30207-002-30213	30207-001-30214 30207-002-30214	30207-001-30215 30207-002-30215
3 shelves perforated cartridge sump (made of stainless steel)	4 shelves perforated cartridge sump (made of stainless steel)	3 shelves sump (made of stainless steel)	4 shelves sump (made of stainless steel)

30207-001-30216 30207-002-30216	30207-001-30217 30207-002-30217	30207-001-30833 30207-002-30833	30207-001-33705 30207-002-33705
3 tray shelves sump (made of polypropylen)	4 tray shelves sump (made of polypropylen)	3 tray shelves sump (made of stainless steel)	3 shelves perforated cartridge sump (made of powder coated steel plate)

30207-001-33706 30207-002-33706	30207-001-33707 30207-002-33707	30207-001-33708 30207-002-33708	30207-001-33709 30207-002-33709
4 shelves perforated cartridge sump (made of powder coated steel plate)	3 shelves sump (made of powder coated steel plate)	4 shelves sump (made of powder coated steel plate)	4 drawers (made of powder coated steel plate)

30207-001-33710 30207-002-33710	30207-001-33711 30207-002-33711	30207-001-33712 30207-002-33712	30207-001-33713 30207-002-33713
5 drawers (made of powder coated steel plate)	6 drawers (made of powder coated steel plate)	4 drawers (made of stainless steel)	5 drawers (made of stainless steel)
