Szafa ognioodporna Q-CLASSIC-90 TRIPLE CERTIFIED o szerokości 120 cm i wysokości 195 cm

Choose Models for offer request

Q90.195.120.FU.WDAS

Product Sheet

Intended

- Fire resistance 90 minutes
- Tested by GS
- Compliant with DIN EN 16121 and 16122
- For storing flammable hazardous substances in rooms according to TRGS 510 standards
- Ability to level uneven floors
- Cylinder lock
- Features a sturdy transport base for easy maneuvering with a cart
- Ability to level uneven floors
- FM 6050 and UL/ULC 1275 certified

Characteristic
Available Models

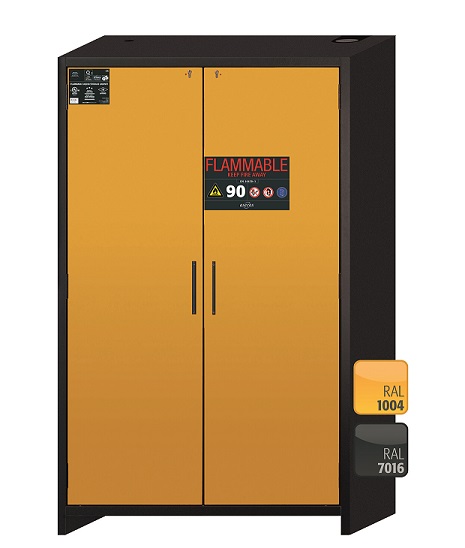

The Q-CLASSIC-TRIPLE CERTIFIED-90 safety cabinets, with a height of 195 cm and a width of 120 cm, are used for the unlimited storage of flammable hazardous substances in the workplace according to TRGS 510 standards, featuring a 90-minute fire resistance in accordance with DIN EN 14470-1.

They possess triple certification. Thanks to innovative design, these cabinets have a GS certification, representing an excellent technical solution, as well as FM 6050 and UL/ULC 1275 certifications.
Built-in air channels allow for connection to an exhaust system.

Access to all containers inside the chamber is easy and convenient.

The integrated adjustment at the base of the cabinet enables quick and easy leveling on uneven surfaces.

The cabinet's construction is extremely sturdy, and the surface is resistant to mechanical scratches. The doors are equipped with a cylinder lock.

Attention!!!

When submitting an inquiry, please include information about your chosen cabinet configuration (example configuration number: 30115-001-33715). We remind you that the provided number already contains information about the cabinet's color (the three middle digits of the configuration number).

Thank you in advance :)

Dane techniczne:

Model	Internal Dimensions (W x D x H) [mm]	External Dimensions (W x D x H) [mm]	Weight [kg]	Minimum Exhaust Air Volume (10 times) [m³/h]	Maximum Load [kg]	color
Q90.195.090.FU.WDAS (classic cabinet, wing doors)	1050 x 522 x 1647	1193 x 615 x 1953	483	9	600	yellow, gray

Color Designations:

xxxxx-040-xxxxx - Yellow
xxxxx-041-xxxxx - Gray

Konfiguracje wyposażenia opcjonalnego:

Q90.195.120.FU.WDAS

37584-040-34637 37584-041-34637	37584-040-34638 37584-041-34638	37584-040-34639 37584-041-34639	37584-040-34640 37584-041-34640
3 shelves perforated insert catch basin (made of powder-coated steel)	4 shelves perforated insert catch basin (made of powder-coated steel)	3 shelves catch basin (made of powder-coated steel)	4 shelves catch basin (made of powder-coated steel)

37584-040-37594 37584-041-37594	37584-040-37597 37584-041-37597	37584-040-37606 37584-041-37606	37584-040-37609 37584-041-37609
3 tray shelves perforated insert catch basin (made of powder-coated steel)	4 tray shelves perforated insert catch basin (made of powder-coated steel)	3 tray shelves catch basin (made of powder-coated steel)	4 tray shelves catch basin (made of powder-coated steel)
