Fireproof cabinet S-PEGASUS-90with a width of 120 cm and a height of 129 cm

Choose Models for offer request

Intended

  • iso-9001-copy
  • shape-2601
  • shape-2686
  • iso-9001-copy
  • shape-2601
  • shape-2686
  • Automatic door closing mechanism
  • GS certificate
  • Air channels
  • Swing door with automatic closing mechanism
  • Cylinder lock
  • Wide range of optional equipment
  • Easy access to bins
  • Completely visible cabinet interior
  • Easy assembly
  • Robust construction
  • High resistance to damage

S-PEGASUS-90 safety cabinets with a height of 129 cm and a width of 120 cm are used for unrestricted storage of flammable hazardous substances in the workplace in accordance with EN 14470-1 and TRGS 510, featuring 90-minute fire resistance.

These cabinets are GS-certified thanks to the innovations used, providing an excellent technical solution. Built-in air ducts allow connection to an extraction system. All containers inside the cabinet are easily accessible, making the equipment ergonomic and functional.

Integrated adjustment in the base of the cabinet allows for easy and quick positioning on uneven ground.The construction of the cabinet is extremely solid, and the surface is resistant to mechanical scratches.

The door equipped with a cylinder lock and automatic locking mechanism (TSA) can be opened almost without effort.

Note!!!

When submitting an inquiry, we would very much appreciate it if you include information about the selected cabinet configuration (example configuration number: 30115-001-33715).
We would like to remind you that the given number already includes information about the color of the cabinet (the three middle digits of the configuration number).

Thank you in advance :)


Technical data:

Model Cabinet type External dimentions
(W x D x H)
[mm]
Internal dimentions
(W x D x H) [mm]
Weight [kg] Minimum amount of exhausted air |(10 times)
[m³/h]
Maximum capacity
[kg]
Colors
S90.129.120.WDAC 90 1196 x 616 x 1298 1050 x 524 x 1072 339 6 600 Light grey, yellow

Color code:

xxxx-001-xxxxx - light grey
xxxx-002-xxxxx - Yellow


Optional equipment configurations:

S90.129.120.WDAC
1 2 3 4
30123-001-33744 (light grey)
30123-002-33744 (yellow)
30123-001-33745
30123-002-33745
30123-001-33746
30123-002-33746
30123-001-33747
30123-002-33747

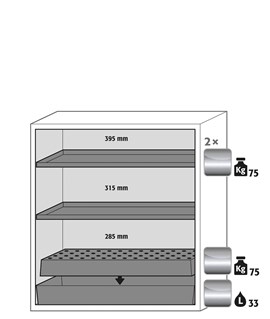

2 shelves
perforated cartridge
sump
(made of powder coated steel plate)

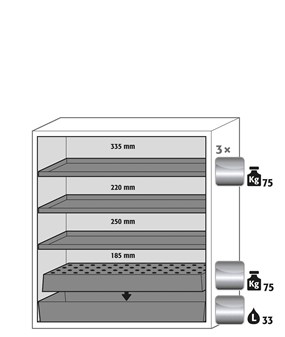

3 shelves
perforated cartridge
sump
(made of powder coated steel plate)

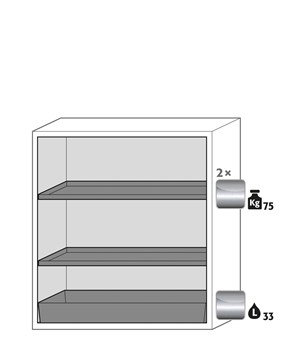

2 shelves
sump
(made of powder coated steel plate)

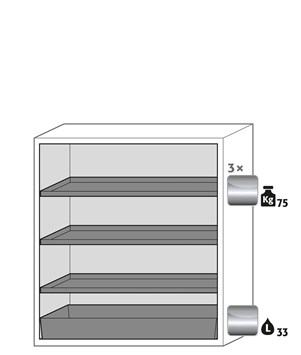

3 shelves
sump
(made of powder coated steel plate)
5 6 7 8
30123-001-33748
30123-002-33748
30123-001-33749
30123-002-33749
30123-001-33750
30123-002-33750
30123-001-33751
30123-002-33751

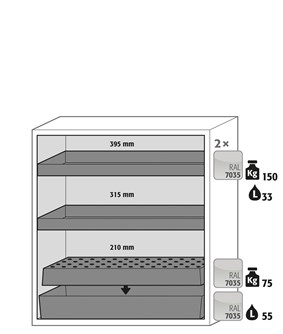

2 tray shelves
perforated cartridge
sump
(made of powder coated steel plate)
2 shelves
perforated cartridge
sump
(made of stainless steel)
3 shelves
perforated cartridge
sump
(made of stainless steel)
2 shelves
sump
(made of stainless steel)
9 10 11 12
30123-001-33752
30123-002-33752
30123-001-30165
30123-002-30165
30123-001-30166
30123-002-30166
30123-001-33753
30123-002-33753
3 shelves
sump
(made of stainless steel)

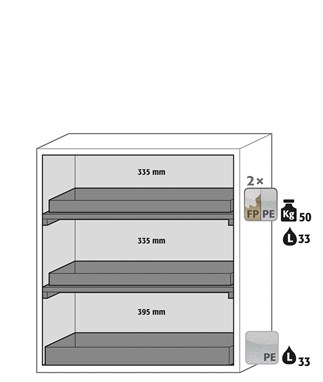

2 tray shelves
sump
(made of polypropylene)

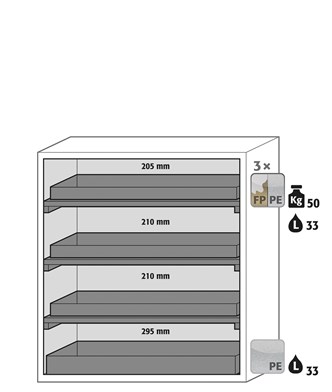

3 tray shelves
sump
(made of polypropylene)
2 drawers
(made of powder coated steel plate)
13 14 15
30123-001-33754
30123-002-33754
30123-001-33755
30123-002-33755
30123-001-33756
30123-002-33756

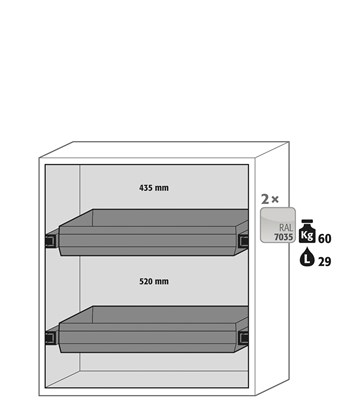

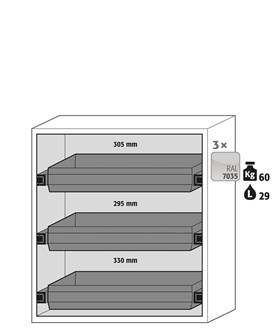

3 drawers
(made of powder coated steel plate)

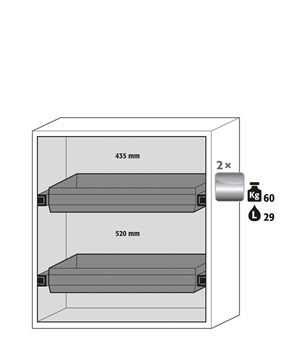

2 drawers
(made of stainless steel)

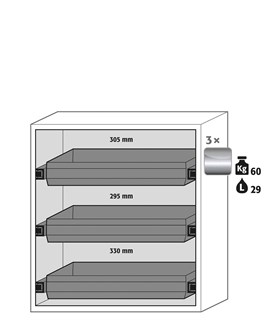

3 drawers
(made of stainless steel)
Model Other
S90.129.120.WDAC standard cabinet
