Fireproof cabinet Range - 3030T
Choose Models for offer request
Intended
- 30-minute fire resistance in accordance with EN 14470-1, EN 1363-1 and FM 6050 standards
- For storing flammable substances
- Pull-out drawers instead of shelves
- Standardized warning labels according to ISO 3864, ISO 7010, NF X08.003, Directive 92/58/EEC, EN 14470-1
- Fire tests carried out by an accredited French testing laboratory according to EN:17025 by CORFAC, in accordance with ISO 834
Characteristic
Available Models
Ecosafe's 3030T fireproof cabinets allow the safe storage of flammable products. They have a 30-minute fire resistance rating, tested by an accredited French testing laboratory, in accordance with EN:17025 according to CORFAC, ISO 834. The cabinet's design is designed to be moved by forklift (when the interior is empty), in addition to under-counter models. They have self-closing fire retention drawers.
Passive safty:
- Insulated panel construction for high resistance to chemicals
- light gray RAL 7035 frame with RAL 1023 yellow plated fields
- standardized symbols
Active safety:
- ventilation openings with a diameter of 100 mm
- self-closing doors
- 3-point key lock
- non-sparking locking system
- adjustable leveling footers
- thermally expandable door seals
Technical specifications:
Passive safty:
- Insulated panel construction for high resistance to chemicals
- light gray RAL 7035 frame with RAL 1023 yellow plated fields
- standardized symbols
Active safety:
- ventilation openings with a diameter of 100 mm
- self-closing doors
- 3-point key lock
- non-sparking locking system
- adjustable leveling footers
- thermally expandable door seals
Technical specifications:
Model | Description | External dimentions [mm] | Internal dimentions [mm] | Weight [kg] |
7031T | Short single door cabinet, with a one drawer | 635 x 605 x 630 | 366 x 491 x 475 | 64 |
7032T | Short single door cabinet, with a one drawer | 635 x 1115 x 630 | 366 x 1001 x 475 | 108 |
3034T4 | Tall, Single door cabinet, with four drawers | 1980 x 605 x 550 | 1580 x 495 x 420 | 141 |

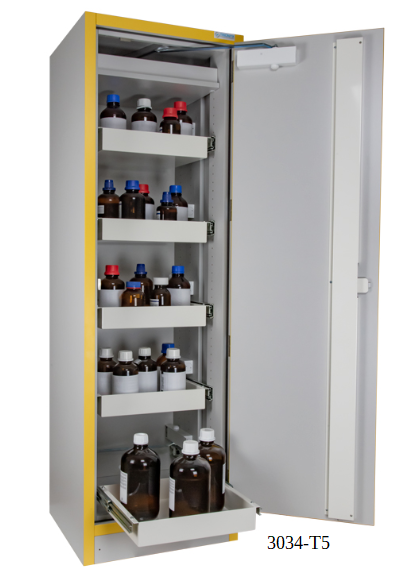

3034T5 | Tall, Single door cabinet, with five drawers | 1980 x 605 x 550 | 1580 x 495 x 420 | 147 |
3034T6 | Tall, Single door cabinet, with six drawers | 1980 x 605 x 550 | 1580 x 495 x 420 | 153 |

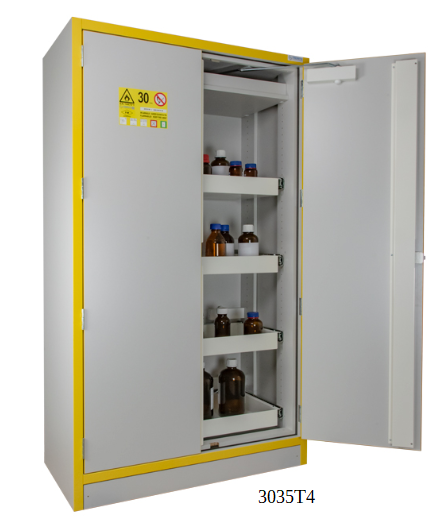

3035T4 | Tall, double door cabinet, with four drawers | 1980 x 1115 x 550 | 1580 x 1050 x 420 | 258 |

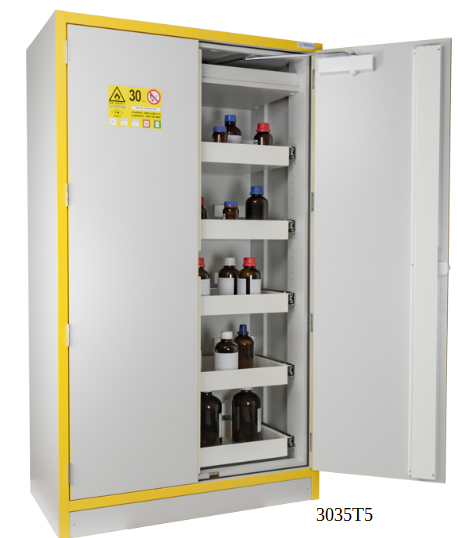

3035T5 | Tall, double door cabinet, with five drawers | 1980 x 1115 x 550 | 1580 x 1050 x 420 | 270 |

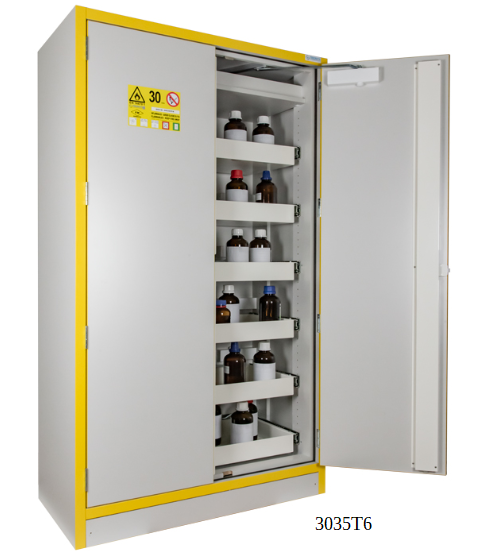

3035T6 | Tall, double door cabinet, with six drawers | 1980 x 1115 x 550 | 1580 x 1050 x 420 | 287 |
Model | Dimensions |
---|---|
7031T | 635 x 605 x 630 [mm] |
7032T | 635 x 1115 x 630 [mm] |
3034T4 | 1980 x 605 x 550 [mm] |
3034T5 | 1980 x 605 x 550 [mm] |
3034T6 | 1980 x 605 x 550 [mm] |
3035T4 | 1980 x 1115 x 550 [mm] |
3035T5 | 1980 x 1115 x 550 [mm] |
3035T6 | 1980 x 1115 x 550 [mm] |
