Fireproof cabinet Range - 3030

Choose Models for offer request

3031E
3032E
3034E
3035E
3033UE
3035UE
3036UE

Product Sheet

Intended

30-minute fire resistance
Compabile with EN 14470-1, EN 1636-1 and FM 6050 standards
Standardized warning labels according to ISO 3864, ISO 7010, NF X08.003, Directive 92/58/EEC, EN 14470-1
Fire tests carried out by an accredited French testing laboratory according to EN:17025 by CORFAC, in accordance with ISO 834
Design suitable for handling by forklift - except for under-counter models

Characteristic
Available Models

Ecosafe's 3030 fireproof cabinets allow the safe storage of flammable products and delay the spread of a possible fire in the cabinet, pending emergency intervention. They have a 30-minute fire resistance rating, tested by an accredited French testing laboratory, in accordance with EN:17025 according to CORFAC, ISO 834. The cabinet's design is designed to be moved by forklift (when the interior is empty), in addition to under-counter models.

Passive safety:

Insulated panel construction with a high resistance to chemicals
RAL 7035 light gray frame with RAL 1023 yellow plated fields
Height-adjustable retention shelves in 32 mm increments
Removable sump tray at bottom

Active safety:

Ventilation openings with a diameter of 100 mm
Self-closing doors
3-point key lock
Non-sparking locking system
Adjustable leveling footers
Thermo-expandable door seals

Technical data:

Model	Description	External dimentions [mm]	Internal dimentions [mm]	Capacity [l]	Max. Weight [kg]	Weight [kg]

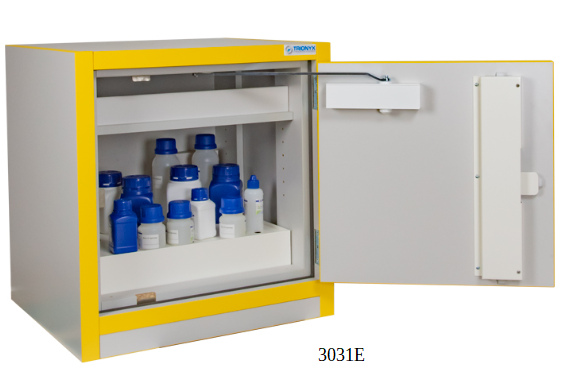

3031E	Undercounter, single door cabinet	635 x 605 x 630	365 x 491 x 475	30	30	64

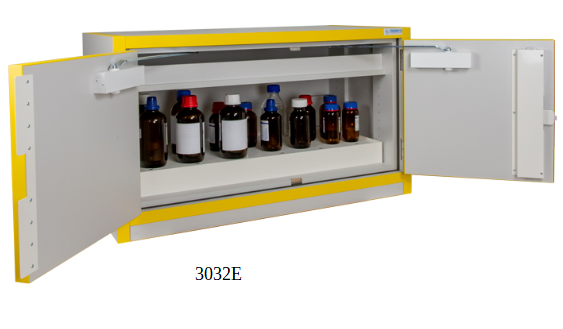

3032E	Undercounter double door cabinet	635 x 1115 x 630	365 x 1001 x 475	60	50	108
3034E	Single door, tall cabinet	1980 x 605 x 550	1580 x 495 x 420	130	30	117
3035E	Double door, tall cabinet	1980 x 1115 x 550	1580 x 1050 x 420	250	50	210

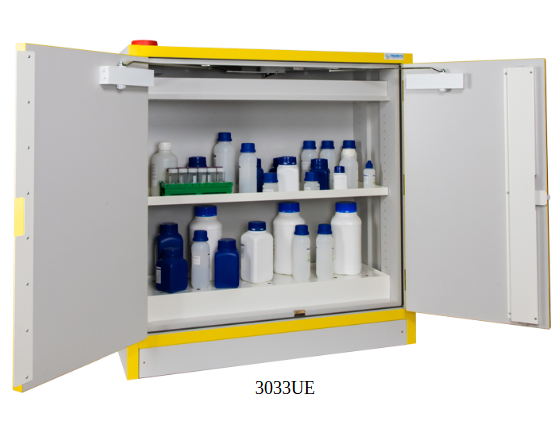

3033UE	Double door, short cabinet	1198 x 1092 x 537	795 x 980 x325	113	50	170

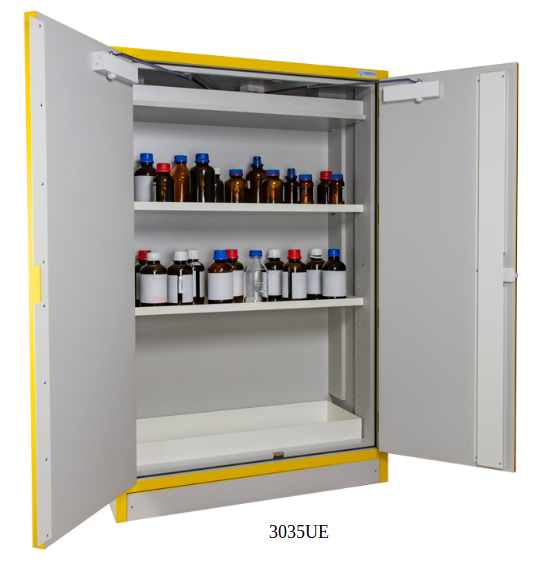

3035UE	Double door tall cabinet	1731 x 1092 x 457	1330 x 980 x 325	170	50	210

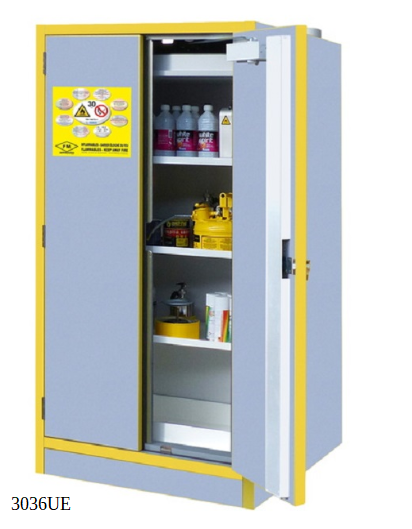

3036UE	Double door, tall cabinet	1731 x 864 x 864	1330 x 750 x 730	228	50	210

Model	Capacity	Dimensions
3031E	30 [l]	635 x 605 x 630 [mm]
3032E	60 [l]	635 x 1115 x 630 [mm]
3034E	130 [l]	1980 x 605 x 550 [mm]
3035E	250 [l]	1980 x 1115 x 550 [mm]
3033UE	113 [l]	1198 x 1092 x 537 [mm]
3035UE	170 [l]	1731 x 1092 x 457 [mm]
3036UE	228 [l]	1731 x 864 x 864 [mm]
