Szafa ognioodporna Q-CLASSIC-90 TRIPLE CERTIFIED o szerokości 90 cm i wysokości 195 cm

Choose Models for offer request

Intended

  • iso-9001-copy
  • shape-2601
  • shape-2686
  • iso-9001-copy
  • shape-2601
  • shape-2686

  • Fire resistance of 90 minutes

  • Tested by GS

  • Compliant with DIN EN 16121 and 16122

  • For the storage of flammable hazardous substances indoors in accordance with TRGS 510

  • Possibility to level uneven floors

  • Cylinder lock

  • Equipped with a sturdy transport base for easy handling with a cart

  • Ability to compensate for uneven floors

  • Certified to FM 6050 and UL/ULC 1275

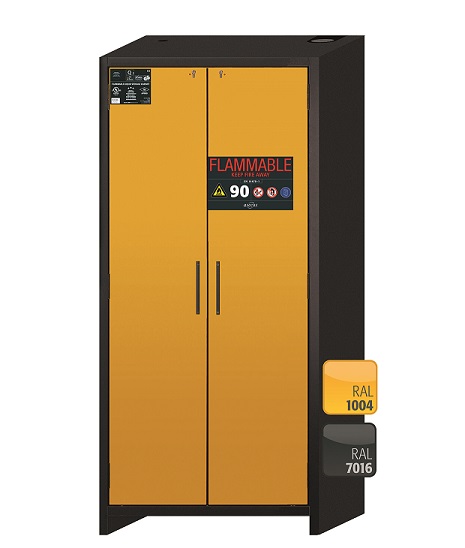

The Q-CLASSIC-TRIPLE CERTIFIED-90 safety cabinets, with a height of 195 cm and a width of 90 cm, are designed for unlimited storage of flammable hazardous substances in the workplace in accordance with TRGS 510, featuring a 90-minute fire resistance as per DIN EN 14470-1.

These cabinets are triple certified. Thanks to innovative features, they have a GS certification, representing an excellent technical solution, as well as FM 6050 and UL/ULC 1275 certifications.

Built-in air channels allow for connection to an exhaust system.

Access to all containers inside the chamber is easy and convenient.

The integrated adjustment at the base of the cabinet allows for easy and quick leveling on uneven surfaces.

The cabinet's construction is exceptionally sturdy, with a surface resistant to mechanical scratches. The doors are equipped with a cylinder lock.


Attention!!!

When submitting an inquiry, please include information about your selected cabinet configuration (example configuration number: 30115-001-33715).
Please remember that the provided number already contains information about the cabinet's color (the three middle digits of the configuration number).

Thank you in advance!



Technical data:



Model

Internal Dimensions (W x D x H) [mm]

External Dimensions (W x D x H) [mm]

Weight [kg]

Minimum Air Exhaust Volume (10 times) [m³/h]

Maximum Load [kg]

Color

Q90.195.090.FU.WDAS
(standard cabinet, hinged doors)

750 x 522 x 1647

893 x 615 x 1953

394

9

600

yellow, gray





Color designation:

xxxxx-040-xxxxx - yellow
xxxxx-041-xxxxx - gray

Optional equipment configurations:



Q90.195.090.FU.WDAS
1 2 3 4
37585-040-34628
37585-041-34628
37585-040-34629
37585-041-34629
37585-040-34630
37585-041-34630
37585-040-34631
37585-041-34631

3 shelves
perforated insert
catch basin
(made of powder-coated steel)

4 shelves
perforated insert
catch basin
(made of powder-coated steel)

3 shelves
catch basin
(made of powder-coated steel)

4 shelves
catch basin
(made of powder-coated steel)

5 6 7 8
37585-040-37595
37585-041-37595
37585-040-37598
37585-041-37598
37585-040-37607
37585-041-37607
37585-040-37610
37585-041-37610

3 tray shelves
perforated insert
catch basin
(made of powder-coated steel)

4 tray shelves
perforated insert
catch basin
(made of powder-coated steel)

3 tray shelves
catch basin
(made of powder-coated steel)

4 tray shelves
catch basin
(made of powder-coated steel)



Model Other
Q90.195.090.FU.WDAS szafa standardowa, drzwi skrzydłowe, potrójnie certyfikowana
