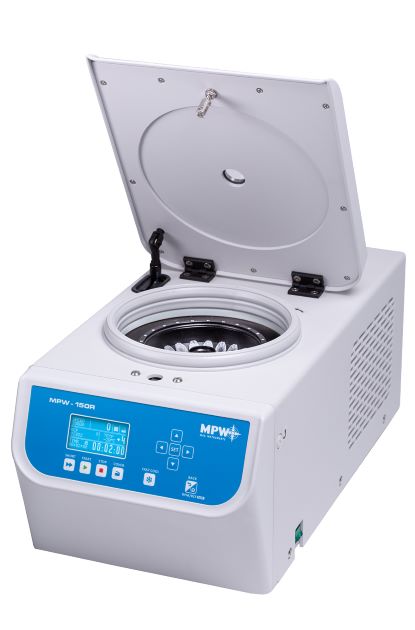

Laboratory centrifuge

A laboratory centrifuge is a device used to separate the components of mixtures (suspensions and emulsions) by using the centrifugal force generated during the rapid centrifugation of samples. The difference in density results in natural phase separation without the need for filtration, which significantly speeds up the analytical process and increases its repeatability.

In practice, centrifuges are the basic equipment of biological, chemical and medical laboratories, as they enable the rapid acquisition of clear fractions for further diagnostic and experimental tests.

Physical Basis for Mixture Separation and Optimization of Analysis Time

The centrifugation process is based on the action of centrifugal force that acts on the sample placed in the rotor. Heavier particles move outside and settle to the bottom of the tube, while lighter ones remain in the upper layers of the liquid.

Thanks to this mechanism, it is possible to quickly and efficiently separate the ingredients without the need for multi-stage chemical processes. In practice, this significantly shortens the preparation of samples, increases work efficiency and reduces the risk of analytical errors.

Specialized device variants for advanced diagnostic procedures

The modern laboratory centrifuge is available in many variants adapted to various research and diagnostic applications.

The most important types include:

• benchtop centrifuges – for routine laboratory analyses
• High-speed centrifuges – used in molecular biology and biochemistry
• ultracentrifuges – for the separation of very small particles, e.g. viruses
• haematocrit centrifuges – for determining blood parameters
• cytological centrifuges – used in cell diagnostics
• Vacuum centrifuges – for operation under controlled conditions
• Vibrating centrifuges – for specialized separation processes
• Refrigerated centrifuges – for working with temperature-sensitive material

Each model is selected for a specific application, e.g. in clinical trials, where a laboratory centrifuge for plasma is often used, or in environmental and industrial analyses.

Efficient drive systems and selection of chamber components

Modern centrifuges are equipped with brushless motors, which ensure high rotational stability, low noise level and long service life of the device. The design of the chamber and rotors, which are responsible for the even distribution of forces acting on the samples, is also crucial.

The following rotors are used:

• Angled – for fast particle deposition
• pendulum – for gentle separation of liquid layers

In laboratories, centrifuges often work with other equipment such as homogenizers, mechanical agitators or laboratory shakers to support comprehensive test preparation and treatment of biological material.

Work automation systems and user protection standards

A modern laboratory centrifuge is equipped with advanced digital control systems that allow for programming work cycles and precise setting of parameters such as speed, time and temperature.

Additional safety systems include:

• automatic detection of unbalance of samples
• Lid lock during operation
• overheating protection
• Emergency stop systems

Such solutions increase operator safety and ensure high reproducibility of results even under intensive use.

Spectrum of applications in medical facilities and industrial sectors

Centrifuges are used in a very wide range of fields, m.in.:

• medical diagnostics (blood, plasma and serum analysis)
• Microbiology and molecular biology
• analytical chemistry and laboratory testing
• Pharmaceuticals and Pharmaceutical Manufacturing
• Veterinary
• aesthetic medicine
• Biotech & Food Industry

This  makes the laboratory centrifuge a universal device, used both in small diagnostic laboratories and in large research centers.

Equipment maintenance procedures and after-sales care

To ensure a long service life of the device, regular technical inspections are necessary, including rotor inspection, calibration and cleaning of the working chamber. It is also important to monitor the condition of bearings and cooling systems.

Manufacturer's service and access to spare parts also play an important role, which affects the continuity of laboratory operation and reduces downtime.

How much does a lab centrifuge cost?

The price of a laboratory centrifuge depends on many factors, primarily on the technical parameters, the purpose of the device and the level of automation of work. It is also important whether the equipment is designed for routine analysis or for advanced specialist tests that require high precision and stability of operation.

As a guide, it can be assumed that basic models cost from about 1500 to 4000 PLN, while universal centrifuges with a cooling function are usually in the range of 7000-25,000 PLN. The most advanced devices, i.e. ultracentrifuges, can reach prices from several tens of thousands to even several hundred thousand zlotys, depending on the class and technologies used.

The final cost is also influenced by elements such as the maximum rotational speed and centrifugal force generated, the presence of cooling and automation systems, as well as the level of quality and safety certification. The purpose of the device (diagnostic, research or industrial), the availability of various rotors and accessories, as well as the warranty and service conditions, which are crucial for long-term operation in the case of laboratory equipment, are also important.
