FRONTIER 5000 MULTI Centrifuge
Choose Models for offer request
Intended
- Quiet brushless motor
- Small size
- Easy to install
- LCD display
Characteristic
Available Models

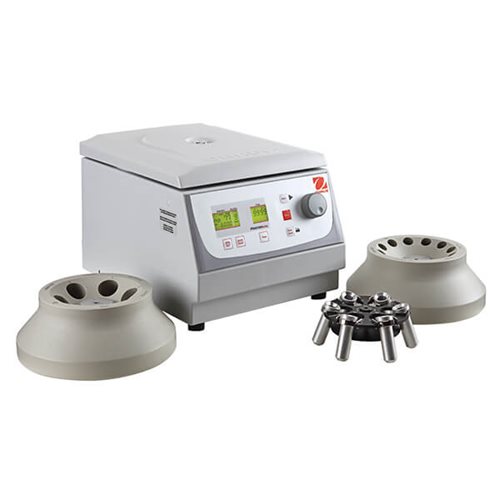

Frontier™ Multi centrifuges are reliable, compact general-purpose centrifuges. The standard rotor allows them to work with both round-bottom and conical tubes (including blood tubes), and they can also be easily adapted to work with smaller tubes with optional accessories. Designed for convenient operation, the Multi centrifuges have an intuitive interface. Their compact size helps save valuable work space in laboratories. The manufacturer offers three models: FC5706, FC5706 + R05 with angle rotor included, and model FC5707 + R05 also with angle rotor included.
Device features:
- Conveniently controlled with an intuitive interface that allows quick operation even when wearing gloves
- Can accommodate standard 50 ml and 15 ml tubes, including regular blood tubes. When used with accessories, rotors can be adjusted up to 1.5 ml capacity
- Thanks to their compact size, they save valuable space on the laboratory table
- Frontier™5706 is a small multifunctional benchtop centrifuge, it is designed for basic liquid separation processes
- Frontier™5707 is a reliable, compact general purpose centrifuge with low speed, the rotor can work with both round and conical bottom tubes (including regular blood tubes)
Technical specification:
| Model | FC5707+R05 100-230V | FC5706 230V | FC5706+R05 230V |
| Max. RPM [rpm] | 200 - 6800 | 200 - 6000 | 200 - 6000 |
| Relative centrigugal force max. [rcf] | 4445 × g; 10 × g/kit | 4427 x g; increment 10 × g | 4427 x g; increment 10 × g |
| Volume max. [ml] | 8 × 15 ml RB* / 4 × 15 FA | 6 x 50 | 6 x 50 |
| Cooling | Air | Air | Air |
| Operating time | Short Spin, from 10 sec to 99 h 59 min 59 sec or in constant mode | from 10 sec to 99 h 99 min 99 sec or in constant mode | from 10 sec do 99 h 99 min 99 sec or in constant mode |
| Noise level [depends on motor] [dB (A)] |
≤ 60 | ≤ 60 +2 | ≤ 60 +2 |
| Programs memory | 99 | ||
| Number of compatible rotors | 1 - angle rotor 8 x 15 ml (included) | 3 - swivel rotor6 x 5 ml; angle rotor 12 x 15 ml; angle rotor 6 x 50 ml | 3 - swivel rotor 6 x 5 ml; angle rotor 12 x 15 ml (included) ; angle rotor6 x 50 ml, |
| Level of acceeration / deceleration | 10 | ||
| Dimensions [W × D × H] [mm] |
277 × 356 × 236 | 291 × 392 × 266 | 291 × 392 × 266 |
| Display | LCD with backlight | ||
| Catalog no | 30393189 | 30130875 | 30332131 |
*RB-round bottom, FA-conical bottom.
| Model | Speed range [rpm] |
|---|---|
| FC5707+R05 | 200–6800 |
| FC5706 | 200–6000 |
| FC5706+R05 | 200–6000 |
