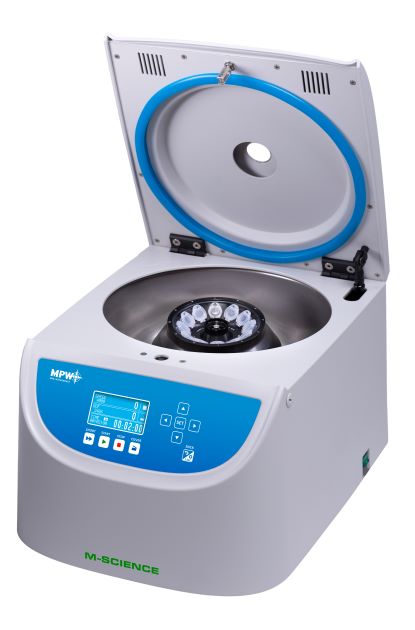

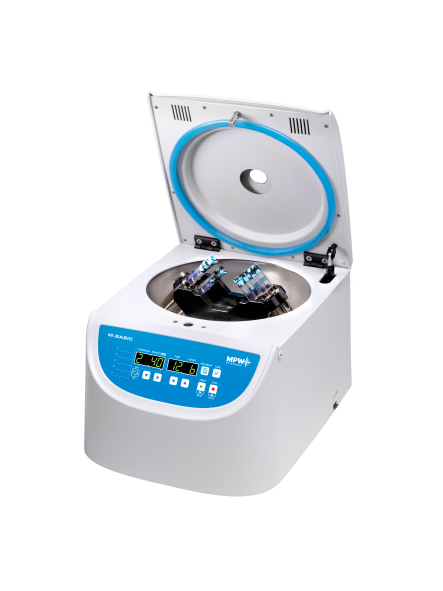

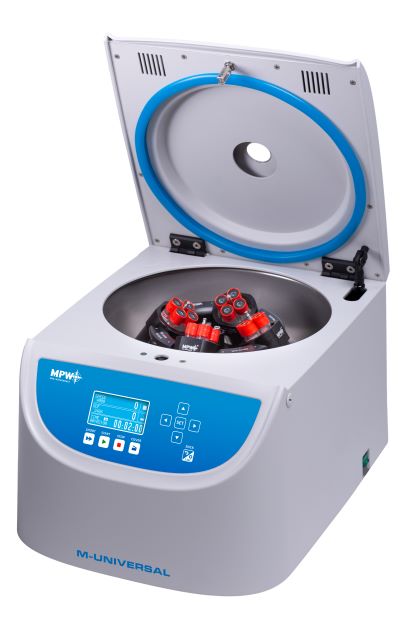

MPW centrifuge M series

The MPW M-series centrifuges, thanks to a wide range of equipment (angular and horizontal rotors), enable routine tests to be performed: full morphology, biochemistry, coagulography, urinalysis, hematocrit, parasitology, hematology, cancer diagnosis (CYTO), semen examination and others.

Features of M-UNIVERSAL, M-DIAGNOSTIC, M-SCIENCE, M-BASIC devices:

• Modern design
• Low noise level
• Maintenance-free programming system
• Large LCD graphic display
• 2 screen modes (simplified and standard
• 10 menu languages (PL, EN, ES, IT, PT, DE, RU, RF, SE, CZ)
• Visual and audible alarms to indicate operation status
• 100 use programs
• 10 acceleration/deceleration characteristics
• speed or RCF control
• counting the time from pressing the start key or reaching the set speed
• Countdown of time in ascending or descending order
• continuous work mode HOLD
• change of parameters during centrifugation
• automatic rotor identification
• automatic opening of the cover
• recording of centrifugation parameters (via USB interface) - only M-UNIVERSAL
• blocking of selected functions, access protection by password
• effective ventilation system
• 300 x 367 x 455mm [HxWxD], 572mm high with lid open
• weight 22, 23 kg

Technical specification:

Model	M-BASIC	M-SCIENCE	M-DIAGNOSTIC	M-UNIVERSAL
Max. RPM [rpm]	4000	18000	6 000	18000
RCF [x g]	2469	24270	4830	24270
Volume [ml]	8 x 15; 2 x 50; 2 x 60 PRP	100	500 (12 gel cards, 4 x CYTO)	500 (24 capillaries 75 mm)
Dimensions HxWxD [mm]	300 x 365 x 450	300 x 367 x 455
Weight [kg]	21	22
Operating time	1 ÷ 99min (step 1min), ∞ (HOLD)	1s ÷ 99h 59min 59s + ∞, step 1s
Power [W]	120	220	190	220
Power supply	230V 50/60Hz; 120V 50/60Hz
Features	modern programming system, maintenance-free induction motor, wide range of available rotors
Security	Lid lock, emergency lid opening
