FRONTIER 5000 MULTI-PRO laboratory centrifuge

Efficient and versatile universal centrifuges for laboratory applications

Centrifuges Frontier 5000 Multi-Pro are versatile and suitable for many different applications. They can be combined with a variety of rotors and accessories, allowing customization. There are 7 different models available, ranging from 0.2 ml to 4×750 ml, offering high speed at maximum capacity, automatic rotor identification and a range of necessary safety features. They are ideal for centrifuging most tubes and bottles in the laboratory, including microtubes, blood tubes, round-bottom tubes, conical tubes and microtiter plates, among others.


Features:

• Equipped with a high-speed centrifuge platform that can be customized to meet the needs of work processes using a wide variety of accessories
• Intuitive design of centrifuges and retrofits, makes it easy to access parameter configuration and make quick changes between programs
• Construction with high-end components, ensures the reliability of the unit's operation. Made of stainless steel resistant to chemicals, enables long life in laboratories
• Guarantee greater operational safety, thanks to built-in safety features such as automatic over-speed protection, imbalance detection and self-diagnostic system
• Centrifuge FC5714: High centrifugation speed (>10,000 rpm) for test tubes from 0.2 ml to 1.5/2.0 ml

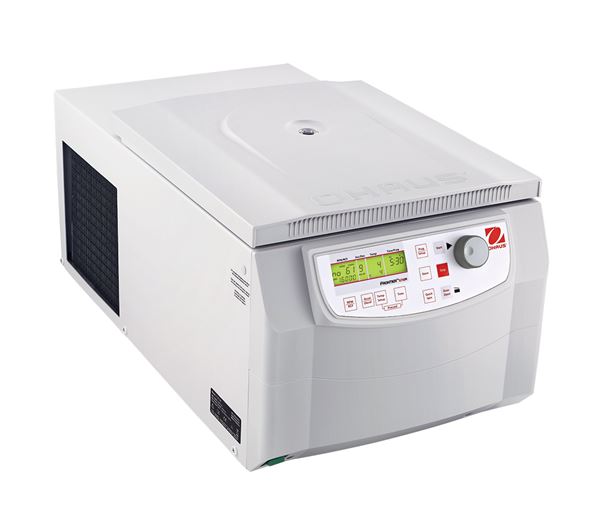

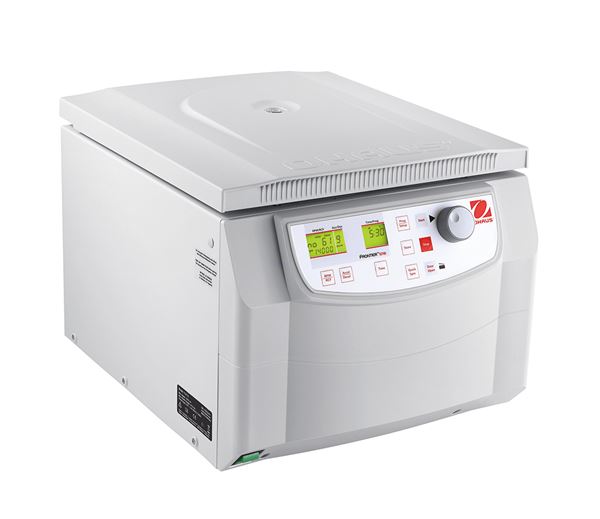

• Centrifuges FC5718 and FC5718R: High centrifugation speed (>10,000 rpm) for 0.2 ml to 85 ml tubes

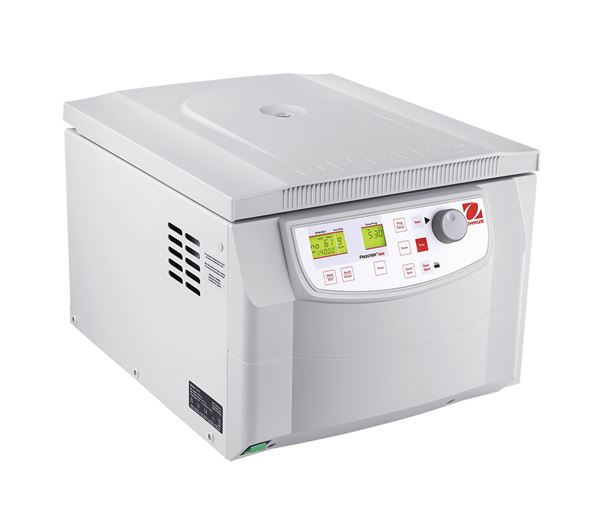

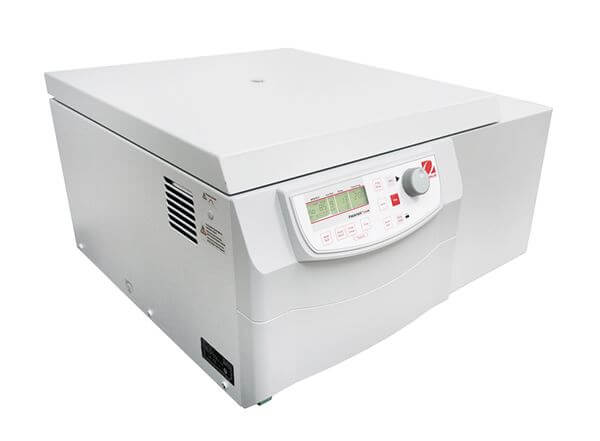

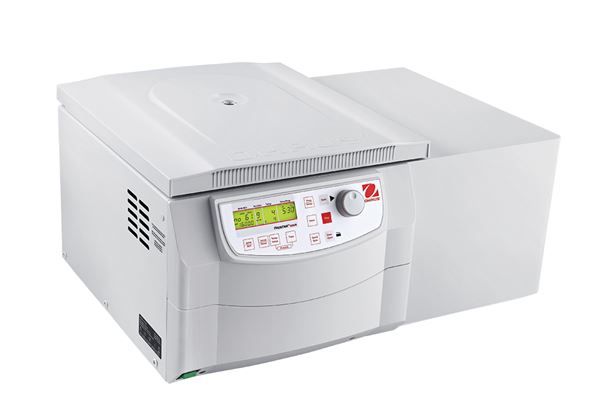

• Centrifuges FC5816, FC5816R and FC5916 and FC5916R: Increased sample processing efficiency with additional rotor for blood tubes and standard conical tubes , and high centrifugation speed (>10,000 rpm) for tubes from 0.2 ml to 85 ml.

Technical specification:

Model	FC5714	FC5718	FC5718R	FC5816	FC5816R	FC5916	FC5916R
Max. RPM [rpm]	200 - 14000	200 - 18000	200 - 18000	200 - 15000	200 - 16000	200 - 16000	200 - 16000
Relative centrifugal force max. [rcf]	20 - 18624 × g	20 - 23542 × g	20 - 23542 × g	20 - 21379 × g	20 - 24325 × g	20 - 24325 × g	20 - 26331 × g
Max. volume	4 × 100 ml	4 × 100 ml	4 × 100 ml	6 × 250 ml	6 × 250 ml	4 × 750 ml	4 × 750 ml
Operating temperature [°C]	Air cool	Air cool	-20 do 40 °C	Air cool	-20 do 40 °C	Air cool	-20 do 40 °C
Operating time	Short Spin, from 10 sec to 99 h 59 min 59 sec or in constant mode
Noise level  [dB (A)] (depend on rotor)	≤ 63 ± 2	≤ 60 ± 2	≤ 60 ± 2	≤ 61 ± 2	≤ 63 ± 2	≤ 63 ± 2	≤ 63 ± 2
Number of compatible rotors	9	19	19	13	13	14	14
Level of acceleration / deceleration	10
Permissible kinetic energy [Nm]	5595	16672	25111	34363	34363	60629	54458
Dimensions [W × D × H] [mm]	362 × 493 ×330	408 × 499 × 351	407 × 731 × 359	446 × 538 × 354	723  ×  538  × 354	780  ×  670 × 590	900 × 750 × 560
Programs memory	99
Display	LCD backlit, 2-lines
Rotor recognition method	Auto
Catalog no	30314810	30314812	30314814	30314816	30314818	30553036	30553101
