FRONTIER 5000 MICRO Microcentrifuge
Choose Models for offer request
Intended
- Handle microtubes
- Intuitive controls
- Small size
Characteristic
Available Models
Reliable benchtop microcentrifuges ideal for laboratory applications requiring high speeds
Frontier™ microcentrifuges provide fast and efficient performance for many laboratory applications, such as DNA/RNA preparation and ultrafiltration. Research on hazardous samples is made possible by a biological barrier rotor. The Frontier™ microcentrifuges have an intuitive interface so that all parameters are immediately available for adjustment and observation. The compact design saves space in the laboratory.
Device features:

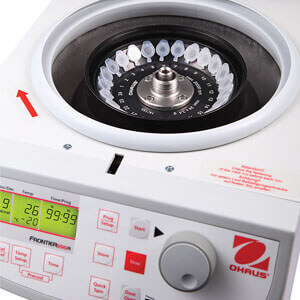

- Microbial barrier - Microcentrifuges offers a rotor for 1.5/2 ml microtubes with a biological barrier option. Optional rotors support 5 ml microtubes, spin columns, PCR strips and hematocrit assay capillaries

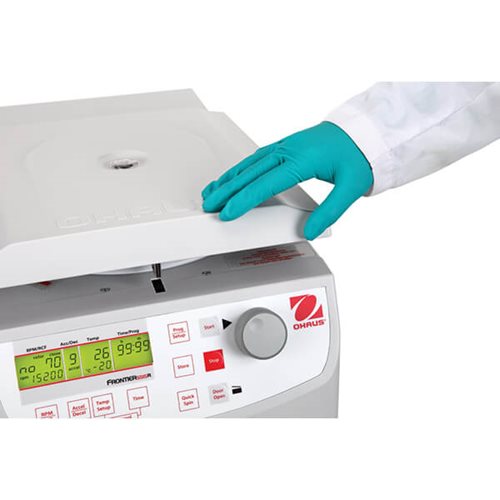

- Simple and easy operation - Designed with ease of use in mind, Frontier™ microcentrifuges offer convenient control via an intuitive interface that allows quick operation - even with gloves on

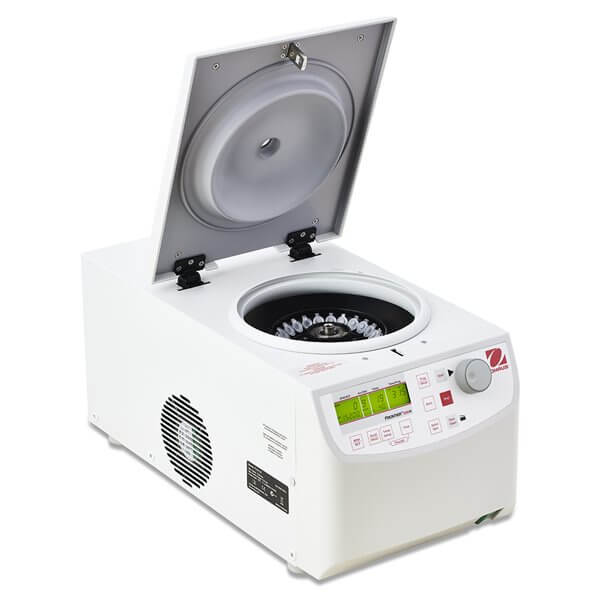

- Space-saving - The Frontier™ functional microcentrifuge saves valuable space on the lab table thanks to its compact size
Technical specification:
Model | FC 5313 | FC5513+R01 230V | FC 5515R | FC 5515 |
Max RPM [rpm] | 200 - 13 500 | 200 - 13 500 | 200 - 15 200 | 200 - 15 200 |
Relative centrifugal force max. [rcf] | 17317 × g; | 17317 x g | 21953 × g | 21953 × g |
Max. volume | 24 × 1,5/2,0 ml | 24 x 1,5 / 2,0 ml | 44 × 1,5/2,0 ml; 12 × 5 ml | 44 × 1,5/2,0 ml; 12 × 5 ml |
Cooling | Air cooling | -20° to 40°C, increments of 1°C | Air cooling | |
Operating time | Short Spin, from 10 sec. to 99 hr 59 min 59 sec. or in continuous mode | from 10 sec. to 99 hr 99 min 59 sec. or in continuous mode |
from 10 sec. to 99 hr 99 min 59 sec. or in continuous mode |
|
Noise level [dB(A)] [depends of rotor] |
≤ 60 | ≤60±2 | ≤ 57 + 2 | ≤ 60 + 2 |
programs memory | 99 | |||
Number of compatible rotors | 3 - hematocrit rotor, 24 × capillaries; Angular 24 x 1,5 ml / 2,0 ml; ; Angular 24 x 1,5 ml / 2,0 ml with reusable locking device | 3 - hematocrit rotor, 24 × capillaries; Angular 24 x 1,5 ml / 2,0 ml; (included) ; Angular 24 x 1,5 ml / 2,0 ml with reusable locking device | 7- Angular 30 x 1,5 ml / 2,0 ml with reusable lock; Angular 44 x 1,5 ml / 2,0 ml; Hematocrit rotor, 24 × capillaries; Angular 12 x 5 ml z with reusable lock; Angular 24 x 1,5 ml / 2,0 ml; Angular 24 x 1,5 ml / 2,0 ml with reusable lock; Angular 4 x 8 Place PCR strips | 7 - Angular 30 x 1,5 ml / 2,0 ml with reusable lock; Angular 44 x 1,5 ml / 2,0 ml; Hematocrit rotor, 24 × capillaries; Angular 12 x 5 ml with reusable lock; Angular 24 x 1,5 ml / 2,0 ml; Angular24 x 1,5 ml / 2,0 ml with reusable lock; Angular 4 x 8 Place PCR strips |
Level of acceleration / deceleration | 10 | |||
Dimensions [W × D × H] |
277 × 356 × 236 | 277 × 356 × 236 | 287 × 561 × 292 | 287 × 393 × 292 |
Display | Backlit LCD, 2 lines | |||
Catalog no | 30393187 | 30370691 | 30130868 | 30130866 |
Model | Speed range [rpm] |
---|---|
FC5513 | 200–13500 |
FC5513+R01 | 200-13500 |
FC5515R | 200–15200 |
FC5515 | 200–15200 |
