Fireproof cabinet S-CLASSIC-90 with a width of 60 cm and height of 196 cm
Choose Models for offer request
Intended
- GS certificate
- Air channels
- Swing door
- Cylinder lock
- Wide range of optional equipment
- Easy access to bins
- Completely visible cabinet interior
- Easy assembly
- Robust construction
- High resistance to damage
Characteristic
Available Models
S-CLASSIC-90 safety cabinets with a height of 196 cm and a width of 60 cm are used for unrestricted storage of flammable dangerous substances in the workplace in accordance with EN 14470-1 and TRGS 510, featuring 90-minute fire resistance.
These cabinets are GS-certified thanks to the innovations used, providing an excellent technical solution. Built-in air ducts allow connection to an extraction system. All containers inside of the cabinet are easily accessible, making the equipment ergonomic and functional.
The integrated adjustment in the base of the cabinet allows for easy and quick positioning on uneven ground. The construction of the cabinet is extremely durable, and the surface is resistant to mechanical scratches.
The cabinet has a classic wing door, equipped with a cylinder lock can be opened almost effortlessly. The optional door locking mechanism allows convenient and safe storage and removal of containers with both hands.

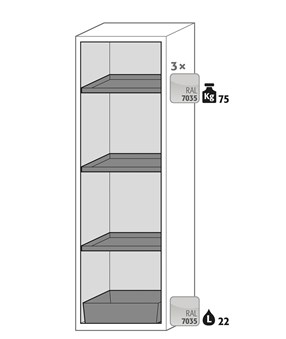

Available interior equipment:
- Shelves made of powder-coated sheet metal with a load capacity of 75 kg
- Shelves made of stainless steel with a load capacity of 75 kg
- Trays made of powder-varnished sheet metal with a load capacity of 150 kg and 11.5 l
- Stainless steel trays with a load capacity of 150 kg and 11.5 l
- Polypropylene trays, load capacity 50 kg and capacity 11 l
- Perforated insert from powder-coated sheet metal with a load capacity of 75 kg
- Perforated insert made of stainless steel with load capacity of 75 kg
- Sump tray made of powder-varnished sheet metal with a capacity of 22 or 33 l
- Stainless steel sump tray with 22 or 33 litre capacity
- 11 litre polypropylene sump tray
- Powder coated sheet metal drawers with 25 kg load capacity and 4.5 l capacity*.
- Stainless steel drawers with a load capacity of 25 kg and 4.5 l*.
*for models with door locking mechanism
Note!!!
When submitting an inquiry, we would very much appreciate it if you could include information about the selected cabinet configuration (example configuration number: 30115-001-33715).
We would like to remind you that the given number already includes information about the color of the cabinet (the three middle digits of the configuration number).
Thank you in advance :)
Dane techniczne:
Model | Cabinet type | External dimentions (W x D x H) [mm] |
Internal dimentions (W x D x H) [mm] |
Weight [kg] |
Minimum amount of exhaust air (10 times) [m³/h] |
Maximum weight load [kg] |
Colors |
S90.196.060 (with left hand door) |
90 | 596 x 616 x 1968 | 450 x 524 x 1742 | 281 | 4 | 600 | light grey, yellow |
S90.196.060.WDAS (with door locking mechanism) |
90 | 596 x 616 x 1968 | 450 x 524 x 1742 | 281 | 4 | 600 | light grey, yellow |
S90.196.060.R (with right hand door) |
90 | 596 x 616 x 1968 | 450 x 524 x 1742 | 281 | 4 | 600 | light grey, yellow |
S90.196.060.WDASR (with right hand door and door locking mechanism) |
90 | 596 x 616 x 1968 | 450 x 524 x 1742 | 281 | 4 | 600 | light grey, yellow |

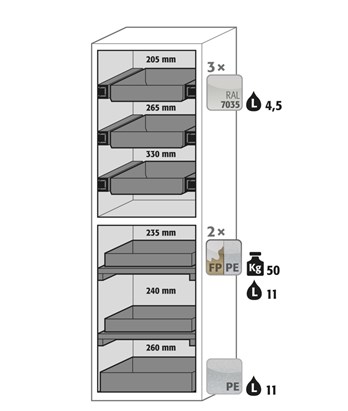

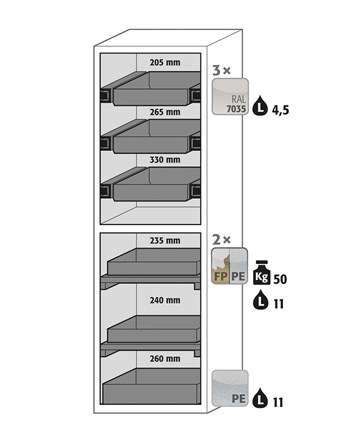

S90.196.060.MH.WDAS (with door locking mechanism) and horizontal division into two chambers |
90 | 596 x 616 x 1968 | top chamber: 450 x 524 x 877 bottom chamber: 450 x 524 x 845 |
299,5 | 4 | 600 | light grey, yellow |
S90.196.060.MH.WDASR (with right-hand door, and door locking mechanism; horizontal division into two chambers) |
90 | 596 x 616 x 1968 | top chamber: 450 x 524 x 877 bottom chamber: 450 x 524 x 845 |
299,5 | 4 | 600 | light grey |
Color code:
xxxx-001-xxxxx - light grey
xxxx-002-xxxxx - yellow
Internal equipment configurations:
S90.196.060 | |||
30227-001-30256 (light grey) 30227-002-30256 (yellow) |
30227-001-30257 (light grey) 30227-002-30257 (yellow) |
30227-001-30258 (light grey) 30227-002-30258 (yellow) |
30227-001-30259 (light grey) 30227-002-30259 (yellow) |
2 shelves perforated cartridge sump (made of stainless steel) |
3 shelves perforated cartridge sump (made of stainless steel) |
4 shelves perforated cartridge sump (made of stainless steel) |
2 shelves sump (made of stainless steel) |
30227-001-30260 (light grey) 30227-002-30260 (yellow) |
30227-001-30261 (light grey) 30227-002-30261 (yellow) |
30227-001-30262 (light grey) 30227-002-30262 (yellow) |
30227-001-30263 (light grey) 30227-002-30263 (yellow) |
3 shelves sump (made of stainless steel) |
4 shelves sump (made of stainless steel) |
2 tray shelves perforated cartridge sump (made of stainless steel) |
3 tray shelves perforated cartridge sump (made of stainless steel) |
30227-001-30264 (light grey) 30227-002-30264(yellow) |
30227-001-30265 (light grey) 30227-002-30265(yellow) |
30227-001-30266 (light grey) 30227-002-30266(yellow) |
30227-001-33659 (light grey) 30227-002-33659(yellow) |
2 tray shelves sump (made of polypropylene) |
3 tray shelves sump (made of polypropylene) |
4 tray shelves sump (made of polypropylene) |
3 shelves perforated cartridge sump (made of powder coated steel plate) |
30227-001-33660 (light grey) 30227-002-33660(yellow) |
30227-001-33661 (light grey) 30227-002-33661(yellow) |
30227-001-33662 (light grey) 30227-002-33662(yellow) |
30227-001-33663 (light grey) 30227-002-33663(yellow) |
4 shelves perforated cartridge sump (made of powder coated steel plate) |
3 shelves sump (made of powder coated steel plate) |
4 shelves sump (made of powder coated steel plate) |
3 tray shelves perforated cartridge sump (made of powder coated steel plate) |
S90.196.060.WDAS | |||
30288-001-30256 (light grey) 30288-002-30256(yellow) |
30288-001-30257 (light grey) 30288-002-30257(yellow) |
30288-001-30258 (light grey) 30288-002-30258(yellow) |
30288-001-30259 (light grey) 30288-002-30259(yellow) |
2 shelves perforated cartridge sump (made of stainless steel) |
3 shelves perforated cartridge sump (made of stainless steel) |
4 shelves perforated cartridge sump (made of stainless steel) |
2 shelves sump (made of stainless steel) |
30288-001-30260 (light grey) 30288-002-30260(yellow) |
30288-001-30261 (light grey) 30288-002-30261(yellow) |
30288-001-30262 (light grey) 30288-002-30262(yellow) |
30288-001-30263 (light grey) 30288-002-30263(yellow) |
3 shelves (made of stainless steel) |
4 shelves sump (made of stainless steel) |
2 tray shelves perforated cartridge sump (made of stainless steel) |
3 tray shelves perforated cartridge sump (made of stainless steel) |
30288-001-30264 (light grey) 30288-002-30264(yellow) |
30288-001-30265 (light grey) 30288-002-30265(yellow) |
30288-001-30266 (light grey) 30288-002-30266(yellow) |
30288-001-33659 (light grey) 30288-002-33659(yellow) |
2 tray shelves sump (made of polypropylene) |
3 tray shelves sump (made of polypropylene) |
4 tray shelves sump (made of polypropylene) |
3 shelves perforated cartridge sump (made of powder coated steel plate) |
30288-001-33660 (light grey) 30288-002-33660(yellow) |
30288-001-33661 (light grey) 30288-002-33661(yellow) |
30288-001-33662 (light grey) 30288-002-33662(yellow) |
30288-001-33663 (light grey) 30288-002-33663(yellow) |
4 shelves perforated cartridge sump (made of powder coated sheet metal) |
3 shelves sump (made of powder coated steel plate) |
4 shelves sump (made of powder coated steel plate) |
3 tray shelves perforated cartridge sump (made of powder coated steel plate) |
30288-001-33681 (light grey) 30288-002-33681(yellow) |
30288-001-33682 (light grey) 30288-002-33682(yellow) |
30288-001-33683 (light grey) 30288-002-33683(yellow) |
30288-001-33684 (light grey) 30288-002-33684(yellow) |
4 drawers (made of powder coated steel plate) |
5 drawers (made of powder coated steel plate) |
6 drawers (made of powder coated steel plate) |
3 drawers 1 disposal drawer (made of powder coated steel plate) |
30288-001-33685 (light grey) 30288-002-33685(yellow) |
30288-001-33686 (light grey) 30288-002-33686(yellow) |
30288-001-33687 (light grey) 30288-002-33687(yellow) |
30288-001-33688 (light grey) 30288-002-33688(yellow) |
4 drawers 1 disposal drawer (made of powder coated steel plate) |
4 drawers (made of stainless steel) |
5 drawers (made of stainless steel) |
6 drawers (made of stainless steel) |
30288-001-33689 (light grey) 30288-002-33689(yellow) |
30288-001-33690 (light grey) 30288-002-33690(yellow) |
3 drawers 1 disposal drawer (made of stainless steel) |
4 drawers 1 disposal drawer (made of stainless steel) |
S90.196.060.R | |||
30229-001-33451 30229-002-33451 |
30229-001-33452 30229-002-33452 |
30229-001-33453 30229-002-33453 |
30229-001-33454 30229-002-33454 |
3 shelves perforated cartridge sump (made of stainless steel) |
4 shelves perforated cartridge sump (made of stainless steel) |
2 shelves sump (made of stainless steel) |
3 shelves sump (made of stainless steel) |
30229-001-33455 30229-002-33455 |
30229-001-33456 30229-002-33456 |
30229-001-33457 30229-002-33457 |
30229-001-33458 30229-002-33458 |
4 shelves sump (made of stainless steel) |
2 tray shelves perforated cartridge sump (made of stainless steel) |
3 tray shelves perforated cartridge sump (made of stainless steel) |
2 tray shelves sump (made of polypropylene) |
30229-001-33459 30229-002-33459 |
30229-001-33460 30229-002-33460 |
30229-001-34386 30229-002-34386 |
30229-001-34387 30229-002-34387 |
3 tray shelves sump (made of polypropylene) |
4 tray shelves sump (made of polypropylene) |
3 tray shelves sump (made of powder coated steel plate) |
3 shelves perforated cartridge sump (made of powder coated steel plate) |
30229-001-34388 30229-002-34388 |
30229-001-34389 30229-002-34389 |
30229-001-34390 30229-002-34390 |
30229-001-34391 30229-002-34391 |
4 shelves perforated cartridge sump (made of powder coated steel plate) |
3 shelves sump (made of powder coated steel plate) |
4 shelves sump (made of powder coated steel plate) |
3 tray shelves perforated cartridge sump (made of powder coated steel plate) |
S90.196.060.WDASR | |||
30230-001-33451 30230-002-33451 |
30230-001-33452 30230-002-33452 |
30230-001-33453 30230-002-33453 |
30230-001-33454 30230-002-33454 |
3 shelves perforated cartridge sump (made of stainless steel) |
4 shelves perforated cartridge sump (made of stainless steel) |
2 shelves sump (made of stainless steel) |
3 shelves sump (made of stainless steel) |
30230-001-33455 30230-002-33455 |
30230-001-33456 30230-002-33456 |
30230-001-33457 30230-002-33457 |
30230-001-33458 30230-002-33458 |
4 shelves sump (made of stainless steel) |
2 tray shelves perforated cartridge sump (made of stainless steel) |
3 tray shelves perforated cartridge sump (made of stainless steel) |
2 tray shelves sump (made of polypropylene) |
30230-001-33459 30230-002-33459 |
30230-001-33460 30230-002-33460 |
30230-001-34386 30230-002-34386 |
30230-001-34387 30230-002-34387 |
3 tray shelves sump (made of polypropylene) |
4 tray shelves sump (made of polypropylene) |
3 tray shelves sump (made of powder coated steel plate) |
3 tray shelves perforated cartridge sump (made of powder coated steel plate) |
30230-001-34388 30230-002-34388 |
30230-001-34389 30230-002-34389 |
30230-001-34390 30230-002-34390 |
30230-001-34391 30230-002-34391 |
4 tray shelves perforated cartridge sump (made of powder coated steel plate) |
3 shelves sump (made of powder coated steel plate) |
4 shelves sump (made of powder coated steel plate) |
3 tray shelves perforated cartridge sump (made of powder coated steel plate) |
30230-001-34392 30230-002-34392 |
30230-001-34393 30230-002-34393 |
30230-001-34394 30230-002-34394 |
30230-001-34395 30230-002-34395 |
4 drawers (made of powder coated steel plate) |
5 drawers (made of powder coated steel plate) |
6 drawers (made of powder coated steel plate) |
3 drawers 1 disposal drawer (made of powder coated steel plate) |
30230-001-34396 30230-002-34396 |
30230-001-34397 30230-002-34397 |
30230-001-34398 30230-002-34398 |
30230-001-34399 30230-002-34399 |
4 drawers 1 disposal drawer (made of powder coated steel plate) |
4 drawers (made of stainless steel) |
5 drawers (made of stainless steel) |
6 drawers (made of stainless steel) |
30230-001-34400 30230-002-34400 |
30230-001-34401 30230-002-34401 |
3 drawers 1 disposal drawer (made of stainless steel) |
4 drawers 1 disposal drawer (made of stainless steel) |
S90.196.060.MH.WDAS | |||
30353-001-30355 30353-002-30355 |
30353-001-33835 30353-002-33835 |
30353-001-33836 30353-002-33836 |
30353-001-33837 30353-002-33837 |
2 shelves perforated cartridge sump (made of stainless steel) 2 trey shelves sump (made of polypropylene) |
2 shelves perforated cartridge sump (made of powder coated sheet metal) 2 trey shelves sump (made of polypropylene) |
2 shelves sump (made of polypropylen) 2 drawers (made of powder coated steel plate) |
2 shelves sump (made of polypropylen) 3 drawers (made of powder coated steel plate) |
S90.196.060.MH.WDASR | |||
33823-001-33489 | 33823-001-34423 | 33823-001-34424 | 33823-001-34425 |
2 shelves perforated cartridge sump (made of stainless steel) 2 trey shelves sump (made of polypropylene) |
2 shelves perforated cartridge sump (made of powder coated steel plate) 2 trey shelves sump (made of polypropylene) |
2 shelves sump (made of polypropylen) 2 drawers (made of powder coated steel plate) |
2 shelves sump (made of polypropylen) 3 drawers (made of powder coated steel plate) |
Model | Other |
---|---|
S90.196.060 | Standard cabinet with left hand door |
S90.196.060.WDAS | cabinet with door locking mechanism |
S90.196.060.R | standard cabinet with right hand door |
S90.196.060.WDASR | cabinet with door locking mechanism and right hand door |
S90.196.060.MH.WDAS | cabinet with door locking mechanism, left hand doors and horisontal split |
S90.196.060.MH.WDASR | cabinet with door locking mechanism, right hand doors and horizontal split |
Check also
