Fireproof cabinet S-CLASSIC-90 with a width of 60 cm and a height of 129 cm| Danlab

Choose Models for offer request

Intended

  • GS certificate
  • Air channels
  • Swing door
  • Cylinder lock
  • Wide range of optional equipment
  • Easy access to bins
  • Completely visible cabinet interior
  • Easy assembly
  • Decent construction
  • High resistance to damage

S-CLASSIC-90 safety cabinets with a height of 129 cm and a width of 60 cm are used for unrestricted storage of flammable hazardous substances in the workplace in accordance with EN 14470-1 and TRGS 510, featuring 90-minute fire resistance.

These cabinets are GS-certified thanks to the innovations used, providing an excellent technical solution. Built-in air ducts allow connection to an extraction system. All containers inside the cabinet are easily accessible, making the equipment ergonomic and functional.

The integrated adjustment in the base of the cabinet allows for easy and quick positioning on uneven ground. The construction of the cabinet is extremely solid, and the surface is resistant to mechanical scratches.

The cabinet has a classic wing door, equipped with a cylinder lock can be opened almost effortlessly. The optional door locking mechanism allows convenient and safe storage and removal of containers with both hands.


Available internal equipment:

  • powder-coated sheet metal shelves with a load capacity of 75 kg
  • stainless steel shelves with a load capacity of 75 kg
  • trays of powder-coated sheet metal with a load capacity of 150 kg and a capacity of 11.5 l
  • stainless steel trays with a load capacity of 150 kg and 11.5 l
  • polypropylene trays, load capacity 50 kg and capacity 11 l
  • perforated insert from powder-coated sheet metal with a load capacity of 75 kg
  • perforated insert made of stainless steel with load capacity of 75 kg
  • Sump tray made of powder-varnished sheet metal with a capacity of 22 or 33 l
  • Stainless steel sump tray with 22 or 33 litre capacity
  • 11 litre polypropylene sump tray
  • Powder coated sheet metal drawers with 25 kg load capacity and 4.5 l capacity*.
  • stainless steel drawers with a load capacity of 25 kg and 4.5 l*.

*for models with door lock mechanism


Attention!!!

When submitting an inquiry, we would very much appreciate it if you include information about the selected cabinet configuration (example configuration number: 30115-001-33715).
We would like to remind you that the given number already includes information about the color of the cabinet (the three middle digits of the configuration number).

Thank you in advance :)

Technical data:

Model Cabinet type External dimentions
(W x D x H)
[mm]
Internal dimentions
(W x D x H)
[mm]
Weight
[kg]
Minimum amount of exhaust air (10 times)
[m³/h]
Maximum load weight
[kg]
Colors
S90.129.060
(standard cabinet)
90 596 x 616 x 1298 450 x 524 x 1072 199 3 600 light grey, yellow
S90.129.060.WDAS
(with door locking mechanism)
90 596 x 616 x 1298 450 x 524 x 1072 199 3 600  light grey, yellow
S90.129.060.R
(with right hand doors)
90 596 x 616 x 1298 450 x 524 x 1072 199 3 600  light grey, yellow
S90.129.060.WDASR
(with right hand doors and with door locking mechanism)
90 596 x 616 x 1298 450 x 524 x 1072 199 3 600  light grey, yellow


Color code:

xxxx-001-xxxxx - light grey
xxxx-002-xxxxx - yellow



Interior equipment configuration:

S90.129.060
30238-001-30283
30238-002-30283
30238-001-30284
30238-002-30284
30238-001-30285
30238-002-30285
30238-001-30286
30238-002-30286

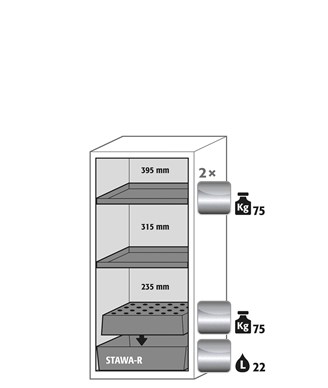

2 shelves
perforated cartridge
sump
(made of stainless steel)

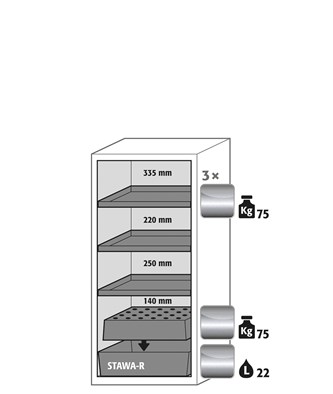

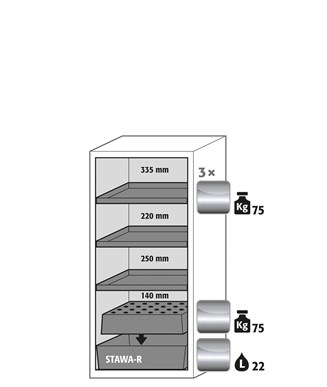

3 shelves
perforated cartridge
sump
(made of stainless steel)

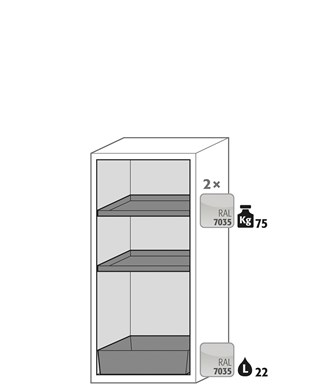

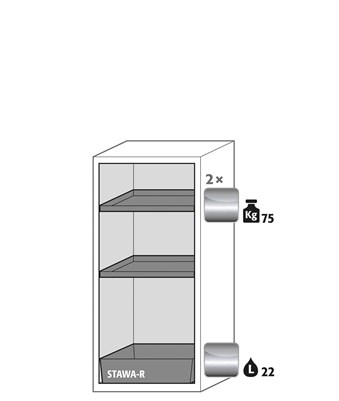

2 shelves
sump
(made of stainless steel)

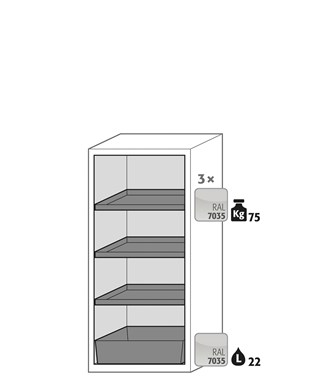

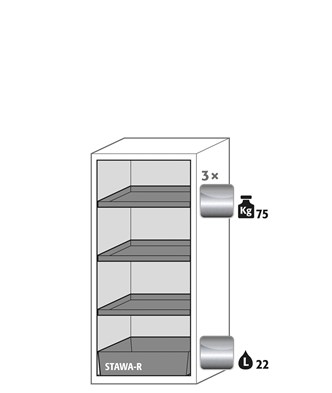

3 shelves
sump
(made of stainless steel)
30238-001-30287
30238-002-30287
30238-001-30289
30238-002-30289
30238-001-30290
30238-002-30290
30238-001-33735
30238-002-33735

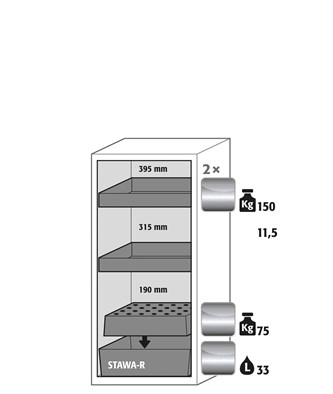

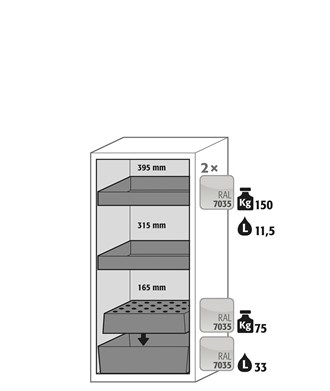

2 tray shelves
perforated cartridge
sump
(made of stainless steel)

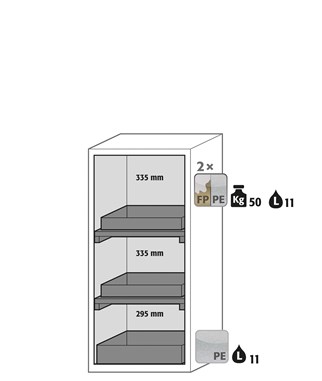

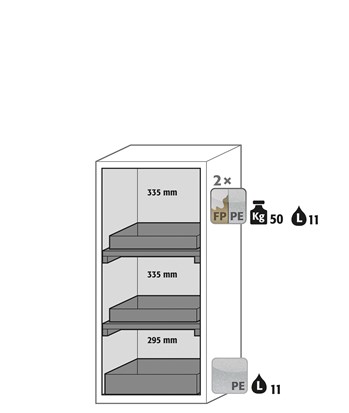

2 tray shelves
sump
(made of polypropylene)

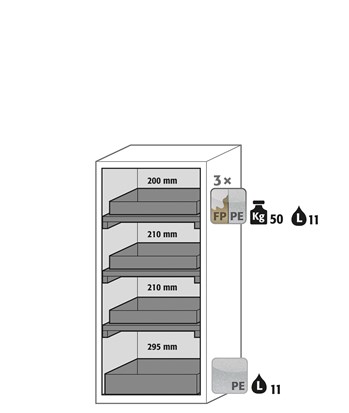

3 tray shelves
sump
(made of polypropylene)
2 shelves
perforated cartridge
sump
(made of powder coated steel plate)
30238-001-33736
30238-002-33736
30238-001-33737
30238-002-33737
30238-001-33738
30238-002-33738
30238-001-33739
30238-002-33739

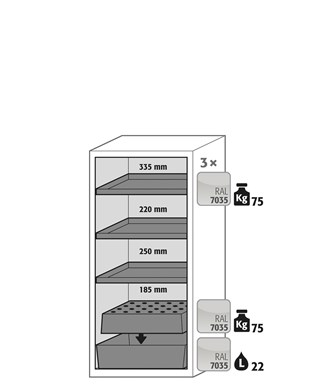

3 shelves
perforated cartridge
sump
(made of powder coated steel plate)

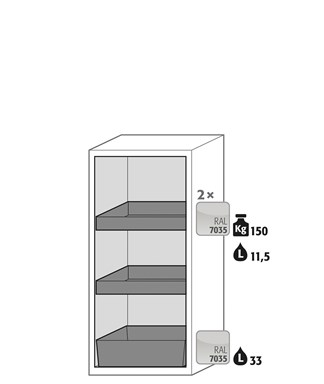

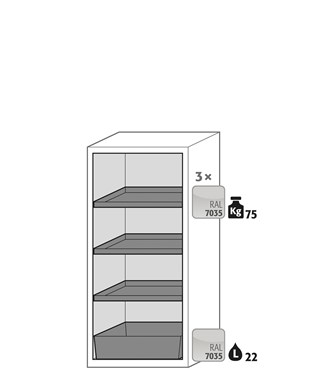

2 shelves
sump
(made of powder coated steel plate)
3 shelves
sump
(made of powder coated steel plate)
2 tray shelves
perforated cartridge
sump
(made of powder coated steel plate)
30239-001-34255
30239-002-34255

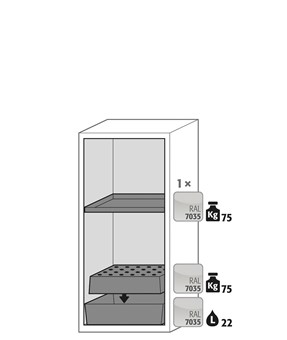

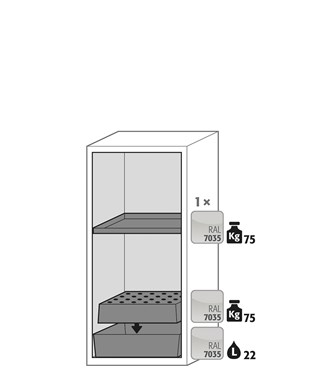

1 shelf
perforated cartridge
sump
(made of powder coated steel plate)


S90.129.060.WDAS
30239-001-30283
30239-002-30283
30239-001-30284
30239-002-30284
30239-001-30285
30239-002-30285
30239-001-30286
30239-002-30286

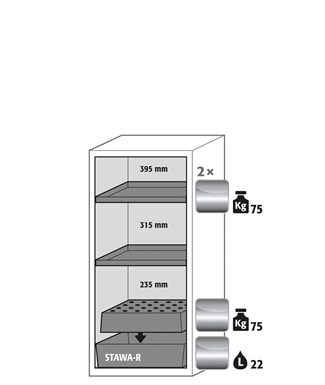

2 shelves
perforated cartridge
sump
(made of stainless steel)
3 shelves
perforated cartridge
sump
(made of stainless steel)
2 shelves
sump
(made of stainless steel)
3 shelves
sump
(made of stainless steel)
30239-001-30287
30239-002-30287
30239-001-30289
30239-002-30289
30239-001-30290
30239-002-30290
30239-001-33735
30239-002-33735
2 tray shelves
perforated cartridge
sump
(made of stainless steel)
2 tray shelves
sump
(made of polypropylene)
3 tray shelves
sump
(made of polypropylene)
2 shelves
perforated cartridge
sump
(made of powder coated steel plate)
30239-001-33736
30239-002-33736
30239-001-33737
30239-002-33737
30239-001-33738
30239-002-33738
30239-001-33739
30239-002-33739
3 shelves
perforated cartridge
sump
(made of powder coated steel plate)
2 shelves
sump
(made of powder coated steel plate)
3 shelves
sump
(made of powder coated steel plate)
2 tray shelves
perforated cartridge
sump
(made of powder coated steel plate)
30239-001-33740
30239-002-33740
30239-001-33741
30239-002-33741
30239-001-33742
30239-002-33742
30239-001-33743
30239-002-33743

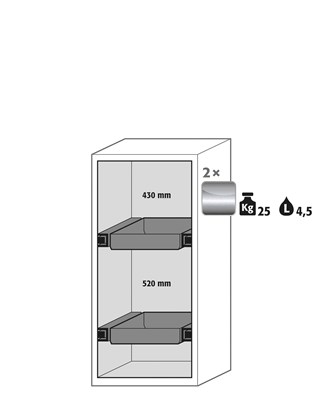

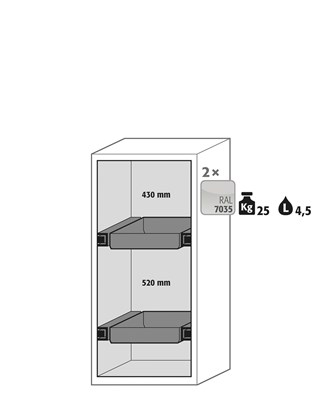

2 drawers
(made of powder coated steel plate)

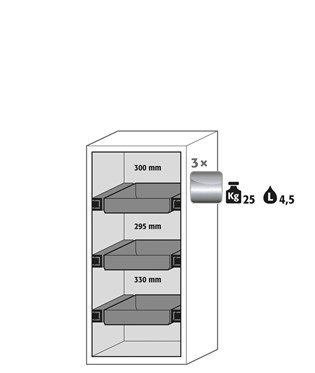

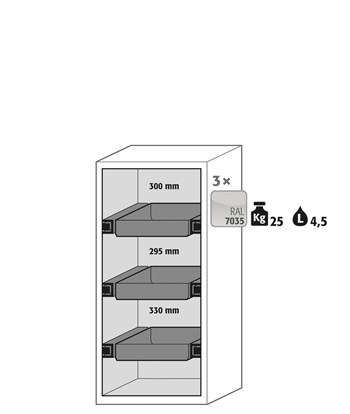

3 drawers
(made of powder coated steel plate)
2 drawers
(made of stainless steel)
3 drawers
(made of stainless steel)
30239-001-34255
30239-002-34255
1 shelf
perforated cartridge
sump
(made of powder coated steel plate)


S90.129.060.R
30240-001-33499
30240-002-33499
30240-001-33500
30240-002-33500
30240-001-33501
30240-002-33501
30240-001-33502
30240-002-33502
2 shelves
perforated cartridge
sump
(made of stainless steel)
3 shelves
perforated cartridge
sump
(made of stainless steel)
2 shelves
sump
(made of stainless steel)
3 shelves
sump
(made of stainless steel)
30240-001-33503
30240-002-33503
30240-001-33505
30240-002-33505
30240-001-33506
30240-002-33506
30240-001-34412
30240-002-34412
2 tray shelves
perforated cartridge
sump
(made of stainless steel)
2 shelves
sump
(made of polypropylene)
3 shelves
sump
(made of polypropylene)
2 tray shelves
sump
(made of powder coated steel plate)
30240-001-34413
30240-002-34413
30240-001-34414
30240-002-34414
30240-001-34415
30240-002-34415
30240-001-34416
30240-002-34416
2 tray shelves
perforated cartridge
sump
(made of powder coated steel plate)
3 tray shelves
perforated cartridge
sump
(made of powder coated steel plate)
2 shelves
sump
(made of powder coated steel plate)
3 shelves
sump
(made of powder coated steel plate)
30240-001-34417
30240-002-34417
30240-001-34422
30240-002-34422
2 tray shelves
perforated cartridge
sump
(made of powder coated steel plate)
1 shelf
perforated cartridge
sump
(made of stainless steel)





S90.129.060.WDASR
30241-001-33499
30241-002-33499
30241-001-33500
30241-002-33500
30241-001-33501
30241-002-33501
30241-001-33502
30241-002-33502
2 shelves
perforated cartridge
sump
(made of stainless steel)
3 shelves
perforated cartridge
sump
(made of stainless steel)
2 shelves
sump
(made of stainless steel)
3 shelves
sump
(made of stainless steel)
30241-001-33503
30241-002-33503
30241-001-33505
30241-002-33505
30241-001-33506
30241-002-33506
30241-001-34412
30241-002-34412
2 tray shelves
perforated cartridge
sump
(made of stainless steel)
2 shelves
sump
(made of polypropylene)
3 shelves
sump
(made of polypropylene)
2 tray shelves
sump
(made of powder coated steel plate)
30241-001-34413
30241-002-34413
30241-001-34414
30241-002-34414
30241-001-34415
30241-002-34415
30241-001-34416
30241-002-34416
2 tray shelves
perforated cartridge
sump
(made of powder coated steel plate)
3 tray shelves
perforated cartridge
sump
(made of powder coated steel plate)
2 shelves
sump
(made of powder coated steel plate)
3 shelves
sump
(made of powder coated steel plate)
30241-001-34417
30241-002-34417
30241-001-34418
30241-002-34418
30241-001-34419
30241-002-34419
30241-001-34420
30241-002-34420
2 tray shelves
perforated cartridge
sump
(made of powder coated steel plate)
1 shelf
perforated cartridge
sump
(made of stainless steel)

3 drawers
(made of powder coated steel plate)
2 drawers
(made of stainless steel)
30241-001-34421
30241-002-34421
30241-001-34422
30241-002-34422
3 drawers
(made of stainless steel)
1 shelf
perforated cartridge
sump
(made of powder coated steel plate)







Model Other
S90.129.060 standard cabinet with left hand door
S90.129.060.WDAS cabinet with door locking mechanism and left hand doors
S90.129.060.R standard cabinet with right hand doors
S90.129.060.WDASR cabinet with door locking mechanism, with right hand doors
