Portable pH meter 206 - pH1 and pH2

Choose Models for offer request

Intended

TESTO 206

  • Automatic compensation thanks to integrated temperature probe

  • Gel electrode - maintenance-free

  • Measuring ranges from 0 to 14 pH and 0 to +60 °C

  • Waterproof, hygienic - dishwasher safe IP68 - with TopSafe carrying case

  • The user can replace the electrode himself

The Testo 206 pH1 is a device for measuring the pH level in liquids.

The Testo 206 pH2 is a device for measuring the pH level in liquids and semi-solid / viscous products.



It is possible to purchase the Testo 206-pH1 and Testo 206-pH2 on their own or as a starter kit.

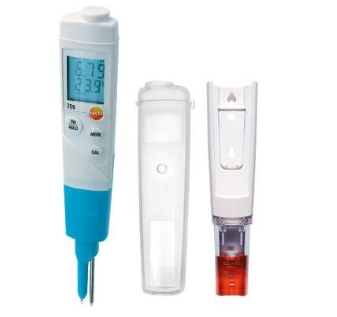

206-pH1 / 206-pH2 delivery includes:

-pHmeter 206-pH1 / pHmeter 206-ph2 respectively

-measuring electrode - gel capsule for electrode storage

-belt holder

-TopSafe

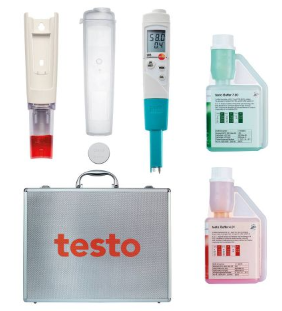

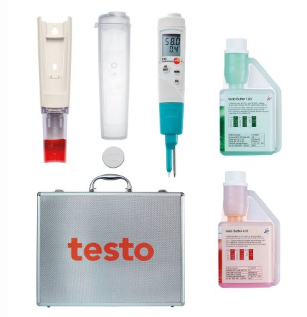

206-pH1 / 206-pH2 starter kit delivery includes:

- respectively pHmeter 206-pH1 / pHmeter 206-pH2 with universal probe

- gel container for electrode storage

- TopSafe carrying case

- wall holder

- pH4 and pH7 buffer

- aluminium case


Additional accessories can also be purchased:

Accessory 206-pH1:

- Spare pH electrode for testo 206-pH1 with storage gel container, cat.-no. 0650 2061

- Buffer solution for pH=4.01 calibration in dispensing bottle (250ml), cat.-no. 0554 2061

- Buffer solution for calibration pH=7.00 in dispensing bottle (250ml), cat.no.0554 2063

- KCL gel container for storage (testo 206-pH1, testo 206-pH2), cat.-no. 0554 2067



Accessory 206-pH2:

- Spare pH electrode for testo 206-pH2 with storage gel container, cat.-no. 0650 2062

- Buffer solution for pH=4.01 calibration in dispensing bottle (250ml), cat.no.0554 2061

- Buffer solution for calibration pH=7.00 in dispensing bottle (250ml), cat.no.0554 2063

- KCL gel container for storage (testo 206-pH1, testo 206-pH2), cat.-no. 0554 2067




TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

CATALOG NO

0563 2065

0563 2062

MODEL

206 - pH1

206 - pH2

TEMPERATURE MEASUREMENT - NTC

TEMPERATURE RANGE [°C]

FROM 0 TO +60 °C (SHORT-TERM UP TO +80)

ACCURACY [°C]

± 0,4

RESOLUTION [°C]

0,1

pH - ELECTRODE

MEASUREMENT RANGE pH

FROM 0 TO 14

ACCURACY pH

± 0,02

RESOLUTION pH

0,01

TECHNICAL SPECIFICATION

WEIGHT [g]

69

65

DIMENSIONS [mm]

197 x 33 x 20

110 x 33 x 20 (WITHOUT PROBE)

WORKING TEMPERATURE [°C]

FROM 0 TO +60 °C

HOUSING MATERIAL

ABS

PROTECTION CLASS

IP68

PRODUCT COLOR

WHITE

APPROVALS

CE 2014/30/EU

PROBE LENGTH [mm]

3,5
35

35

PROBE DIAMETRER [mm]

15

11

BATTERY TYPE

1 x BUTTON BATTERY (CR 2032)

BATTERY LIFE [h]

80 (AUTO-OFF 10 min)

DISPLAY

LCD

DISPALY SIZE

2-LINE DISPLAY

NUMBER OF CHANNELS

2-CHANNELS

MEASURING SPEED [s]

0,5

STORAGE TEMPERATURE [°C]

FROM -20 TO +70 °C

TEMPERATURE COMPENSATION

AUTO



Model Measurement range Work scope [° C] Other
206 - pH1 FROM 0 TO 14 pH / FROM 0 TO +60 °C FROM 0 TO +60 measuring the pH level of liquids
206 - pH2 FROM 0 TO 14 pH / FROM 0 TO +60 °C FROM 0 TO 60 measuring the pH level of liquids and semi-solid/liquid products
