Pocket pH ORP meter
Choose Models for offer request
Intended
- Easy calibration
- Auto-off function
- Two-level LCD display
- Battery type 4x1.5V or 3x1.5V
- pH/ORP measurement
Characteristic
Available Models

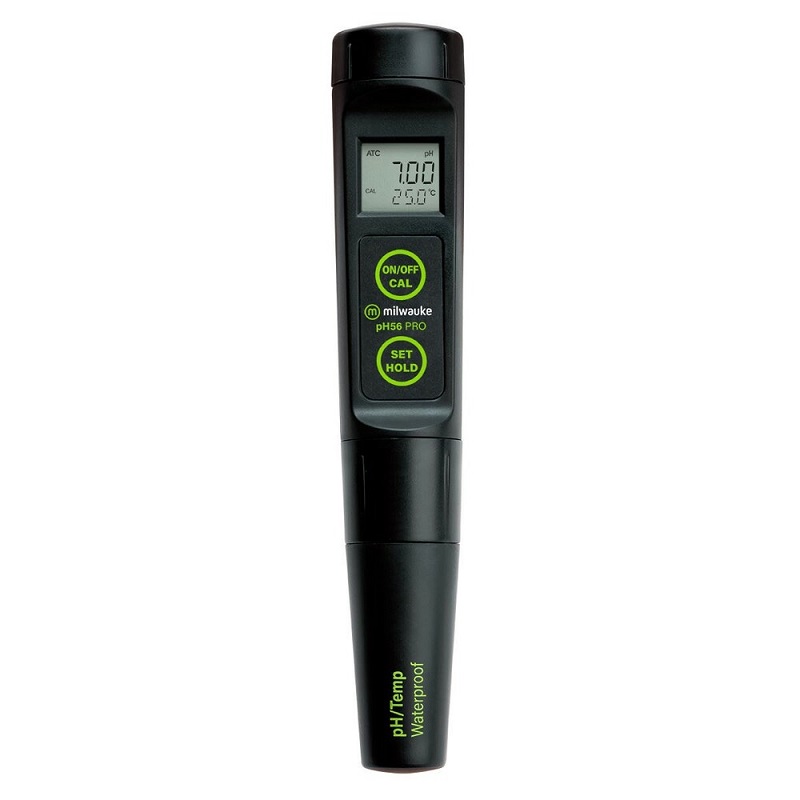

The waterproof pH meters (pH55 PRO, pH56 PRO, pH58 MAX, ORP57 PRO) are equipped with a two-level LCD display that, depending on the meter, shows the pH, temperature (ºC or F) or redox value. The meters have a stability indicator and a stop function for easy and accurate data reading. The pH58 MAX model allows simultaneous measurement of pH and redox. Calibration is automatic, 1 or 2 point with stored sets of reference buffers.
The pH51 and pH54 meters have a wood-tight housing and a replaceable electrode with a double connector, which also makes them suitable for applications such as wastewater treatment plants. Manual calibration extends battery life to 1,500 hours.
The modular design allows easy electrode and battery replacement.
Technical specifications:
| Model | pH55 PRO | pH56 PRO | pH58 MAX | ORP57 PRO | pH51 | pH54 | |
| Range | pH | -2,0 to 16,0 | -2,0 to 16,0 | -2,0 to 16,0 | - | 0,0 to 14,0 | 0,0 to 14,0 |
|
°C |
-5,0 to 60,0 | -5,0 to 60,0 | -5,0 to 60,0 | -5,0 to 60,0 | - | - | |
| ORP | - | - | +/-1000 mV | +/- 1000 mV | - | - | |
| Resolution | pH | 0,1 | 0,01 | 0,01 | - | 0,1 | 0,01 |
|
°C |
0,1 | 0,1 | 0,1 | 0,1 | - | - | |
| ORP | - | - | 1 mV | 1 mV | - | - | |
| Accuracy | pH | +/- 0,1 | +/- 0,05 | +/- 0,05 | - | +/- 0,1 | +/- 0,1 |
|
°C |
+/- 0,5 | +/- 0,5 | +/- 0,5 | +/- 0,5 | - | - | |
| ORP | - | - | +/-1 mV | +/-2mV | - | - | |
| Temperature compensation | auto | auto | auto | - | - | - | |
| Calibration | pH | auto, 1 or 2 points | auto, 1 or 2 points | auto, 1 or 2 points | - | manual, 1 or 2 points | manual, 1 or 2 points |
| ORP | - | - | Factory calibration | Factory calibration | - | - | |
| Sensor included | Mi56P | Mi56P | Mi58P | Mi57P | MA73600 | MA73600 | |
| Auto-off | after 8 min of rest | - | - | ||||
| Battery life | approx. 300 h of use | approx. 1500 h of use | |||||
| Dimensions | 200 x 38 | 165 x 30 x 30 | |||||
| Weight | 100 g | 80 g | |||||
| Model | Battery life |
|---|---|
| pH55 PRO | approx. 300 hours of use |
| pH56 PRO | approx. 300 hours of use |
| pH58 MAX | approx. 300 hours of use |
| ORP57 PRO | approx. 300 hours of use |
| pH51 | approx. 1500 hours of use |
| pH54 | approx. 1500 hours of use |
