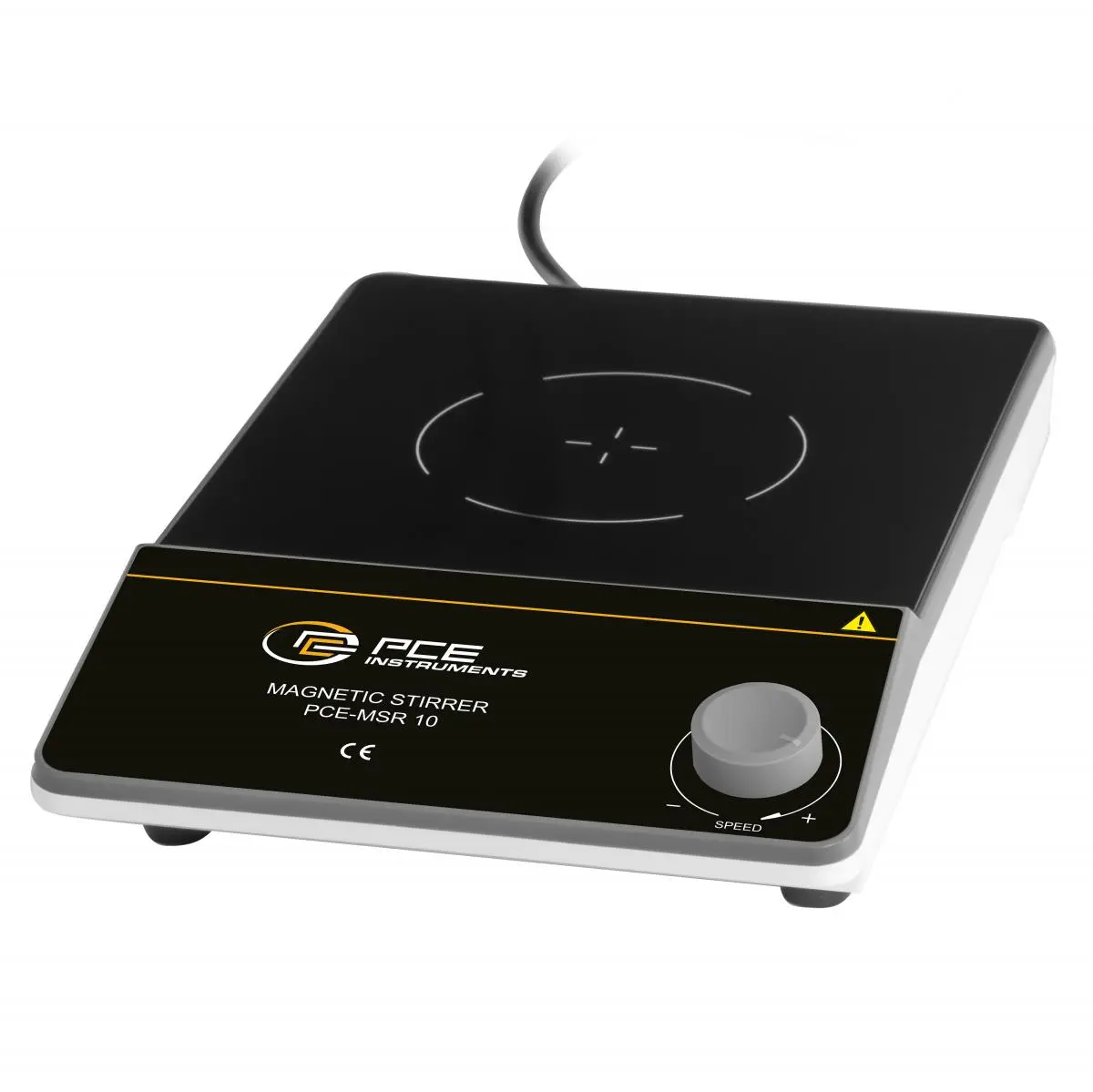

PCE-MSR magnetic stirrer |Danlab

Choose Models for offer request

PCE-MSR 10
PCE MSR 20

Product Sheet

Intended

- Mixing speed range from 200 to 1,600 rpm
- Acrylic glass worktop
- Magnetic stirring bar Ø 8 x 30 mm
- Maximum liquid capacity: 5 l
- Power supply: 100 to 240 V AC, 50/60 Hz

Characteristic
Available Models

Simple to use

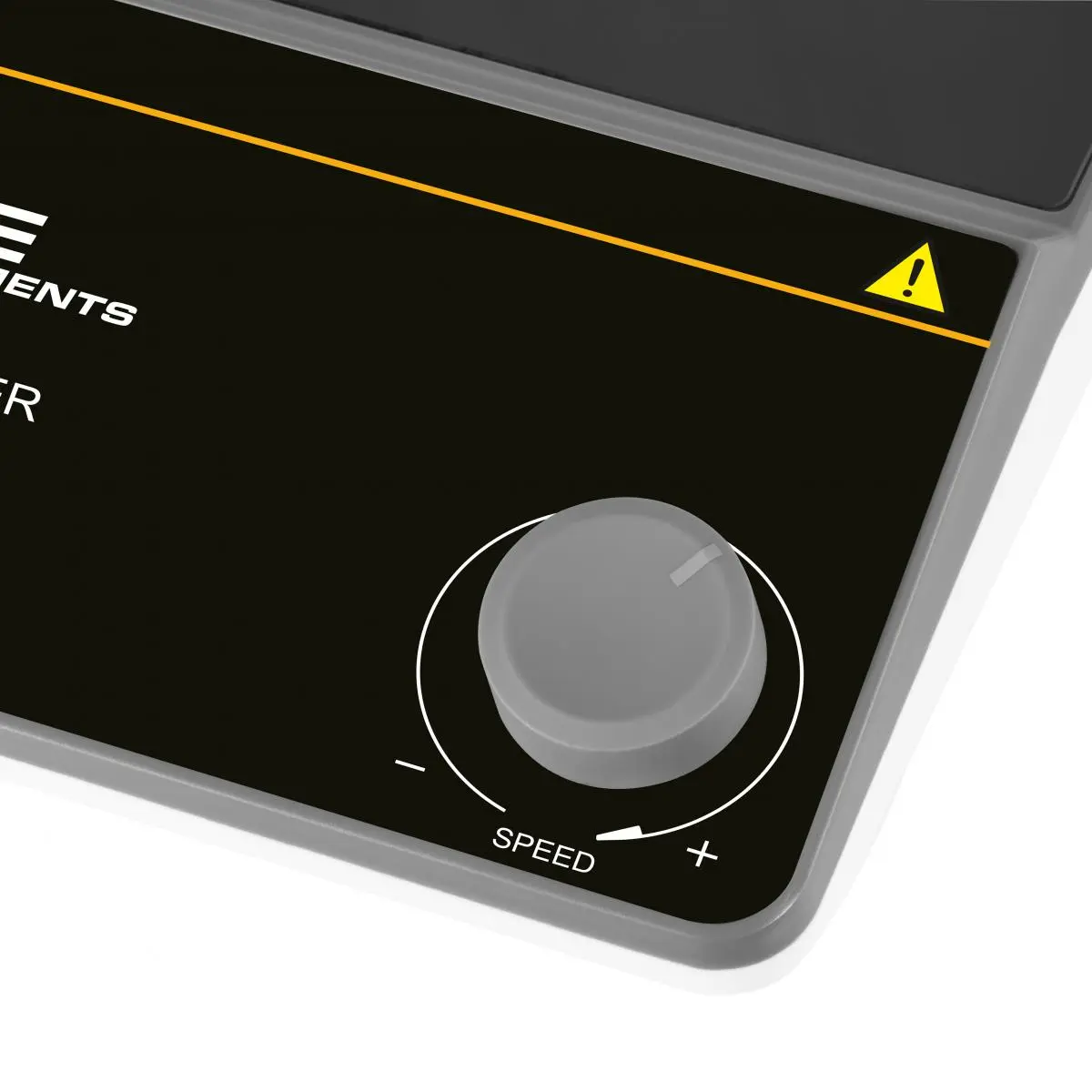

The proposed magnetic stirrer is an easy-to-use laboratory device that is used for effective, safe and reproducible mixing of liquids without heating. The magnetic stirrer has an adjustable stirring speed in the range from 200 to 1,600 rpm. /min and is suitable for volumes up to 5 L.

Excellent design

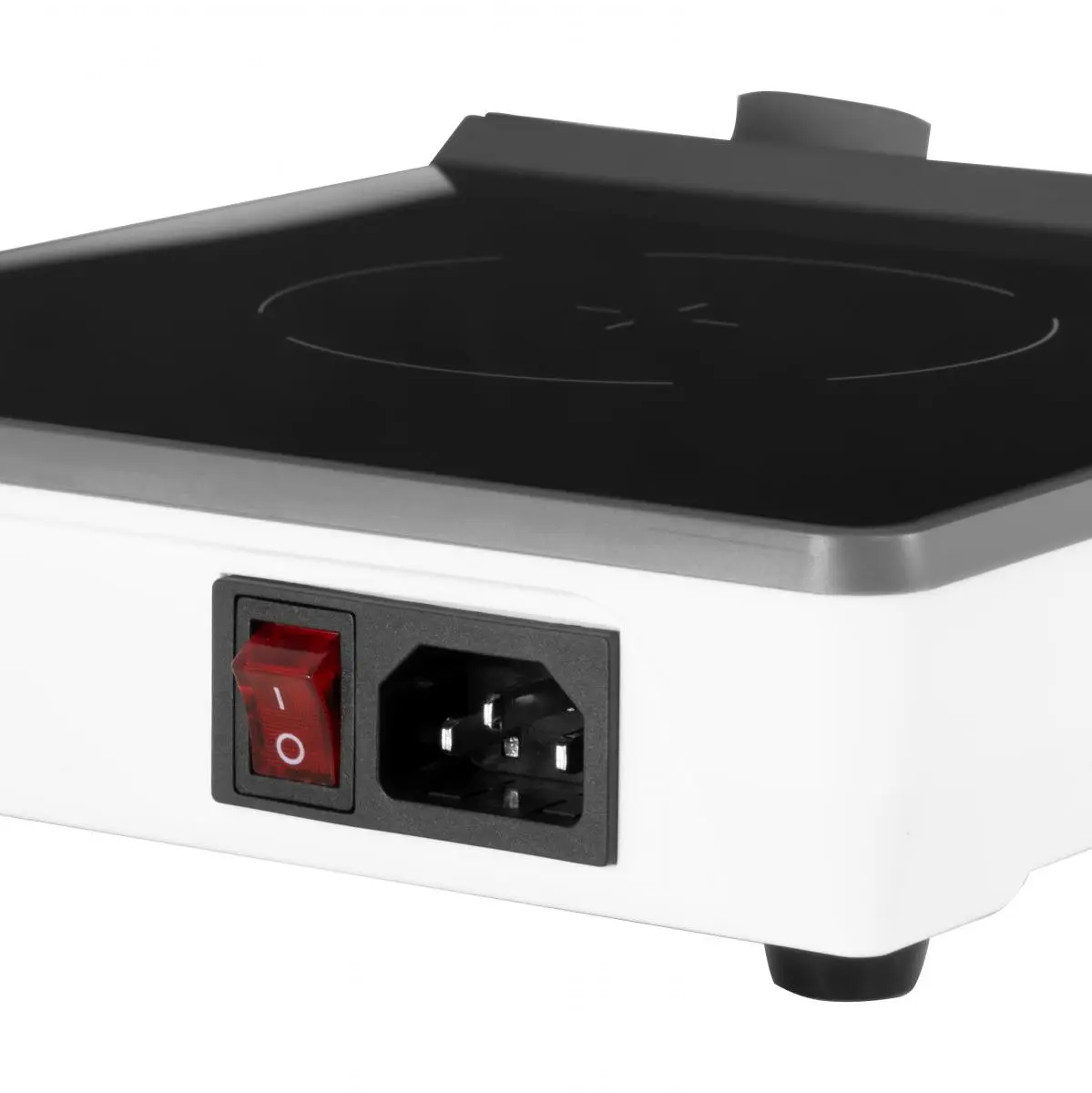

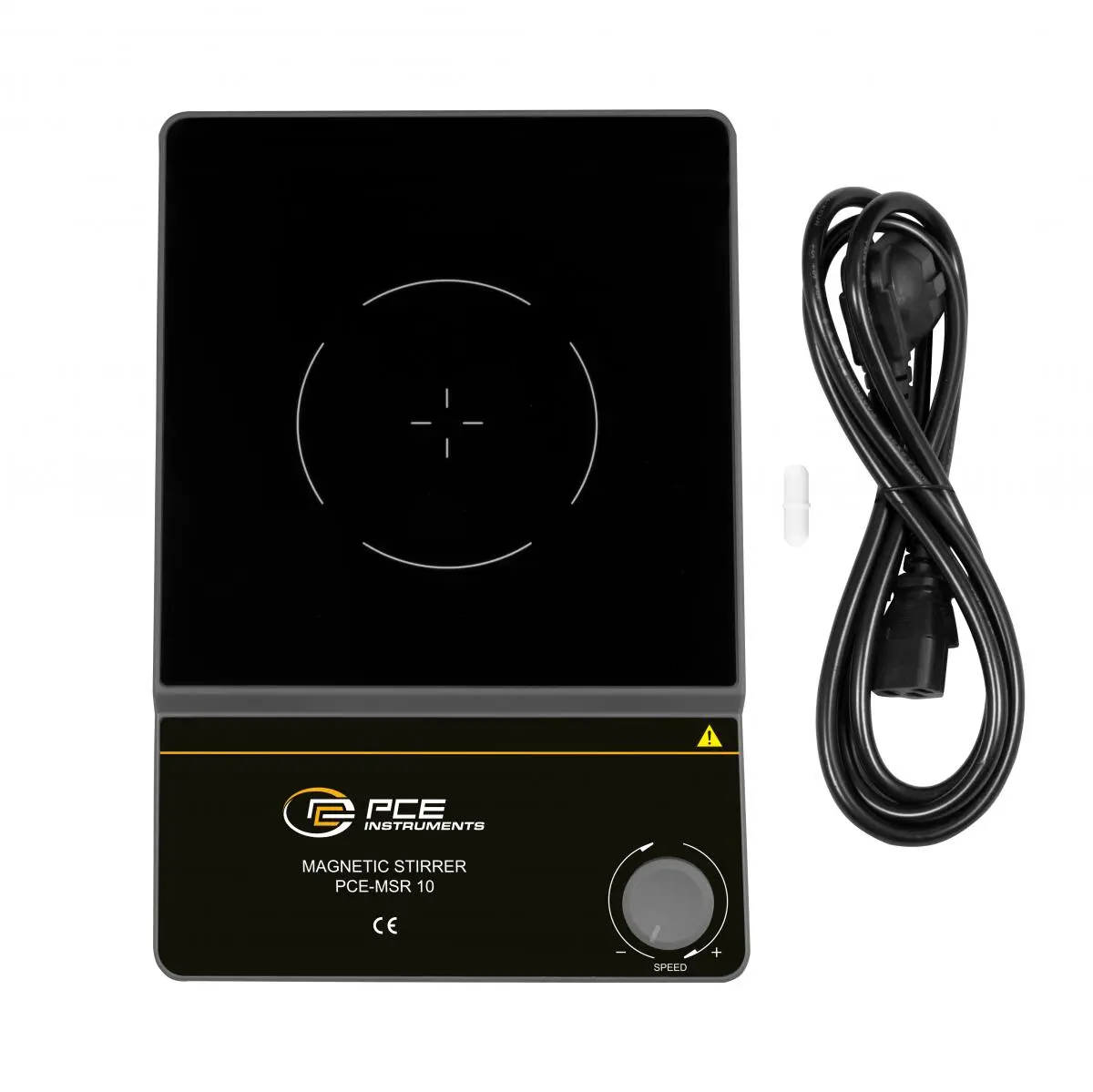

The robust acrylic plate, which is equipped with a magnetic stirrer with dimensions of 173 × 180 mm, ensures a stable working surface. The magnetic stirrer is driven by a brushless motor, which ensures extremely quiet operation of the device. The included magnetic stirrer has a diameter of 8 mm and a length of 30 mm, making it ideal for a wide range of daily laboratory applications. With a power consumption of only 10 watts, the magnetic stirrer is also extremely energy-efficient. The power supply of the offered magnetic stirrer device is: from 100 to 240 V AC, 50 / 60 Hz.

Ideal fo the lab

A magnetic stirrer can be used, among others. in chemical and biological laboratories, research facilities and industrial processes.

Model	Dimensions	Performance [dm3/h]	Number of positions	Capacity	Rotational speed [rpm]	Safety class	Connector type	Scale
PCE-MSR 10	Worktop: 173 x 180; Stirrer: Ø8 x 30	10 W	1	5 l	from 200 to 1600 rpm	IP42	IEC plug	1060g
PCE MSR 20	Worktop: 173 x 180; Stirrer: Ø8 x 30	24W	1	5 l	100 to 1600 rpm	IP20	IEC plug	1110 g
