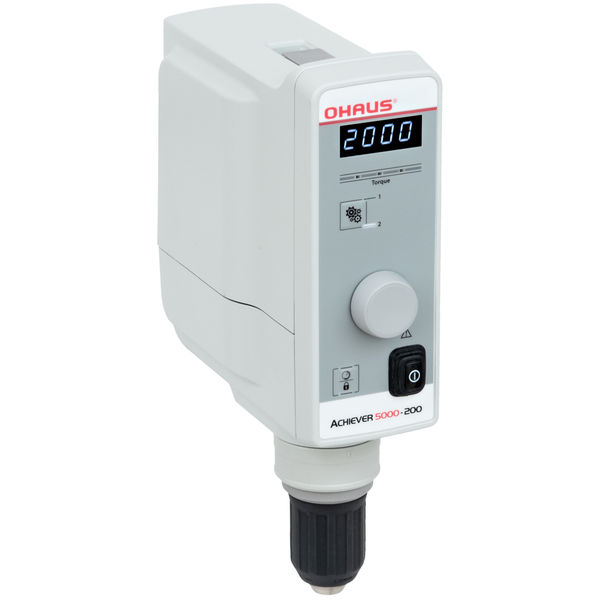

Mechanical stirrer Achiever™ 5000

Choose Models for offer request


  • LED display
  • Brushless motor
  • Multiple programs

The OHAUS Achiever™ 5000 mechanical mixers are designed for efficient and precise mixing as well as safety and ease of use in all conditions. The hermetic design features IP54 protection and ensures safe mixing even in the most demanding applications. The keyless handle and programmable speed increase allow for easy setup and safe mixing to protect the sample and user. Five models are available with torques up to 200 Ncm and capacities up to 100 l.



  • The brushless motor and torque compensation technology guarantee high efficiency and constant mixing speed. This allows mixing viscous liquids in a precise and controlled manner without excessive noise.

  • Easier setup with keyless chuck - no tools needed. Quick and easy one-handed head shank replacement. Special design saves lab workers time and reduces their workload.

  • The device is designed with safety in mind. A lock button prevents accidental speed changes, and motor overload detection technology stops mixing before an overload occurs, protecting the sample.

Detailed Features:

  • Display: Easy-to-read digital LED display with speed indication, current torque trend and built-in timer.

  • Programs: Mixing, dissolving, dispersion, emulsification and homogenization in food, cosmetics, paints/coatings, pharmaceuticals, chemicals, adhesives, plastics/polymers and cement/construction industries. Used in pilot-scale production.

  • Power: Mixing speed from 6 to 2000 rpm, accuracy of 1 rpm and maximum torque from 20 Ncm to 200 Ncm depending on the model, stable torque at any speed, capacity from 25 l to 100 l.

  • Communication: n/a.

  • Design: IP54-rated hermetic aluminum housing, keyless handle for easy one-handed operation, brushless motor for quiet operation, and master switch.

  • Design Features: Compact design for easy operation, simple knob control, lock button to prevent accidental changes in settings, full overload and over-temperature protection

Technical data:

Model e-A51ST020 e-A51ST040 e-A51ST060 e-A51ST100 e-A51ST200
RPM 30-2000 rpm 30-1300 rpm 6-400 rpm (I)
30-2000 rpm (II)
Max load (H2O) l 25 40 100
Viscosity of the sample (max) 10000 mPa·s 25000 mPa·s 50000 mPa·s 70000 mPa·s 100000 mPa·s
Maximum torque 20 Ncm 40 Ncm 60 Ncm 100 Ncm 200 Ncm
Speed gear 1 2
Speed accurac 1 rpm
Control Digital
Display LED
Clock Yes
Lock button Yes
Handle range (diameter) 1 - 13 mm
Stick - through (diameter) to 8,5 mm
IP level IP54
Dimensions (L x W x H) 28,5 x 23,5 x 9,0 cm 31,5 x 23,5 x 9,0 cm
Net mass 4,1 kg 4,6 kg
Power supply 230V, 50/60Hz
Power 190 W
Work conditions 5 °C – 40 °C, 80% RH*, non-condensing
Catalog no 30586763 30586764 30586765 30586766 30586767
*RH = relative humidity
Model Speed ​​range [rpm]
e-A51ST020 30-2000
e-A51ST040 30-2000
e-A51ST060 30-2000
e-A51ST100 30-1300
e-A51ST200 6-400 obr./min (I); 30-2000 obr./min (II)
