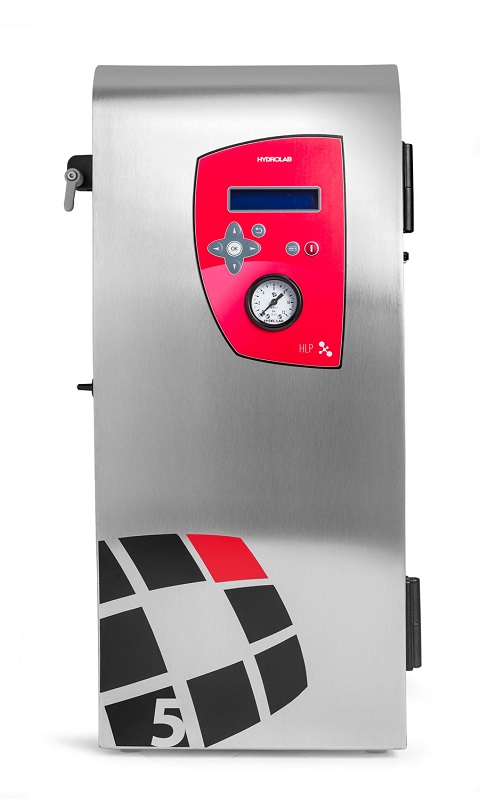

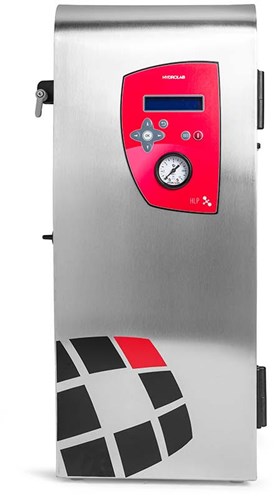

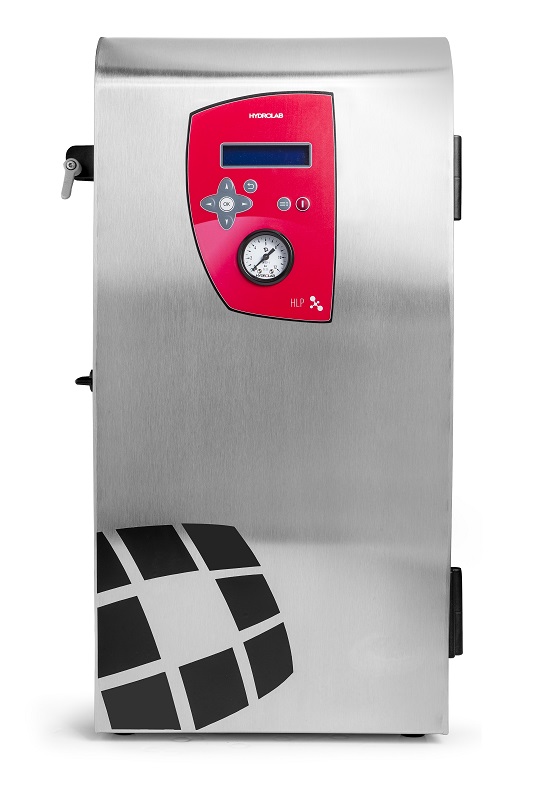

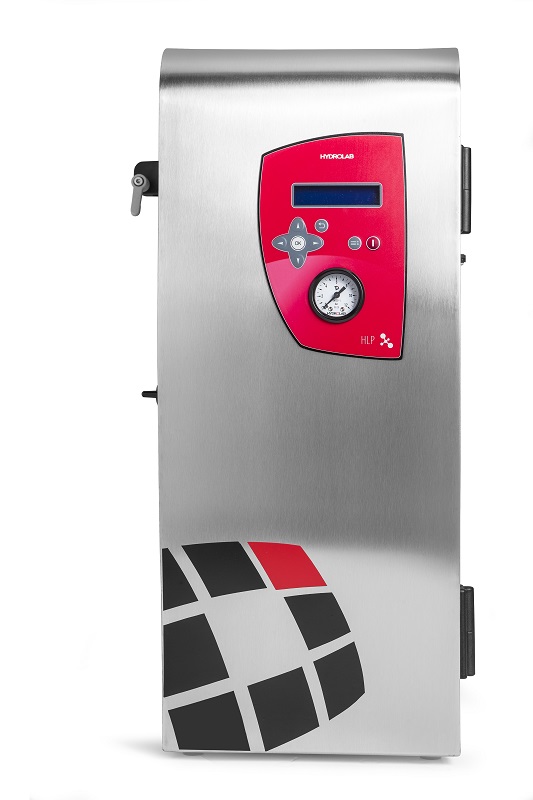

Demineralizers HLP series

Choose Models for offer request

Intended

  • Automatic and maintenance-free operation of the device
  • Color LCD display
  • Automatic shutdown of the system when the tank is full



HLP series demineralizers are devices powered by tap water that meet the requirements of every laboratory in terms of demand for ultra-pure water suitable for analytical and instrumental purposes. Water with a conductivity of 0.055 µS/cm is obtained, meeting the requirements of standards: PN-EN ISO 3696:1999, ASTM, CLSI, FP IX. Such water can be used for instrumental analyzes AAS, ICP/MS, IC, HPLC, GC. HLP demineralizers are equipped with a microprocessor control and measurement system that directs the demineralization process.

Technical data:

  • Power supply: tap water at temp. 5-40ºC
  • Color LCD display
  • Conductometer measuring the conductivity and temperature of purified water in units of µS/cm or MOhm
  • Clock displaying the date and time
  • Alarms: module replacement
  • Preview of service dates
  • Built-in RS 232 connector for communication with a computer
  • Water supply pressure gauge
  • Automatic shutdown of the system when the tank is full
  • Purified water in the device meets the requirements of the PN-EN ISO 3696:1999 standard

Dimensions [W x D x H]: 200 x 375 x 420 mm
10 dm³ tank: height. 390 mm, diameter: 250 mm

Parameters of purified water:

  • bacteria < 1 cfu/ml*
  • particles > 0.2μm < 1 particle/ml*
  • conductivity: 0.06 μS/cm
  • resistance: 18.2 MOhm*cm
*sampling point equipped with a 0.45/0.2μm microfiltration capsule

Serwis:

Model Sediment prefilter 5μm Module A2 Module H7 Module 2xH7 Module 2xH7TOC MF capsule 0,2μm Radiator UV 254nm
HLP Smart
+ + + - - - -
HLP 5 + + - + - - -
HLP 5S + + - + - + -
HLP 5P + + - + - - -
HLP 5SP + + - + - + -
HLP 5 UV + + - - + + +
Work time 6 months* 6 months* 2000 dm³ 2x2000 dm³ 2x2000 dm³ 12 months* 8500 h
Cat no EO-005-10 EO-MA-12 EJ-2000-0 EJ-2000-0 (x2) EJ-2000-1 (x2) EM-SP-20 EUV-254-HLP

Model
Sediment prefilter 5μm Module A2 Module H6 Module H6TOC MF capsule 0,2μm Radiator UV 254nm
HLP 10 + + + - - -
HLP 10S + + + - + -
HLP 10P + + + - - -
HLP 10SP + + + - + -
HLP 10 UV + + - + + +
Work time 6 months* 6 months* 5000 dm³ 5000 dm³ 12 months* 8500 h
Cat no EO-005-10 EO-MA-12 EJ-5000-0 EJ-5000-1 EM-SP-20 EUV-254-HLP

Model
Sediment prefilter 5μm Module A2 Module H6 Module H6TOC MF capsule 0,2μm Radiator UV 254nm
HLP 20P + + + - - -
HLP 20SP + + + - + -
HLP 20 UV + + - + + +
Work time 6 months* 6 months* 5000 dm³ 5000 dm³ 12 months* 8500 h
Cat no EO-005-10 EO-MA-12 EJ-5000-0 EJ-5000-1 EM-SP-20 EUV-254-HLP

Model
Sediment prefilter 5μm Module A2 Module H6 Module H6TOC MF capsule 0,2μm Radiator UV 254nm
HLP 30P + + + - - -
HLP 30SP + + + - + -
HLP 30 UV + + - + + +
Work time 6 months* 6 months* 5000 dm³ 5000 dm³ 12 months* 8500 h
Cat no EO-005-10 EO-MA-12 EJ-5000-0 EJ-5000-1 EM-SP-20 EUV-254-HLP

Model

Sediment prefilter 5μm GAC Module H6 Module H6TOC MF capsule 0,2μm Radiator UV 254nm
HLP 40P + + + - - -
HLP 40SP + + + - + -
HLP 40 UV + + - + + +
Work time 6 months* 6 months* 5000 dm³ 5000 dm³ 12 months* 8500 h
Cat no EO-005-10 EW-001-10 EJ-5000-0 EJ-5000-1 EM-SP-20 EUV-254-HLP

Model
Sediment prefilter 5μm GAC Module H6 Module H6TOC MF capsule 0,2μm Radiator UV 254nm
HLP 60P + + + - - -
HLP 60SP + + + - + -
HLP 60 UV + + - + + +
Work time 6 months* 6 months* 5000 dm³ 5000 dm³ 12 months* 8500 h
Cat no EO-005-10 EW-001-10 EJ-5000-0 EJ-5000-1 EM-SP-20 EUV-254-HLP

* the life of the cartridge may change depending on the flow rate, its characteristics and the level and type of water contamination
Model System performance [l/h]
HLP Smart 4-4,5
HLP 5 5-7
HLP 5S 5-7
HLP 5P 5-7
HLP 5SP 5-7
HLP 5 UV 5-7
HLP 10 10-12
HLP 10S 10-12
HLP 10P 10-12
HLP 10SP 10-12
HLP 10 UV 10-12
HLP 20P 20-22
HLP 20SP 20-22
HLP 20 UV 20-22
HLP 30P 30-32
HLP 30SP 30-32
HLP 30 UV 30-32
HLP 40P 40-42
HLP 40SP 40-42
HLP 40 UV 40-42
HLP 60P 60-62
HLP 60SP 60-62
HLP 60 UV 60-62
