Magnetic stirrers OHAUS
Choose Models for offer request
Intended
Characteristic
Available Models
Guardian 7000 series
Reliable stir plate mixers - superior safety features and intelligent performance.
OHAUS Guardian 7000 Series hotplate agitators are equipped with exceptional safety features and superior heating and mixing performance. The SmartHousing™ enclosure is chemical resistant with an innovative, easy-to-clean design that drains spills from internal components and has a sloped glass control panel. The bright LCD display features intuitive icons, temperature, speed and time settings - all designed to monitor performance throughout the lab.
Protect your lab with SmartPresence™ technology. This state-of-the-art technology can detect the User nearby, and if it doesn't detect , safely turns off the heat.
Safely control max temperature. SmartHeat™ allows you to set the max temperature of the stir plate, preventing overheating of samples for the safety of Users.
Protects Operators - SmartHousing™ housing stays cool regardless of temperature. The large hot surface indicator is visible and lights up when the heater temp exceeds 40°C.
Chemical and biological temperature-sensitive samples, heat fixation, solution and reagent pH optimization, sterilization, endothermic reactions, denaturing organic material, sample and solution preparation, media preparation, cooking.
Display
Backlit LCD display with indication oftemp, speed and time, green indicator light when the instrument is running, visible hot plate indicators, SmartRate™, SmartHeat™, SmartPresence™, SmartLink™ icons, usage sensor,single point cal.
Operation
Timer, mixing speed from 60 to 1600 rpm, temperature range from +5°C to 500°C (ceramic cooktop) or 380°C (aluminum cooktop), 8" (20.3cm) stainless steel RTD temperature sensor, 1.5" (3.8cm) PTFE stirrer, protective cover.
Design
SmartHousing™ sensor enclosure stays cool and resistant to chemicals, IP21 rating, tempered glass front panel, control knobs, heater on/off switch, easy to clean surfaces: ceramic or aluminum.
Communication
USB port provides flexibility in programming repetitive applications and enhances security with SmartLink™ technology; detection function
User wide-range sensing function operated via OHAUS Bluetooth dongle (sold separately).
Advantages
Hot surface indicator, audible alarm, SmartHeat™ temperature limiting function, SafetyHeat™ function that shuts down heaters in case of malfunction, temperature calibration for 5 sensor and plate set points, temperature priority function, SmartRate™ function.

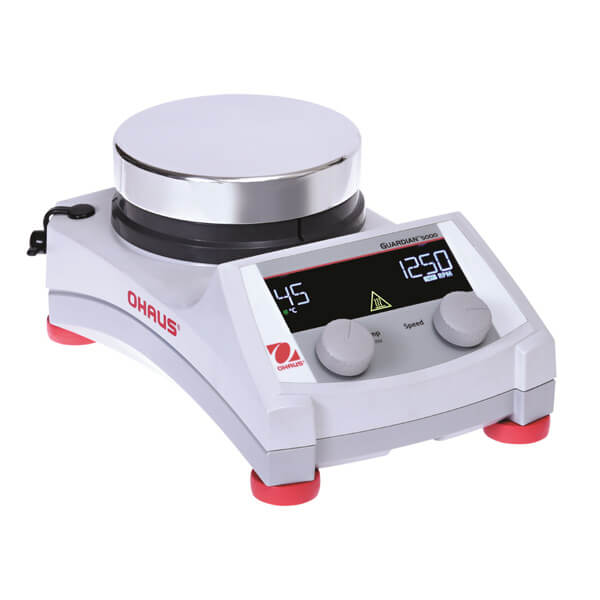

Guardian 5000 Series
Reliable agitator hot plates with exceptional safety features:
Protects Operators! The SmartHousing™ housing remains cool to the touch at all times. A large hot surface indicator is visible throughout the lab and lights up when the temperature exceeds 40°C.
All models are equipped with SafetyHeat™, one of the industry's best safety systems, providing high security with dual monitoring of the board's operating status.
The unique SmartHousing™ housing stays cool and is chemical resistant. Easy-to-clean innovative chemical-resistant design protects the control panel.
Functions
Boiling water preparation, water/oil bath preparation, sample and solution preparation, buffer and reagent dissolution, media preparation, sample concentration.
Display
Boiling water preparation, water/oil bath preparation, sample and solution preparation, buffer and reagent dissolution, media preparation, sample concentration.
Operation
Mixing speed from 60 to 1600 rpm, temperature range from +5°C to 500°C (ceramic plate) or 380°C (aluminum plate), power cord (included), models with mixing function include 1.5" (3.8 cm) PTFE-coated stirrer.
Design
Sensor, SmartHousing™ cool-to-the-touch chemical-resistant housing, IP21 protection rating, polycarbonate front panel, control knobs, heater on/off switch, built-in handle , easy-to-clean coating: ceramic or aluminum.
Advantages
Hot surface indicators, audible alarm, SafetyHeat™ function that shuts down heaters in case of malfunction, temperature calibration for 3 sensor and plate set points.

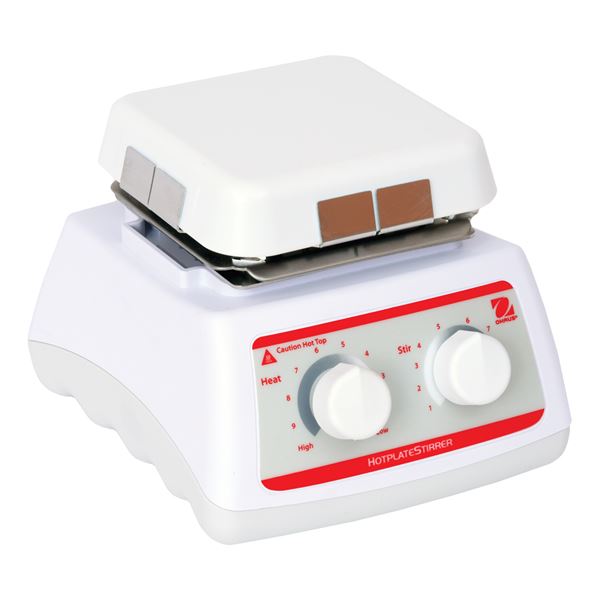

Mini Series
Compact, reliable, easy-to-use magnetic stirrer for basic heating and mixing. All models feature a smooth, chemical-resistant ceramic plate. This perfectly white reflective surface is perfect for viewing samples Designed with safety in mind - the unique housing material is heat resistant, making it cool to the touch. It is also resistant to chemicals. The design's resistance to flooding translates into long-lasting and reliable use.
Functions
Boiling water, dissolving buffer solutions and reagents, preparing solutions, concentrating samples.
| Technical data | HSMNHS4CAL |
| Functions | Heating and mixing |
| RPM range | 100 to 1200 rpm |
| Volume | 1000 mL |
| Plate dimensions |
S100,2 × G100,2 mm |
| Control | Analog |
| Plate dimensions | Ceramic |
| Dimensions |
W120,7 × D200,1 × S150,2 mm |
| Power | 200 W |
| Model | Model | Regulation range [° C] | Speed range [rpm] |
|---|---|---|---|
| Stirrer e-G71HS07C Cat. no.: 30500603 | Guardian 7000 | from+5°C RT to 500°C | 60 to 1600 |
| Stirrer e-G71HS10C Cat. no.: 30500613 | Guardian 7000 | from +5°C RT to 500°C | 60 to 1600 |
| Stirrer e-G71HSRDM Cat. no.: 30500623 | Guardian 7000 | from +5°C RT to 380°C | 60 to 1600 |
| Stirrer e-G51HS07C Cat. no.: 30500523 | Guardian 5000 | from +5°C RT to 500°C | 60 to 1600 |
| Stirrer e-G51HS10C Cat. no.: 30500553 | Guardian 5000 | from +5°C RT to 500°C | 60 to 1600 |
| Stirrer e-G51HSRDM Cat. no.: 30500563 | Guardian 5000 | from +5°C RT to 500°C | 60 to 1600 |
| Stirrer HSMNHS4CAL Cat. no.: 30392026 | Mini | 500°C | 100 to 1200 |
