The IKA C-MAG/RET Control mixes volumes up to 20 liters (H2O) at 50-1700 rpm. IKA chose to use tempered glass not only for its clarity, chemical resistance and safety, but also because the glass surface is a completely novel solution for magnetic mixers. C-Mag and RET control improves over time with regular firmware updates - control of kinetics and sensitive reactions is supported by an integrated timer and counter function - the IKA SmartTemp® function of intelligent user protection. PT1000 temperature sensor included.
| Technical data |
C-MAG HS 7 CONTROL |

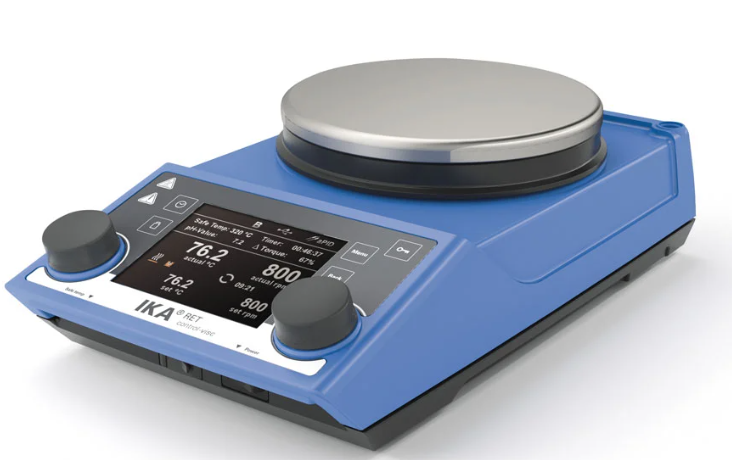

RET CONTROL-VISC |

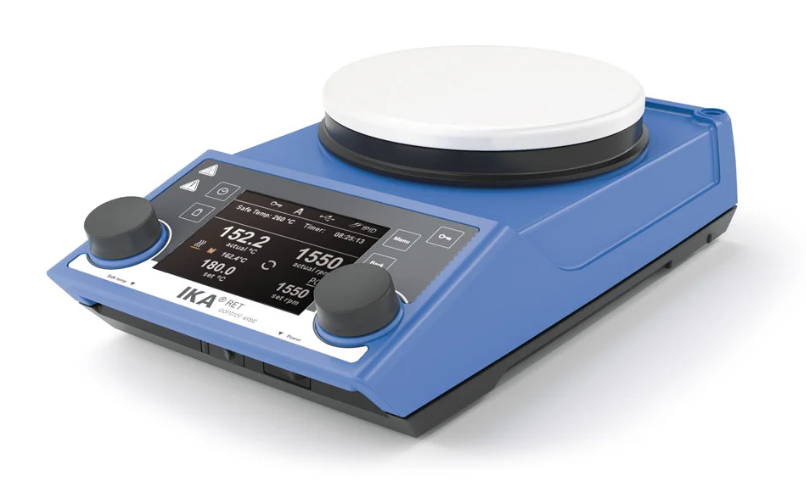

RET CONTROL- WHITE |
| Max. mixing volume |
20 l |
20 l |
20 l |
| Plate |
square, ceramic |
round, stainless steel composite |
round, stainless steel composite with white ceramic coating |
| Direction of rotation |
right-left |
right |
right |
| RPM range |
50-1500 rpm |
50-1700 rpm |
50-1700 rpm |
| Heating power |
1000 W |
600 W |
600 W |
| Heating temperature |
RT-500°C |
RT-340°C |
RT-340°C |
| Plate dimensions |
180 x 180 mm |
⌀ 135 mm |
⌀ 135 mm |
| Dimensions (L x W x H) |
220 x 88 x 354 mm |
160 x 85 x 270 mm |
160 x 85 x 270 mm |
| Protection class in accordance with DIN EN 60529 |
IP 21 |
IP 42 |
IP 42 |
| Weighing function |
- |
+ |
+ |
| Max. load (for weighing function) |
- |
5 kg |
5 kg |
