Thermostatic boxes TCX series
Choose Models for offer request
Intended

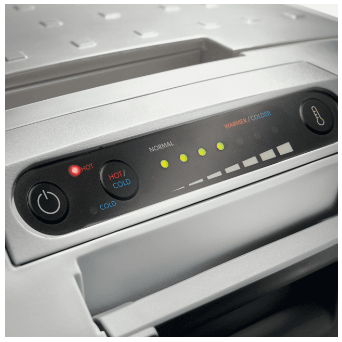

- touch control panel - perfect for checking detailed information
- can work as a cooler or heater
- memory function retains programmed settings even when the system is turned off
- energy saving
- works even in tilted position
- flexible power supply
- 2-stage battery protection
Characteristic
Available Models

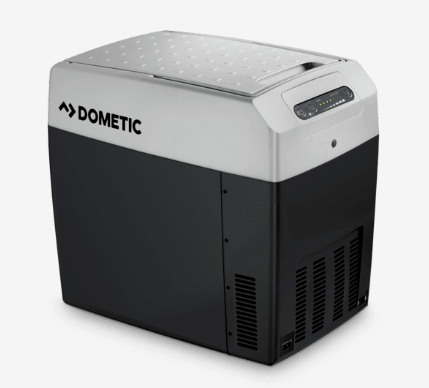

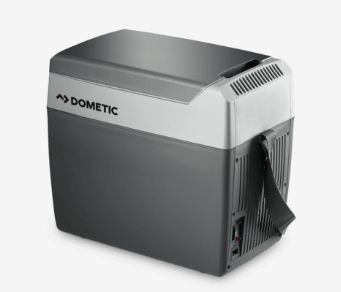

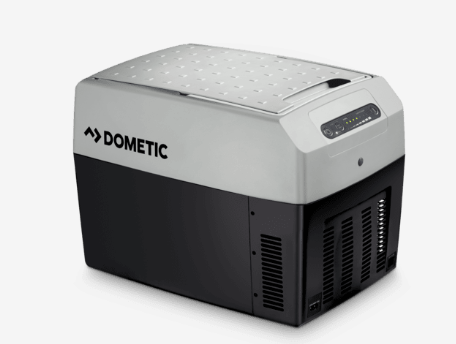

Portable thermoelectric refrigerator
Thermoelectric portable refrigerator - provides: convient, efficient and portable cooling / heating.
The TCX series is characterized by:
The TCX series is a modern design incorporating a touch control panel and digital display. In addition, these refrigerators provide high efficiency with features such as intelligent energy saving, individually adjustable temperature. The new TCX units prevents over-discharge of the battery and are equipped with reverse polarity protection for DC and AC connections.
Capacities available in the TCX series are: 7, 15, 21, 33l.
Thermoelectric portable refrigerator - provides: convient, efficient and portable cooling / heating.
The TCX series is characterized by:

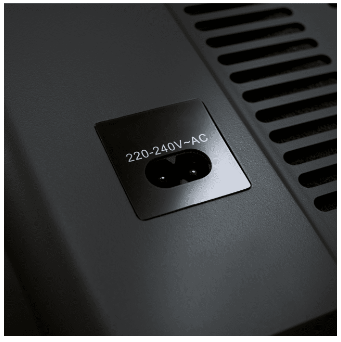

- flexible power supply: 12 or 24 V DC and 230 V AC
- cooling up to 27°C below ambient temperature, heating up to +65°C
- active battery protection - prevents excessive battery discharge
- high-performance TC special electronics with intelligent and energy-saving circuitry
- reverse polarity protection for convenient handling of electrical connections

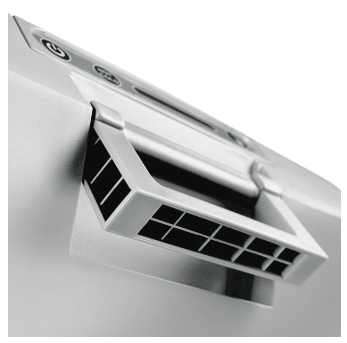

- durable fan for dynamic interior ventilation
- 2-stage battery protection
- has mains power priority
The TCX series is a modern design incorporating a touch control panel and digital display. In addition, these refrigerators provide high efficiency with features such as intelligent energy saving, individually adjustable temperature. The new TCX units prevents over-discharge of the battery and are equipped with reverse polarity protection for DC and AC connections.
Capacities available in the TCX series are: 7, 15, 21, 33l.
Technical specification | ||||
Model | TCX 07 | TCX 14 | TCX 21 | TCX 35 |
Delivery includes | 1 refrigerator 1 cable 220 - 240 V 1 instruction manual |
1 refrigerator 1 car cigarette lighter cable 1 cable 220 - 240 V 1 instruction manual |
1 refrigerator 1 car cigarette lighter cable 1 cable 220 - 240 V 1 internal device |
|
Cooling technology | thermoelectric | |||
Dimensions D x H x W [mm] | 347 x 294 x 195 | 450 x 328 x 303 | 450 x 420 x 303 | 550 x 460 x 376 |
Weight [kg] | 13,1 | 6,7 | 7,68 | 10,5 |
Total volume (IEC 62552-3) [l] | 7 | 15 | 21 | 33 |
AC input voltage [V] | -- | 220 - 240 | ||
Nominal AC input current [A] | -- | 0,6 / 230 | ||
Nominal AC input power [W] | -- | 64 | ||
DC input voltage [V] | 12 | 12 / 24 | ||
Nominal DC input current [A] | 3,6 | 3,8 / 12 2,1 / 24 |
||
Nominal DC input power [W] | 36 | 46 / 12 50 / 24 |
||
Input frequency [Hz] | 50 / 60 | |||
Energy efficiency class (EU regulation 2019 / 2016) | -- | E | F | |
Climate class | N | T | ||
Color | grey | |||
Certificates | E4GSCE | G-markCEE4GS | E4GSCE |
Model | Capacity | Dimensions | Scale |
---|---|---|---|
TCX 07 | 7l | 347 x 294 x 195 (D x H x W) | 13,10kg |
TCX 14 | 15l | 450 x 328 x 303 (D x H x W) | 6,70kg |
TCX 21 | 21l | 450 x 420 x 303 (D x H x W) | 7,68kg |
TCX 35 | 33l | 550 x 460 x 376 (D x H x W) | 10,50kg |
