SLD vehicle mounting slide
Choose Models for offer request
Intended
- can be fully extended for easy access to products
- lever is easy to operate and allows for simple handling
- attractive design
Characteristic
Available Models
Guide for CFX3 series refrigerators
The Dometic CFX3 refrigerator guide is designed to make it easy to access the CFX3 refrigerator from the back of a truck, camper, van, SUV, trailer or boat. It features a sturdy design, high maximum load capacity and a heavy-duty latch system.

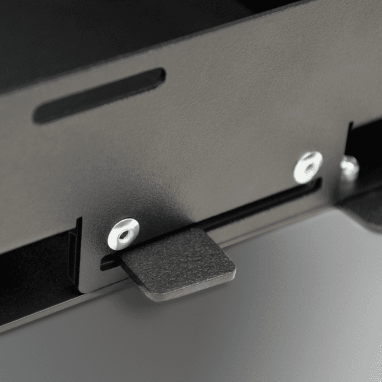

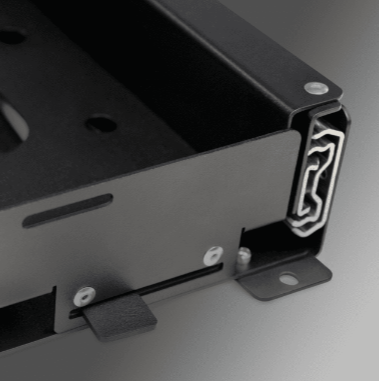

It is suitable for use with CFX3 and older CFX models of comparable size. Its maximum load capacity is 100-115kg. It provides the user with the ability to fully extend - gaining easy access to the refrigerator's contents, and the heavy-duty latch system reduces the rattling sound during travel. The dust cover prevents sand and dirt from entering the slide. Its optimized design avoids unnecessary strain on the vehicle. It is sold complete with mounting straps and M6 bolts.
Compatibility:
-
CFX3 model SLD3545 - fits CFX3 35, CFX3 45 and older CFX models of comparable size
-
CFX3 SLD55 model - fits CFX3 55, CFX3 55IM and older CFX models of comparable size
-
model CFX3 SLD75DZ - fits CFX3 75DZ and older CFX models of comparable size
-
CFX3 SLD95100 model - fits CFX3 95, CFX3 100 and older CFX models of comparable size
| Technical specification | ||||
| Model | CFX3 SLD3534 | CFX3 SLD55 | CFX3 SLD75 | CFX3 SLD95100 |
| Delivery includes | 1 guide 4 straps 4 screws 1 instruction manual |
|||
| Dimensions D x H x W[mm] | 734,82 x 85,34 x 481,08 | 758,95 x 85,34 x 538,48 | 930,15 x 85,34 x 593,60 | 999,49 x 85,34 x 618,24 |
| Net weight [kg] | 14,2 | 15,69 | 19,23 | 20,68 |
| Model | Dimensions | Scale |
|---|---|---|
| CFX3 SLD3545 | 734,82 x 85,34 x 471,08 (D x H x W) | 14,20kg |
| CFX3 SLD55 | 758,95 x 85,34 x 538,48 (G x H x W) | 15,69kg |
| CFX3 SLD75 | 930,15 x 85,34 x 593,60 (D x H x W) | 19,23kg |
| CFX3 SLD95100 | 999,49 x 85,34 x 618,24 (D x H x W) | 20,68kg |
