Thermostatic boxes CFX3 series

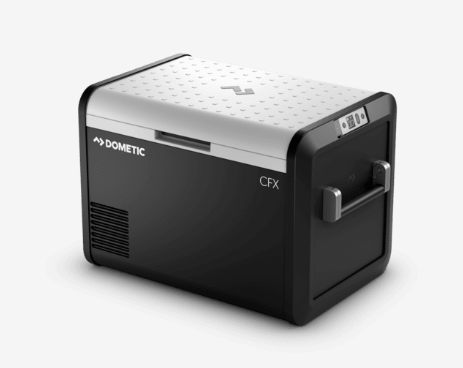

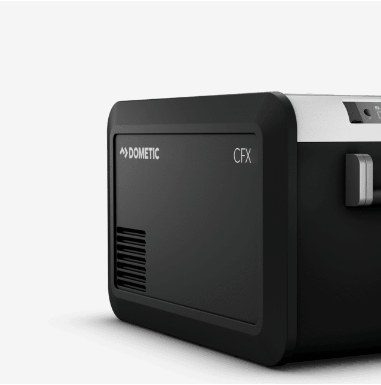

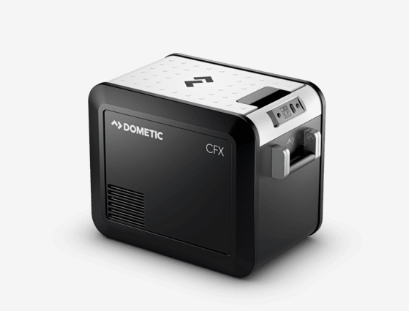

Portable compressor refrigerator - CFX3 series

This portable refrigerator delivers extraordinary cooling performance - so you can take more products with you. It has a solid structure designed for difficult environmental conditions. Enjoy efficienct cooling with a mobile app that gives you full control of your Dometic CFX3.

This model stands out:

• large maximum capacity 25 - 99l

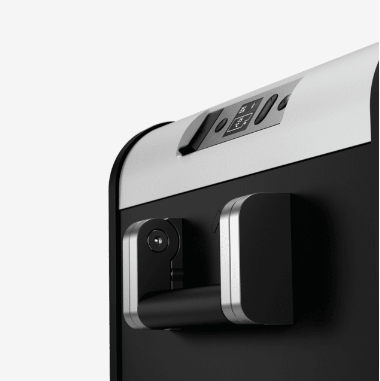

• durable yet lighweight ExoFrame construction with protected edges and aluminium alloy handles

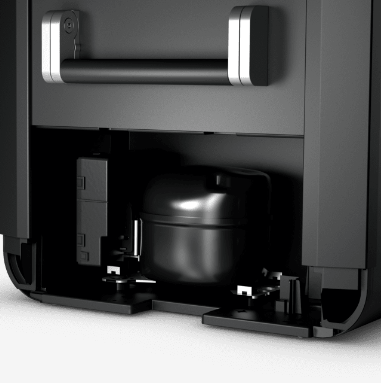

• efficient VMSO3 compressor technology which wllows aooling temperatures rranging from 20°C to -22°C
• a clear, high-resolution color display and soft buttons enabling smooth control and monitoring of the refrigerator's operation
• the ability to control temperatures via WiFi or Bluetooth connection and the CFX3 app - it also providex insight into the operation histroy
• a dynamic battery protection system that protects against discharging the car battery or enables high consumption in the case of dual batteries
• durable, light and compact structure

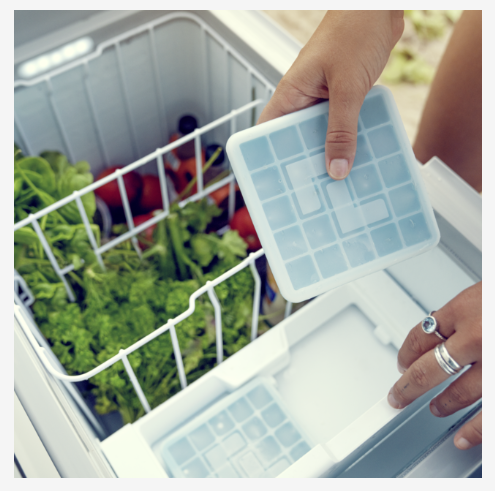

Decide for yourself how to organize the space using the removable separator and get ready for even more even distribution of cool air thanks to the improved evaporator - now on all internal walls of the device/

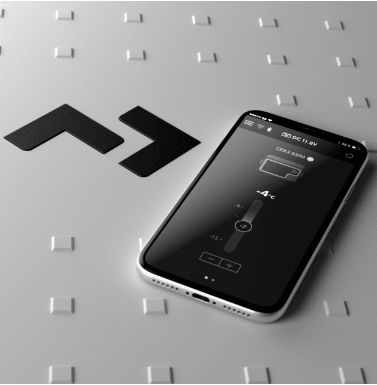

The CFX3 app provides a whole new level of control and connectivity. Download it for free from the App Store or Google Play Store and connect to your refrigerator using your smartphone - control the refrigerator temperature remotely. The user-friendly interface keeps track of the status of your CFX3 device. It the CFX3 lid is open, the app will notify by sending a notification to your smartphone telling you to close it.

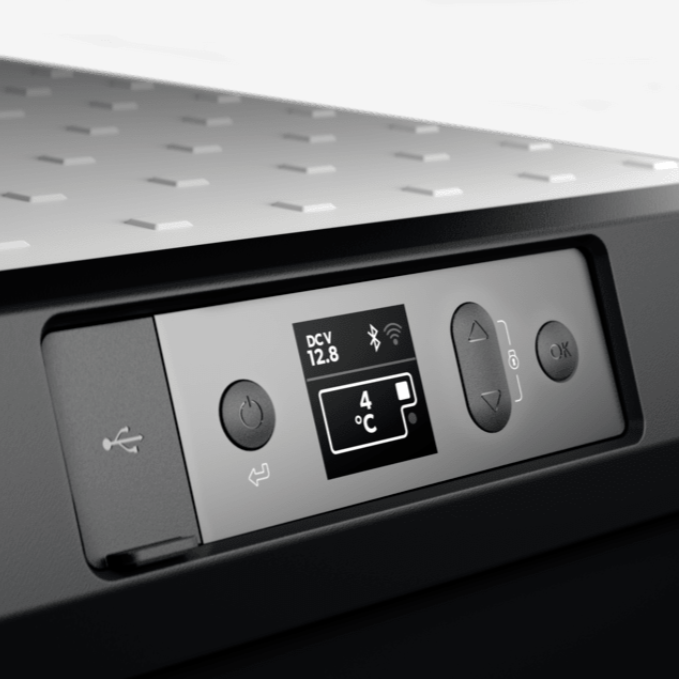

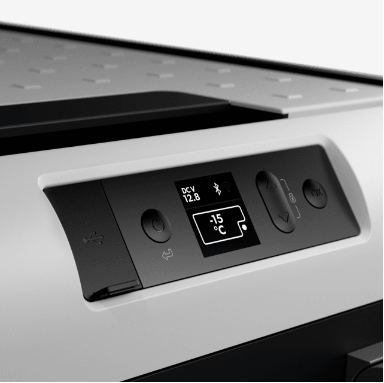

The CFX series has a clear, high-resolution display that provides information about the temperature and operation of the device. Several protection systems are built into the display - a scratch-resistant cover and an IP64-rated casing that protects against dust and water splashes. An improved USB port is located on the display, which allows for faster and more convenient charging of portable deviced. The intuitive interface displays voltage, Bluetooth/WiFi connection status and temperature in attractive, colorful graphics. The refrigerator's operating settings can be changed at the touch of a button using a simple menu.

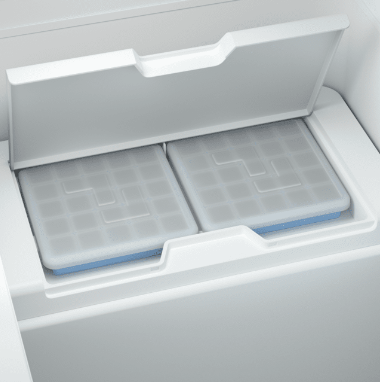

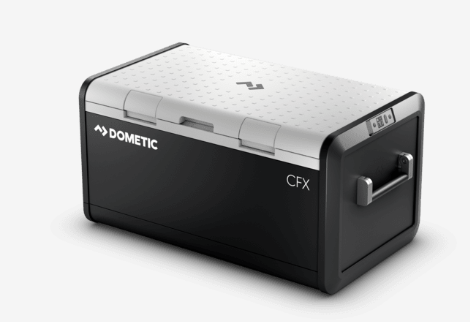

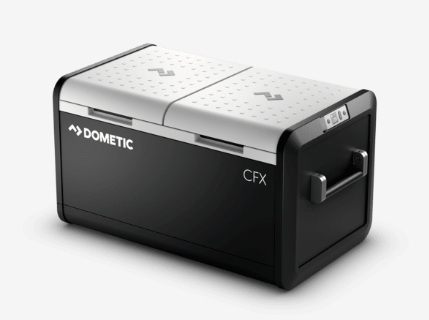

The CFX3 series models included single-chamber and double-chamber devices. Additionally, the CFX3 55IM model has an ice maker funcion.

Our offer also includes kits for mounting CFX3 series refrigerators in vehicles.

Technical specification
Model	CFX3 25	CFX3 35	CFX3 45	CFX3 55	CFX3 55IM	CFX3 75DZ	CFX3 95DZ	CFX3 100
Delivery includes	1 refrigerator 1 DC cabel 1 AC cabel removable wire baskets 1 instruction manual				basic set + ice maker	1 refrigerator 1 DC cabel 1 AC cabel removable wire baskets 1 instrukcja obsługi
Double or single zon	single					double		single
Cooling technology	Compressor
Dimensions D x H x W [mm]	569 x 420 x 342	694 x 407 x 398	694 x 476 x 398	455 x 480 x 720		495 x 472 x 892	530 x 472 x 892	530 x 472 x 962
Total volume (IEC 62552-3) [l]	25	36	46	55	53	74	93	99

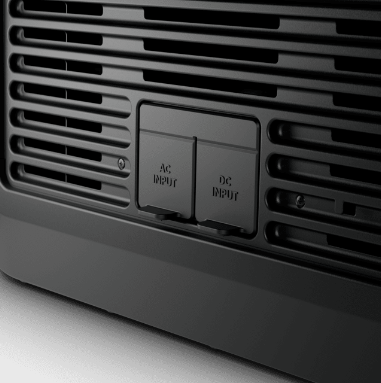

Input voltage AC [V]	100 - 240
Nominal AC input current [A]	0,9 / 100 0,38 / 240	0,94 / 100 0,39 / 240	0,96 / 100 0,40 / 240	0,98 / 100 0,41 / 240	1 / 100 0,41 /240	1,12 / 100 0,47 / 240	1,22 / 100 0,51 / 240	1,28 /100 0,53 / 240
Nominal AC input power [W]	46	50	52	50	52	59	60	73
DC input voltage [V]	12 / 24
Nominal DC input current [A]	3,2 / 24 6,5 / 24	7,5	8,2	8,7	8,9	9,6	10,4	10,8
Input frequency [Hz]	50 / 60
Refrigerant	R134a
Amount of refrigerant [g]	32	38	42	45		59	60
CO2 equivalent	0,046	0,054	0,06	0,064		0,084	0,096	0,086
Enerygy efficiency class (EU regulation 2019 / 2016)	C					D
Climate class	N / T
Insulation type	PU (POLYURETHANE)
Color	dark grey
USB port	5V, 2A
Basket	Yes
Threaded inserts in the base for mounting	Yes - M6
Drain plug	Yes
Internal lighting	Yes - LED
Certyficates	ECE R10CBEMCGS
Power cord length [m]	2
Anti-condensation coil	No	Yes
Type of communication	Bluetooth, WiFi
