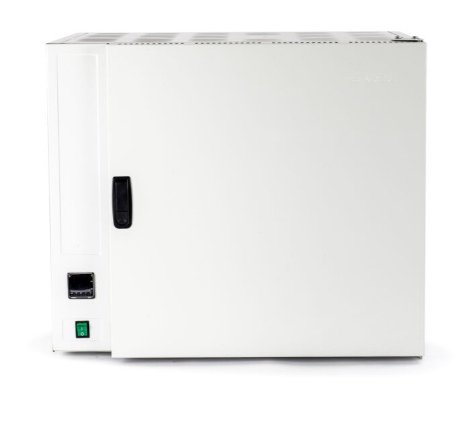

SNOL chamber oven LSP/LSN series

SNOL chamber oven up to 350°C

The versatile induced-air industrial electric ovens are designed by a team of professional engineers and made of high-quality materials, including durable metal parts and heat-insulating materials. Induced air circulation ensures uniform temperature distribution, resulting in excellent uniformity throughout the chamber.
Equipped with a range of precision digital controllers and certified heating elements, the furnaces guarantee exceptional temperature stability. They are used in a variety of industries, including electronics, stucco plastics and metals, and are suitable for curing, preheating and other thermal processes at temperatures up to 350°C.

Features of basic models:

• chamber made from stainless steel,
• control panel is placed in the underpart of the furnace,
• controllable valve for air exchange in the chamber,
• door opens to the side,
• equipped wint non-programmable controller Omron E5CC,
• good stability and uniformity,
• hermetically sealed doors,
• high degree of accuracy,
• high quality, ecological thermal insulation material,
• low power consumption,
• outside casing metal sheet, powder painted grey,
• shelves, 3 pcs. (except SNOL 20/300)
• short heating up/cooling down period,
• 1 year warranty

Optional equipment:

• additional shelves,
• buzzer,
• calibration of temperature measurement system,
• data communication/USB,
• digital timer,
• OPT (over temperature protection),
• metal tray,
• outside casing made from stainless steel,
• process observation window,
• reinforced shelves,
• table for supporting the oven,
• additional 1 year warranty

Models:

Model	Vol. [l]	Tmax [°C]	Chamber dimensions W x D x H [mm]	Overall dimensions W x D x H [mm]	Power [kW]	Voltage [V]
SNOL 58/350 LSP11 mild steel chamber, forced air circulation	58	350	390 x 375 x 360	670 x 615 x 580	2	230
SNOL 58/350 LSN11 stainless steel chamber, forced air circulation	58	350	390 x 375 x 360	670 x 315 x 580	2	230
SNOL 67/350 LSP01 mild steel chamber, natural air circulation	67	350	390 x 445 x 390	670 x 615 x 580	2	230
SNOL 67/350 LSN01 stainless steel chamber, natural air circulation	67	350	390 x 445 x 390	670 x 615 x 580	2	230
