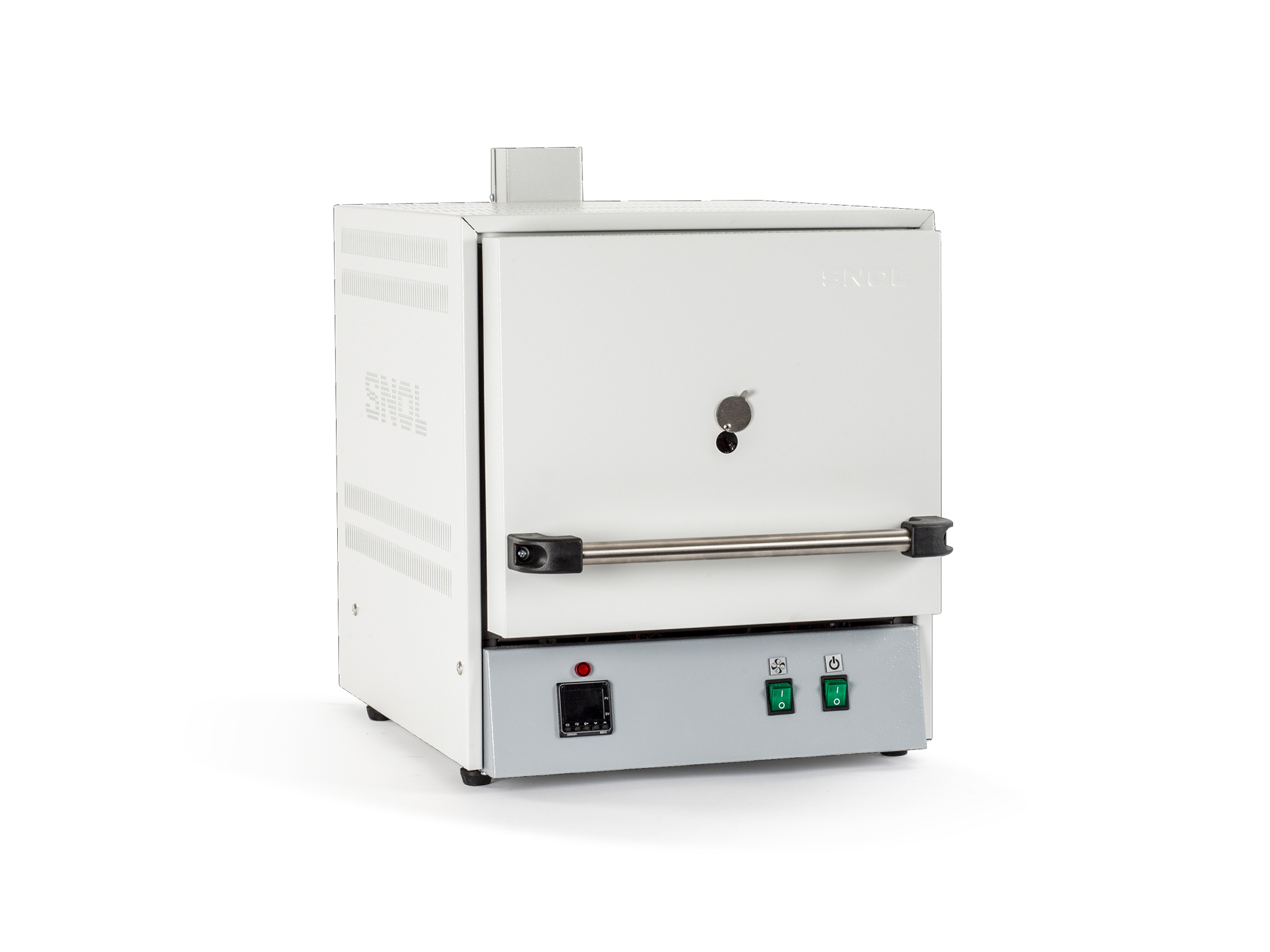

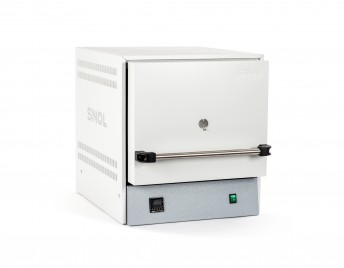

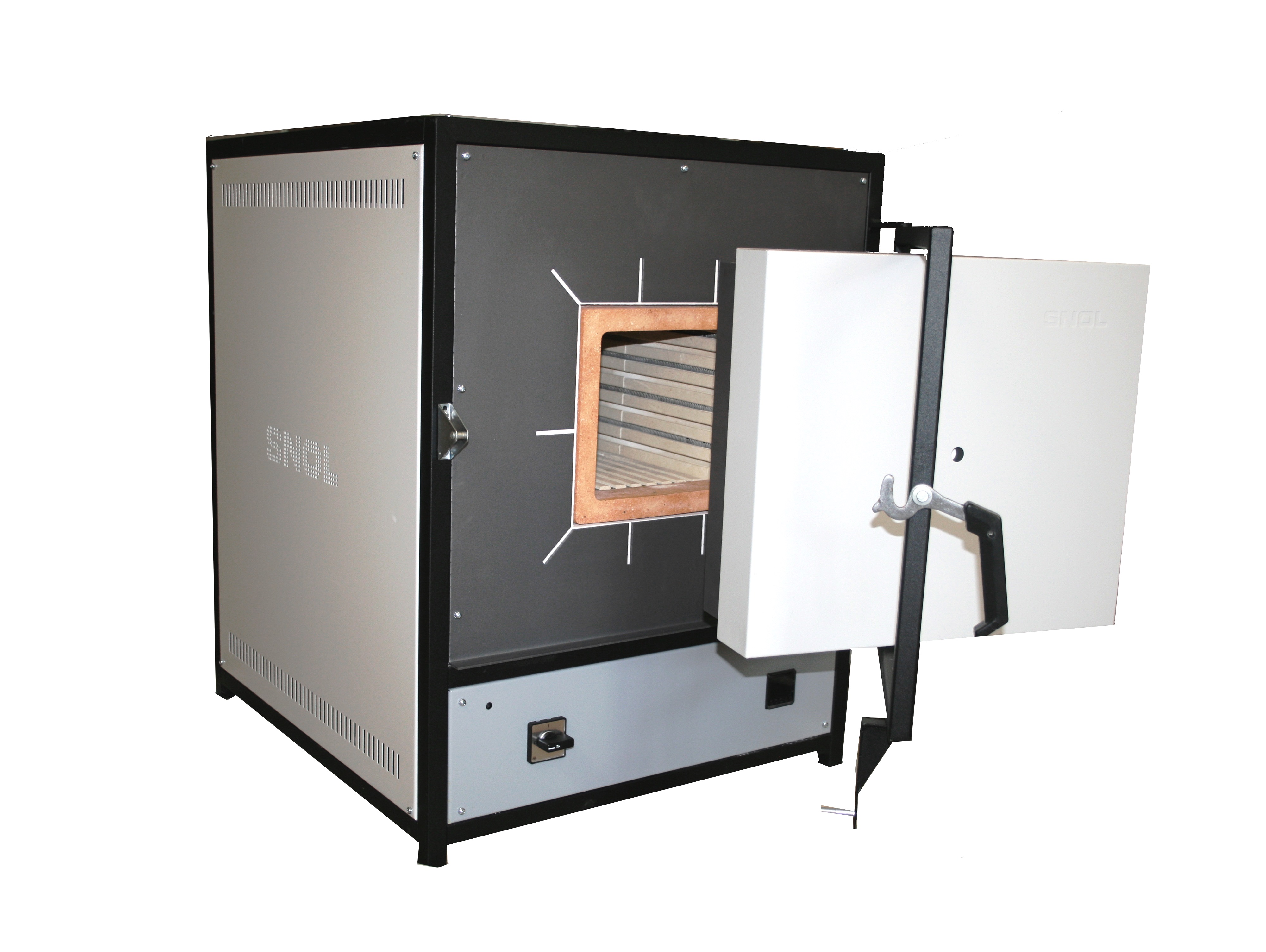

    Chamber furnace with ceramic muffle Snol

    Choose Models for offer request

    Product Sheet

    Intended

    • Fixed ceramic chamber
    • Closed heating elements on four sides around the chamber
    • Door opens on one side
    • Door safety switch
    • Control panel is located under the furnace section
    • Microprocessor - temperature controller
    • Ceramic bottom plate
    • Low electricity consumption
    • Inertness at high temperature
    • High accuracy

    • Characteristic

    • Available Models

    Snol chamber furnace with ceramic muffle is designed for quenching, loosening, normalizing and other thermal processing up to 1100 ° C.

    The device is ideal for scientific laboratories, educational institutes, ceramic laboratories, medicine and industry.

    Thanks to the technologies used, the furnace consumes less electricity and is environmentally friendly.

    A reliable microprocessor was used to regulate the temperature and ensure its constant level.

    The interior of the chamber is ceramic which guarantees good heat conduction and temperature uniformity.

    In order to eliminate gases or fumes released during thermal processing, an exhaust system can be additionally installed in some models.

    With many options available, our chamber furnace can be customized to meet individual needs.

    Features:

    • Process observation window
    • Chimney with fan for forced air extraction
    • Additional ceramic hearths
    • Buzzer
    • Digital timer
    • Overheat protection
    • Data logger
    • RS232 / RS-485 / USB interface
    • Temperature measurement calibration
    • System
    • Furnace support furnace



    Comparison of available models:

    Model Vol. Temperature Max
    Temperature    		 Chamber material Max heat-up time Internal dimensions External dimensions Mass
    12/1100 LSC01 12 l + 10-1100 ° C 1100 ° C Ceramic 130 min 215x295x195mm 640x745x820mm 134 kg
    12/900 LSC01 12 l + 10-900 ° C 900 ° C Ceramic 110 min 215x295x195mm 640x745x820mm 134 kg
    15/1100 LSC01 15 l + 10-1100 ° C 1100 ° C Ceramic 120 min 215x400x195mm 640x815x820mm 130 kg
    15/900 LSC01 15 l + 10-900 ° C 900 ° C Ceramic 100 min 215x400x195mm 640x815x820mm 130 kg
    13/1100 LHM21 13 l + 10-1100 ° C 1100 ° C Fiber muff 50 min 220x335x170mm 505x735x555mm 38 kg
    22/1100 LHM21 22 l + 10-1100 ° C 1100 ° C Fiber muff 50 min 280x500x160mm 605x905x620mm 59 kg
    3/1100 LHM21 3 l + 10-1100 ° C 1100 ° C Fiber muff 35 min 120x200x105mm 345x520x430mm 17 kg
    39/1100 LHM21 39 l + 10-1100 ° C 1100 ° C Fiber muff 50 min 320x495x230mm 655x940x740mm 75 kg
    4/1100 LSC01 4 l + 10-1100 ° C 1100 ° C Ceramic 110 min 120x295x110mm 440x615x500mm 41 kg
    4/1100 LSC21 4 l + 10-1100 ° C 1100 ° C Ceramic 110 min 120x295x110mm 440x605x500mm 41 kg
    4/900 LSC01 4 l + 10-900 ° C 900 ° C Ceramic 100 min 120x295x110mm 440x555x500mm 41kg
    4/900 LSC21 4 l + 10-900 ° C 900 ° C Ceramic 100 min 120x295x110mm 440x605x500mm 41 kg
    7,2/1100 LSC01 7,2 l + 10-1100 ° C 1100 ° C Ceramic 150 min 195x295x120mm 445x590x525mm 50 kg
    7,2/1100 LSC21 7,2 l + 10-1100 ° C 1100 ° C Ceramic 150 min 195x295x120mm 445x640x525mm 50 kg
    7,2/900 LSC01 7,2 l + 10-900 ° C 900 ° C Ceramic 130 min 195x295x120mm 445x590x525mm 51 kg
    7,2/900 LSC21 7,2 l + 10-900 ° C 900 ° C Ceramic 130 min 195x295x120mm 445x640x525mm 51 kg
    8,2/1100 LHM01 8,2 l + 10-1100 ° C 1100 ° C Fiber muff 50 min 195x310x135mm 445x710x495mm 28 kg
    8,2/1100 LHM21 8,2 l + 10-1100 ° C 1100 ° C Fiber muff 50 min 200x300x133mm 440x620x510mm 28 kg





    Model Capacity Temp. Max [° C]
    12/1100 LSC01 12 l 1100 ° C
    12/900 LSC01 12 l 900 ° C
    15/1100 LSC01 15 l 1100 ° C
    15/900 LSC01 15 l 900 ° C
    13/1100 LHM21 13 l 1100 ° C
    22/1100 LHM21 22 l 1100 ° C
    3/1100 LHM21 3 l 1100 ° C
    39/1100 LHM21 39 l 1100 ° C
    4/1100 LSC01 4 l 1100 ° C
    4/1100 LSC21 4 l 1100 ° C
    4/900 LSC01 4 l 900 ° C
    4/900 LSC21 4 l 900 ° C
    7,2/1100 LSC01 7,2 l 1100 ° C
    7,2/1100 LSC21 7,2 l 1100 ° C
    7,2/900 LSC01 7,2 l 900 ° C
    7,2/900 LSC21 7,2 l 900 ° C
    8,2/1100 LHM01 8,2 l 1100 ° C
    8,2/1100 LHM21 8,2 l 1100 ° C
