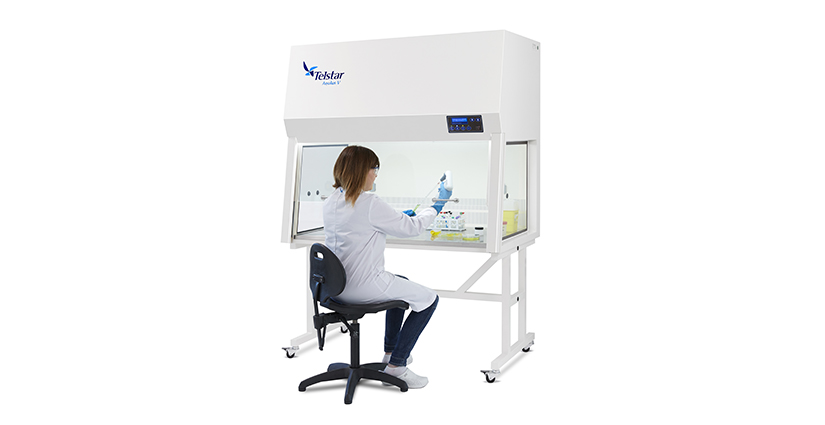

Laminar Flow Vertical Airflow Hoods Aeolus V

Choose Models for offer request

Intended

  • Highest product protection
  • Working area compliant with ISO 14644-1 (Class 3)
  • Airflow velocity sensor
  • Available in sizes: 90cm, 120cm, 150cm, 180cm
  • Side panels made of tempered glass
  • Large working surface
  • Digital controller with a large LCD display
  • Alarm LEDs
  • Front sliding glass window, manual operation

The Aeolus series represents a generation of laminar flow hoods known for their high quality, low noise level, and ergonomic design.

Telstar Aeolus V laminar flow hoods offer high product safety with a uniform laminar airflow while processing products that require a spacious working area. •

With a stainless steel work surface, a large workspace, and side panels providing ample lighting, Telstar hoods offer optimal working conditions and minimal energy consumption.

High-Quality Components:

  • External chamber elements coated with a polymeric resin-based coating
  • Polished stainless steel AISI-304 work surface
  • HEPA filter protected by a laminar screen for even airflow
  • Laminar screen protecting the HEPA filter
  • Fixed side walls, sturdy, made of tempered glass resistant to UV light radiation
  • Front sliding glass window made of tempered glass resistant to UV light radiation

Ergonomic Design:

  • Easy to clean and disinfect due to the absence of protruding elements or parts in the main structure
  • LED lighting provides uniform illumination and reduces eye strain
  • Low noise level
  • User-friendly intuitive control panel

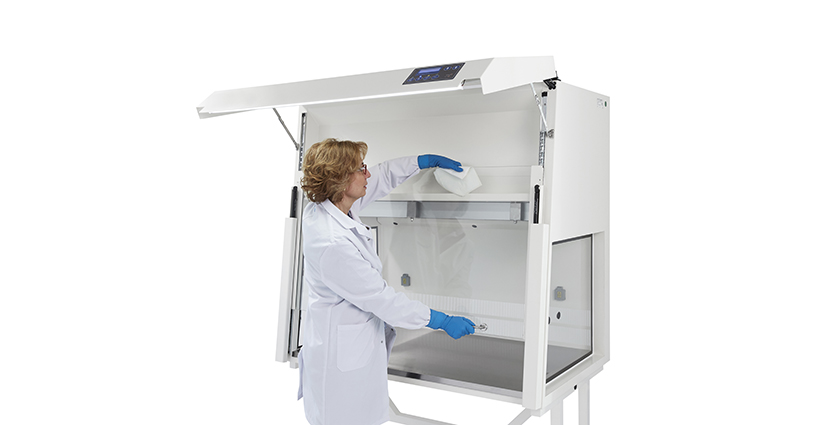

  • Front access to the HEPA filter
  • Wide stainless steel work surface designed as a tray to prevent potential liquid spills

Environmentally Friendly:

  • Very low energy consumption achieved through:
  • EC motors
  • LED lighting
  • Standby mode function
  • Pre-filter (G3) prevents dust, dirt, and particles from entering the HEPA filter, significantly extending its lifespan

Flexibility:

  • Four models available in different widths
  • Wide range of options and accessories

Control Panel with Alarms and Parameters: Equipped with an LCD display featuring:

  • ON/OFF button and LED indicators
  • Airflow velocity selection: working mode or standby mode
  • UV button for activating UV lighting and setting the working time (UV lamp option)
  • LED indicators on the control panel show status: LED lighting, UV lighting, filter clogging
  • Real-time airflow velocity display and hours counter for UV lamp and fan
  • Visual and audible alarms
  • Software available in English, Spanish, French, German, Japanese, and Dutch

Features:

  • Laminar flow hoods with vertical airflow (air is drawn from the surrounding area through a G3 pre-filter by a motor blower and pushed through the HEPA filter to create a horizontal laminar airflow over the working surface).
  • Manufactured in compliance with ISO 14644-1 Class 3
  • Product safety assured
  • Continuous monitoring of airflow velocity using an anemometric sensor
  • Airflow velocity: 0.36 m/s



Standard Equipment:

  • Pre-filter (G3) to prevent the entry of dust, dirt, and particles into the HEPA filter, significantly extending the HEPA filter's lifespan, performance in accordance with EN779
  • HEPA H14 main filter with 99.995% efficiency according to EN1822 MPPS method (99.999% D.O.P. test with 0.3μm particles), protected by a laminar screen ensuring a highly uniform airflow • LED lighting, providing even chamber illumination, reducing eye fatigue
  • Two 230V, 50Hz electrical sockets
  • EC motor-driven fan(s) • 4 holes in the chamber's side walls
  • Stainless steel work surface
  • Tempered front sliding glass window, manually operated



Optional Equipment:

  • Epoxy-painted steel frame for the chamber with 770mm high adjustable feet
  • Epoxy-painted steel frame for the chamber with 900mm high adjustable feet
  • Set of casters for the frame
  • Gas valve
  • Vacuum valve
  • Oxygen valve
  • Inert gas valve
  • Compressed air valve
  • Water valve
  • UV lighting
  • Burner
  • FAT and SAT documentation
  • IQ and OQ protocols

Models

Aeolus V3

Aeolus V4

Aeolus V5

Aeolus V6

External dimensions

WxDxH (mm)

1048x798x1220

1353x798x1220

1658x798x1220

1963x798x1220

Internal dimensions

WxDxH (mm)

925x693x615

1230x693x615

1535x693x615

1840x693x615

Weight

kg

140

160

185

210

Flow rate

m/s

0.36

0.36

0.36

0.36

Power

W

112

123

166

188

Illumination

luks

1200

1500

1500

1700

Noise level

DB (A)

55

55

55

55






Model Scale Power
Aeolus V3 laminar flow cabinet cat. no: 1511963 140 kg 112 W
Aeolus V4 laminar flow cabinet cat. no: 1511964 160 kg 123 W
Aeolus V5 laminar flow cabinet cat. no: 1511965 185 kg 166 W
Aeolus V6 laminar flow cabinet cat. no: 1511966 210 kg 188 W
