  • Class III safety laminar flow cabinets
  • Designed and constructed in accordance with EN 12469 standard
  • HEPA H14 filters
  • Option to equip with additional gas-tight valves for inlet and outlet

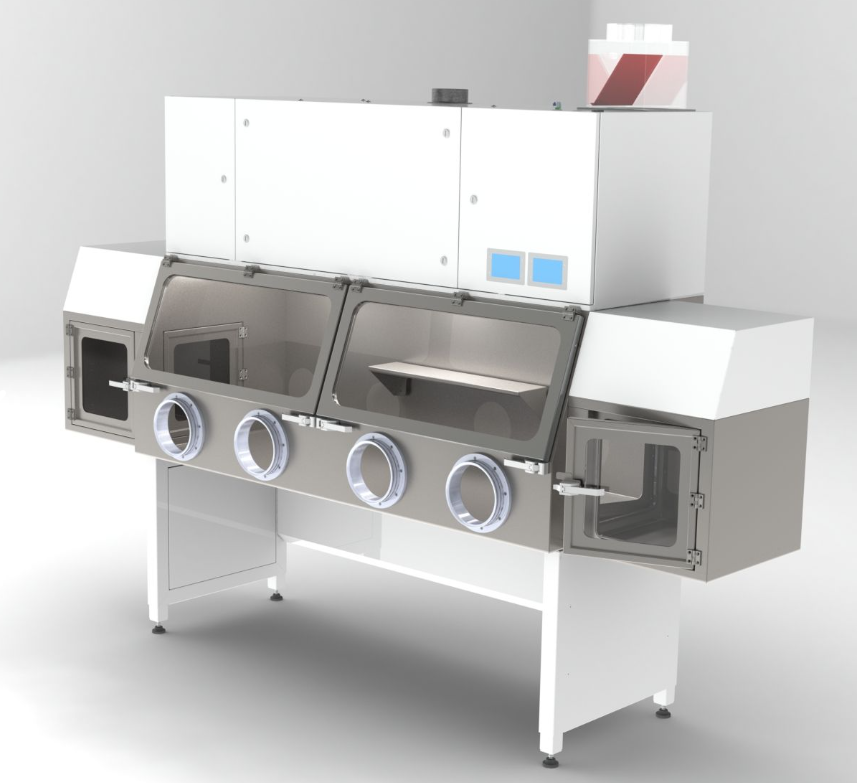

Class III Safety Laminar Flow Cabinets - n-SAFE Class III

Nordic LabTech's Class III safety laminar flow cabinets have been designed and constructed in accordance with the EN 12469 standard. Made from stainless steel, the cabinet features large glove ports to ensure optimal ergonomics. It is equipped with HEPA H14 filters both on the inlet and outlet, with the option for dual HEPA extraction as well. Gas-tight valves can also be installed on both the inlet and outlet. The cabinet provides easy access to all technical components at the front.

Optional transfer hatches on one or both sides allow for the safe transfer of samples or products. It can also be connected to a Class II laminar flow cabinet.


TECHNICAL SPECIFICATION:

TECHNICAL SPECIFICATION

DIMENSIONS

EXTERNAL DIMENSIONS - WITHOUT BASE (W x D x H) [mm]

1003 x 798 x 1290
without frame

EXTERNAL DIMENSIONS - WITH BASE, TABLETOP AT HEIGHT (W x D x H) [mm]

1003 x 799 x 2050
without frame

INTERNAL DIMENSIONS (W x D x H) [mm]

1000 x 750 x 700

TRANSFER HATCH WIDTH  [mm]

500

FRONT DOOR WINDOW [mm]

950 x 400

WORKING HEIGHT, BASIC BASE [mm]

800 LUB 900 (±25)

WORKING HEIGHT, ADJUSTABLE BASE [mm]

700 - 1050

WORKING HEIGHT, ELECTRICALLY LIFTED BASE [mm]

700 - 1050

MINIMUM DOOR OPENING [mm]

800

FRONT OPENING DIAMETER [mm]

200

GENERAL TECHNICAL DATA

WEIGHT [kg]

210

AIRFLOW VELOCITY - INLET (WITHOUT GLOVES) [m/s]

> 0,7

NOISE ACCORDING TO EN 12469 STANDRD [dB(A)]

< 49

VENTILATION INLET / OUTLET [m3/h]

460

FILTERING TECHNOLOGY - INLET / OUTLET

HEPA H14 EN1822 (99.999% AT 0.3μm particle size)

LED LIGHTING - DIMMING ADJUSTEMNT [Lux]

0-2000

POWER SUPPLY [V/Hz]

220-240 / 50-60

OR

110-120 / 50-60

POWER CONSUMPTION [W]

90

Model Scale Dimensions
n-SAFE Class III 210 kg External (S x G x W) without base - 1003 x 798 x 1290 / Internal (S x G x W) 1000 x 750 x 700
