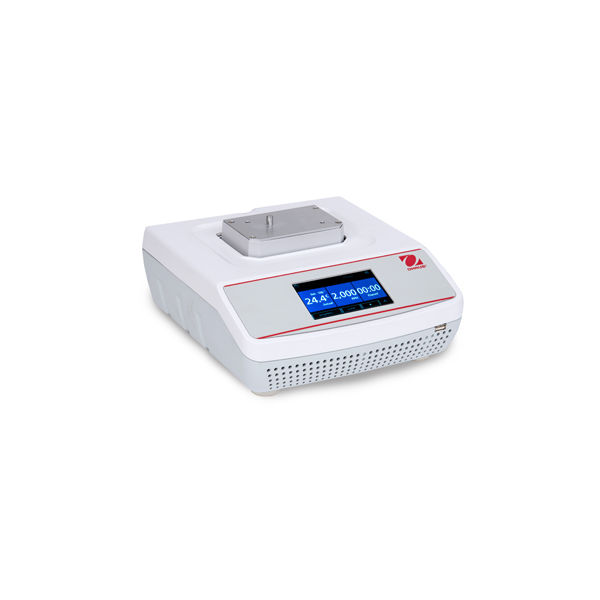

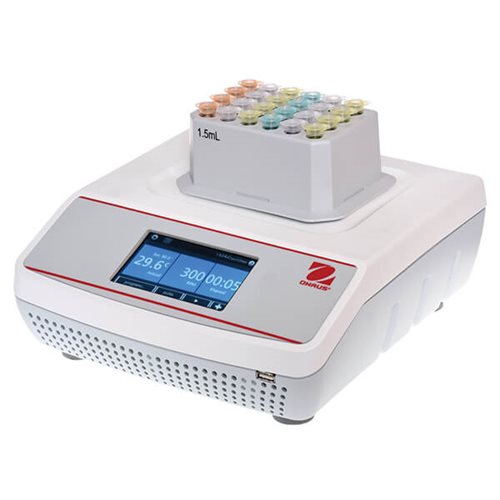

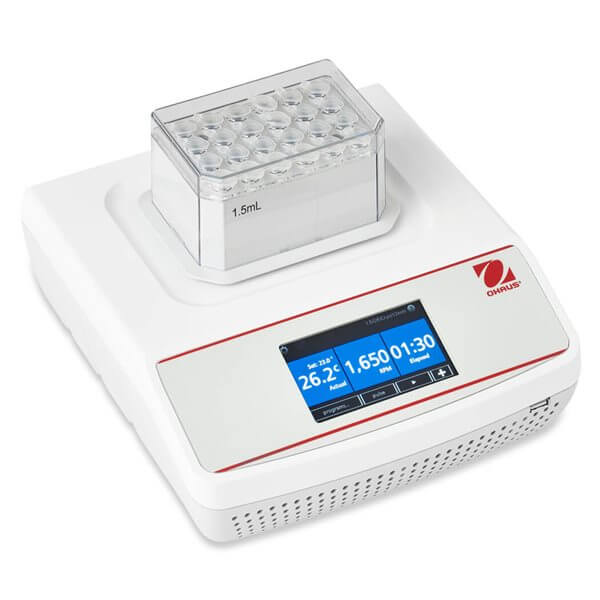

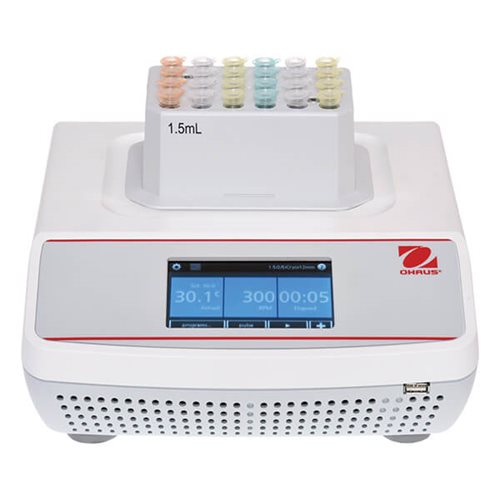

    Thermal cooling shaker with incubation

    Choose Models for offer request

    Product Sheet

    Intended

    • High temperature performance
    • High shaking speed
    • Intuitive touch screen
    • Interchangeable blocks

    • Characteristic

    • Available Models

    OHAUS Thermal Shakers are designed for heating and cooling applications that require consistent and precise high-speed shaking with dependable temperature control from 17°C below ambient to 100°C. Temperature can be user-calibrated when precision is required. Customize applications with interchangeable blocks to accommodate tubes & microplates. Intuitive touchscreen allows the user to view all steps of the program while monitoring the progress.



    Features:

    • Best-in-class temperature performance. Improved electronics and software allow fast and precise temperature control with great confidence. Cooling models reach temperatures up to 17°C below ambient temperature
    • Intuitive touchscreen for simple operation and programming. Functions and practical help screens can be displayed in one of six languages to make the device easy to use
    • Easy creation of programs for frequent use. Memory for five separate, 5-step programs. USB port allows easy transfer of test data to a flash drive for recording and storage

    Application:

    • DNA
    • RNA
    • Cell cultures
    • Hybridizations
    Protein studies

    Detailed Features:

    • The 4.3-inch LCD display (programmed in six languages), allows the user to save and track the progress of 5 user-defined programs, each consisting of 5 individual steps
    • USB port
    • Valox non-heating housing, removable plastic stand, lid and screwdriver for removing the block (included)
    • Hot area indicator
    • A number of alarms including: audible alarm, maximum temperature limitation function


    Technical specification:
    Model ISTHBLHTS / ISTHBLHTSN* ISTHBLCTS / ISTHBLCTSN*
    Type of shaker Thermal shaker Cooling thermal shaker
    Control Touch screen
    Movement Orbital, 3 mm
    Speed range [rpm]  300 – 3000
    Speed accuracy [%] ± 2
    Temperature range [°C] from +4 above ambient temperature to 100 from +17 above ambient temperature to 100
    Temperature accuracy [°C] +/- 1 between 20 - 45°C;
    +/- 2 above 45°C    		 +/- 0,5 between 20 - 45°C
    +/- 2 below 20°C and above 45°C
    Heating rate [°C/min]
    		 5
    Cooling rate [°C/min]                                2 – 3 above ambient temperature; 0,5 – 1,0 below ambient temperature
    Maximum load Single thermal block
    Timer from 1 sec to 99 hours, 59 min
    Display LCD 10,9 cm color touch screen
    Drive system brushless DC motor
    Dimensions [L x W x H] [mm] 269 × 262 × 137
    Powe+r [W] 210
    Catalog No 30392005 /30573848*   30391998/30573842*


    *The heating block is not included for this model.

    Model Speed ​​[rpm] Temperature [° C]
    ISTHBLHTS 300 - 3000 rpm from +4 above ambient temperature to 100
    ISTHBLHTSN 300 - 3000 rpm from +4 above ambient temperature to 100
    ISTHBLCTS 300 - 3000 rpm from +17 above ambient temperature to 100
    ISTHBLCTSN 300 - 3000 rpm from +17 above ambient temperature to 100
