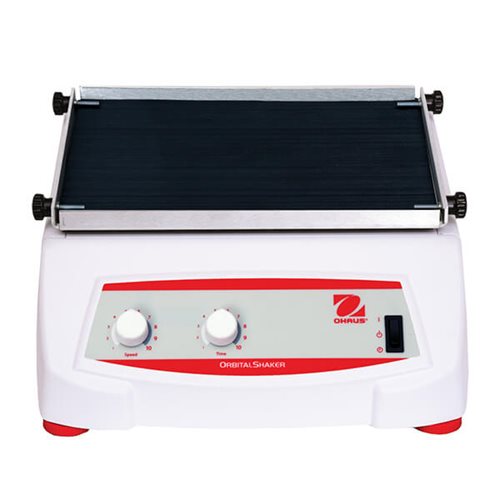

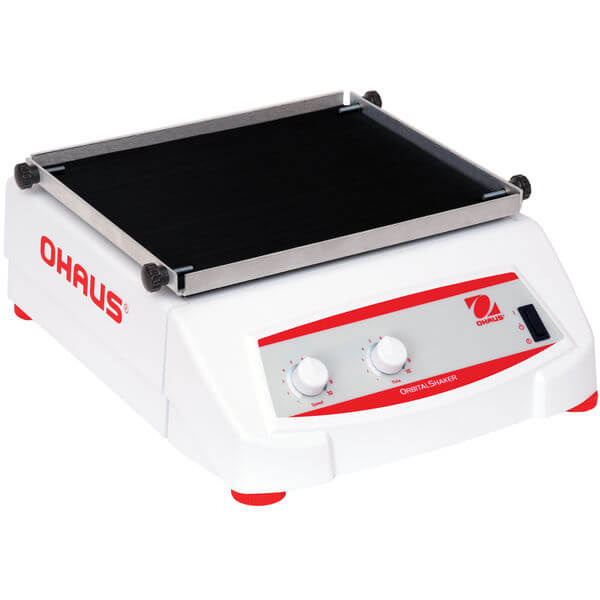

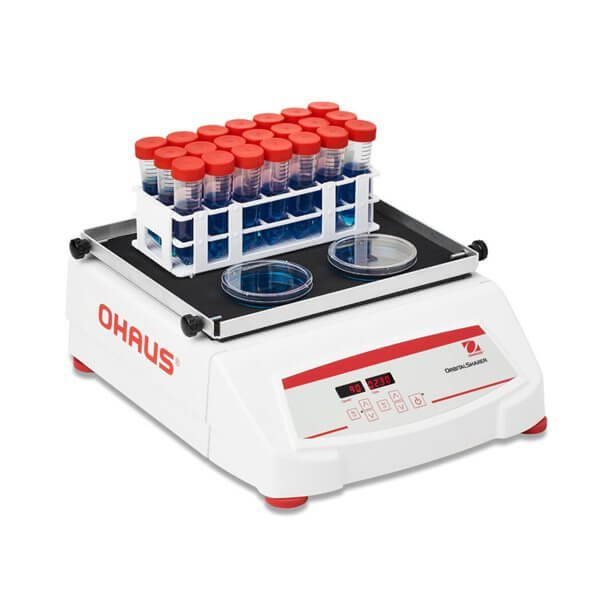

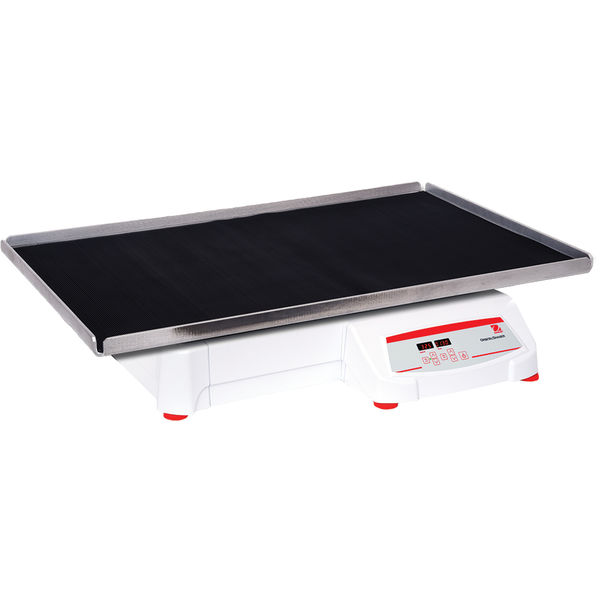

Heavy Duty Orbital Shaker
Choose Models for offer request
Intended
- Brushless DC motor
- Accu-Drive system
- Analog or digital control
- Orbital motion
Characteristic
Available Models
OHAUS Heavy Duty Shakers are designed to handle a wide range of applications no matter how difficult the task. Powerful, convenient shakers provide consistent orbital shaking action. Digital models offer accurate speed control for applications that demand repeatable results. Maximize throughput and efficiency in your laboratory – eight models with load capacities ranging from 16 to 68 kg. Non-digital models are an economical alternative.
Properties
- All models come with a tray and rubber mat, and can be customized with more than 70 optional accessories,
- The Accu-Drive shaking system available on digital shakers enables excellent speed control and ensures accuracy and durability,
- The optimized speed boost function allows the user to slowly reach the desired speed, which prevents splashing,
- Independent LED displays (speed/time) allow simultaneous viewing of both settings and control of the dials with applied graduations (analog models),
The RS232 interface allows two-way communication for data recording and device control (digital models).
Device features:
Application: Cell cultures, solubility tests, extractions, bacterial cultures, yeast suspensions and cultures, staining/decolorization, immunoassays, protein assays, labeling techniques
Display: Independent LED displays (speed/time) allow simultaneous viewing of both settings and control of the dials with applied graduations (analog models)
Power supply: detachable power cable (included)
Communication: RS232 interface allows two-way communication for data logging and device control (digital models)
Design Features: Built-in tray (28 x 33 cm) and non-slip rubber mat (included), cold rolled steel (CRS) construction.
Technical data:
| Model | SHHD1619AL | SHHD1619DG | SHHD2325AL | SHHD2325DG | SHHD4525DG | SHHD4550DG | SHHD6825DG | SHHD6850DG |
| Control | Analog | Digital | Analog | Digital | ||||
| Movement | Orbital, 19 mm | Orbital, 25 mm | Orbital, 51 mm |
Orbital, 25 mm |
Orbital, 51 mm |
|||
| Speed range [rpm] | 25 – 500 | 15 – 500 | 25 – 500 | 20 – 500 | 15 – 500 | 15 – 300 | 15 - 500 | 15 - 300 |
| Speed accuracy | n/a | Above 100 rpm ± 1% of the set speed, below 100 rpm ± 1 rpm |
n/a | above 100 rpm ± 1% of the set speed, below 100 rpm ± 1 rpm |
||||
| Timer | from 1 min to 120 min |
from 1 sec to 160 h |
from 1 min to 120 min |
from 1 sec to 160 h |
||||
| Max load [kg] | 16 | 22.7 | 45.4 | 68 | ||||
| Drive system | brushless DC motor; triple eccentricity | |||||||
| Included tray [L × W] mm |
279 × 330 | 457 × 610 | 610 × 610 | 610 × 910 | ||||
| Power [W] | 75 | 80 | ||||||
| Catalog No | 30391802 | 30391811 | 30391837 | 30391844 | 30391865 | 30391872 | 30391879 | 30391886 |
| Model | Speed [rpm] |
|---|---|
| SHHD1619AL | 25 - 500 rpm |
| SHHD1619DG | 15 - 500 rpm |
| SHHD2325AL | 25 - 500 rpm |
| SHHD2325DG | 20 - 500 rpm |
| SHHD4525DG | 15 - 500 rpm |
| SHHD4550DG | 15 - 300 rpm |
| SHHD6825DG | 15 - 500 rpm |
| SHHD6850DG | 15 - 300 rpm |
