Cooling orbital shaker with incubation

Choose Models for offer request

Intended

  • Cooling function
  • Ability to incubate samples
  • Temperature calibration
  • Brushless DC motor

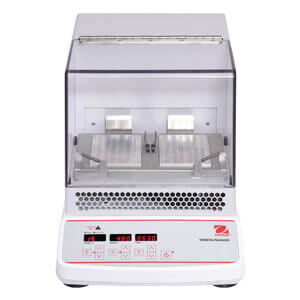

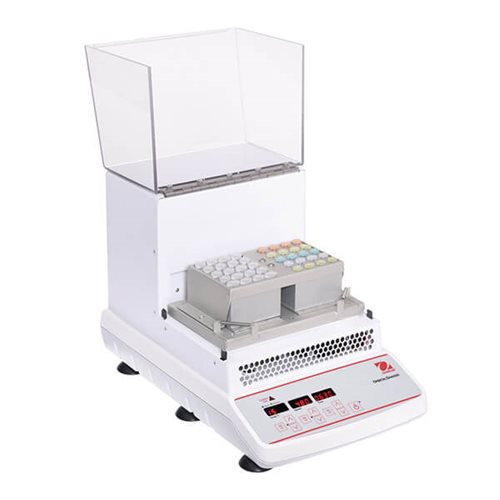

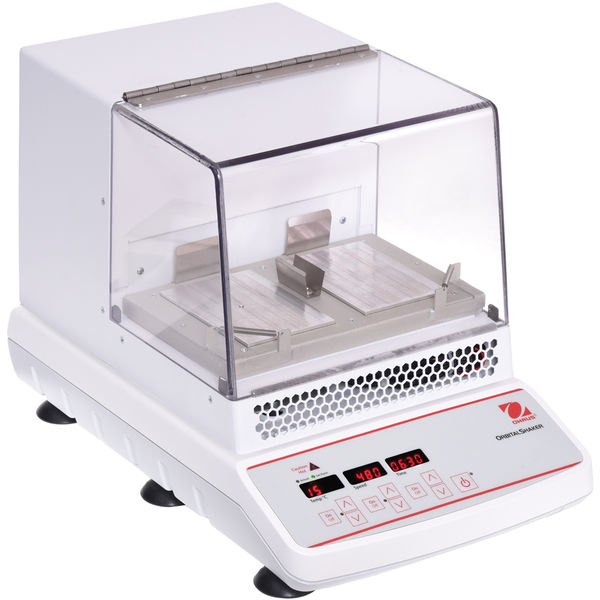

OHAUS Incubating Cooling Shakers are innovatively designed to incubate samples from 10°C below ambient to 65°C providing accurate and repeatable results. All models feature independent displays with intuitive touchpad controls and include safety features that protect both the user and samples. Sturdy shakers feature triple eccentric drive systems for stable orbital motion with microprocessor-control for reliable shaking action.


Properties:

  • Our shakers are designed for a variety of applications and are microplate-ready - requiring no accessories and can easily accommodate modular blocks with a block adapter,
  • When precision is required, a unique temperature calibration function for sensitive applications will help achieve the set temperature. Digital control will ensure reliability and repeatable shaking speed.
  • The innovative thermal system allows you to quickly and accurately achieve the desired temperature and gives you confidence. The unique Peltier design with direct plate-to-sample contact offers precise heating and cooling.


Applications

Test Immunoassays, hybridizations, cell cultures, bacteria, yeast cultures and suspensions, test ELISA, PCR, enzyme reactions.


Detailed Features:

Programs: Test Immunoassays, hybridizations, cell cultures, bacteria, yeast cultures and suspensions, test ELISA, PCR, enzyme reactions.

Display: Clear and independent LED displays for temperature, speed and time allow simultaneous viewing of all settings,

Power: Detachable power cable (included),

Communication: N/A.

Construction: cast aluminum housing with polycarbonate cover, brushless DC motor,

Design features: Flood-resistant design, overload protection, high temperature indicator.




Technical specification:

Model ISICMBCDG*
Control Digital
Movement Orbital, 3 mm
Speed range 100 – 1200 rpm
Speed accuracy ± 2%
Temperature range from 10°C below ambient temperature to 65°C
Temperature stability ± 0,5°C at 37°C
Max load 2 microplates or 2 module block
Timer from 1 sec to 160 h
Drive system brushless DC motor; triple eccentricity
Dimensions [L x W x H] 419 × 257 × 279 mm
Power 160 W
Catalog No 30391940
Model Speed ​​[rpm]
ISICMBCDG 100 - 1200 rpm
