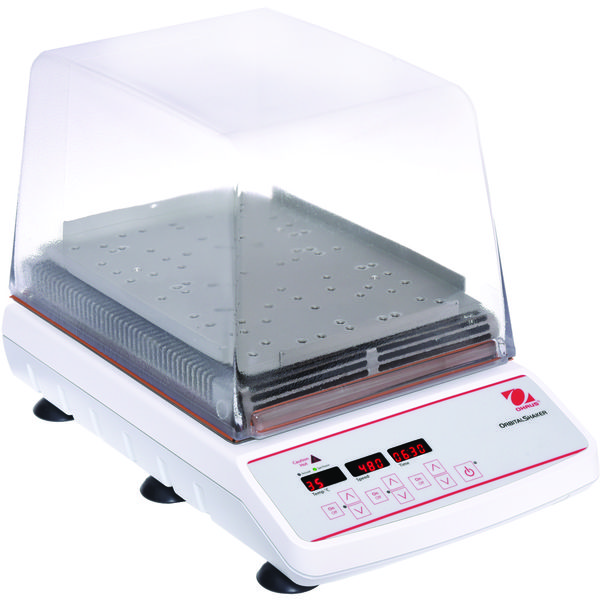

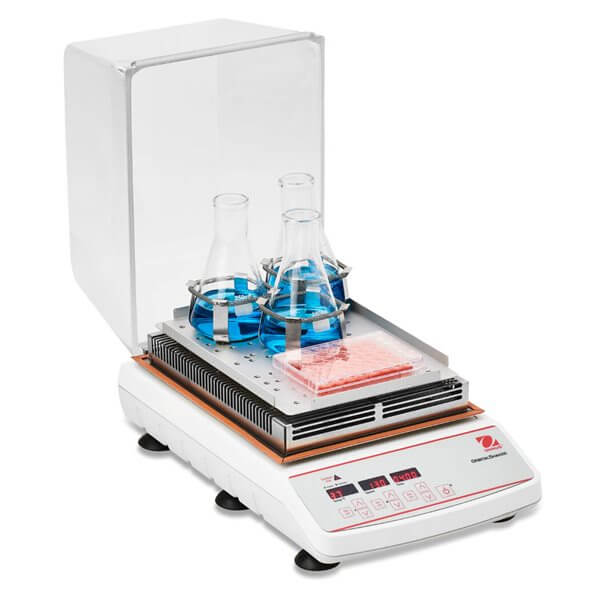

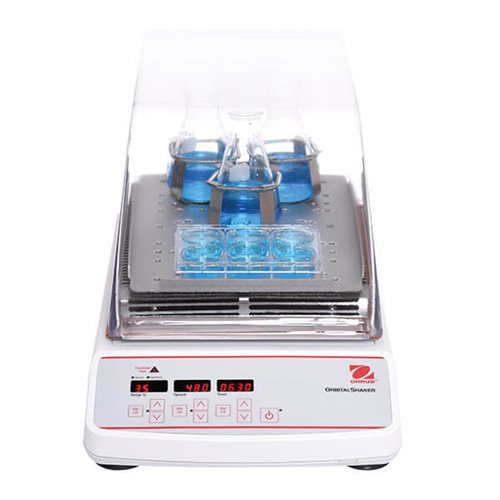

Light Duty orbital shaker with incubation

Choose Models for offer request

Intended

  • Orbital motion
  • Digital control
  • Incubation capability
  • Temperature calibration function

OHAUS Incubating Light Duty Shakers are innovatively designed to incubate samples, providing accurate and repeatable results. All models feature independent displays with intuitive touchpad controls and include safety features that protect both the user and samples. These sturdy shakers feature triple eccentric drive systems for stable orbital motion with microprocessor-control for reliable shaking action.

Features:

  • These shakers are designed for a variety of applications and have a capacity of 4 kg, which includes a ready-to-use tray with more than 10 easy-to-install accessories.
  • When precision is required, a user calibration function will help achieve the set temperature temperature by the user for sensitive applications. Digital control will ensure reliability and repeatable shaking speed.

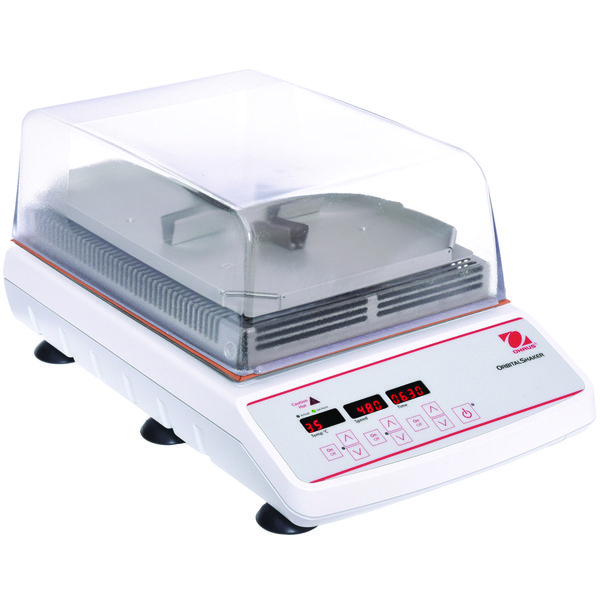

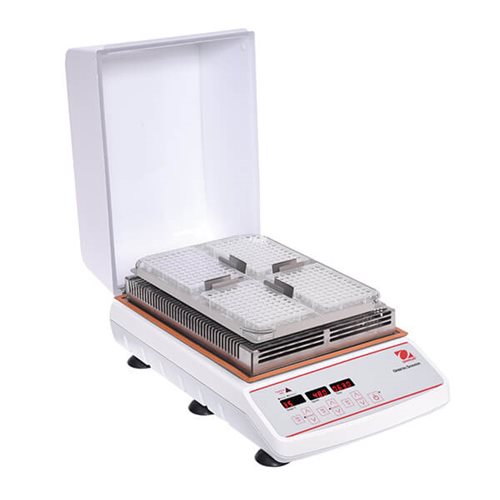

  • The microplate shaker will accommodate up to 4 microplates or well plates or allow you to easily install 2 microplate racks. 2 options - opaque lid for light-sensitive samples and transparent lid for viewing samples.

Applications:

 Programs: Test Immunoassays, hybridizations, cell cultures, bacteria, yeast cultures  and suspensions, test ELISA, PCR, enzyme reactions.

 Display: Clear and independent LED displays for temperature, speed and time allow all settings to be viewed simultaneously,

 Power: Detachable power cord (included),

 Communication: N/A.

 Construction: cast aluminum housing with polycarbonate cover, brushless DC motor,

 Design features: Flood-resistant design, overload protection, high temperature warning indicator.


Technical data:

Model * ISLD04HDG ISLDMPHDG ISLDMPHDGL
Product description Light Duty orbital shaker with incubation Incubation shaker for microplates Incubator shaker for microplates with opaque lid
Control Digital
Movement Orbital, 3 mm
Speed range 100 – 1200 rpm
Speed accuracy ± 2%
Temperature range from + 5°C above ambient temp. to 65°C
Temperature stability ± 0,5°C at 37°C
Max. load 3,6 kg 4 microplates or 2 microtubes racks
Timer from 1 second to 160 hours
Drive system brushless DC motorl triple eccentricity
Tray dimensions [L x W x H] 279 × 197 mm
Power 450 W
Catalog No 30391919 30391933 30391926

* Detachable power cable (included).

Model Description
ISLD04HDG Light Duty orbital shaker with incubation
ISLDMPHDG Shaker with incubation for microplates
ISLDMPHDGL Incubation shaker for microplates with opaque lid
