Orbital shaker S20/S26
Choose Models for offer request
Intended
- Universal shaker with orbital motion
- Electronic speed regulation
- Timer function
Characteristic
Available Models

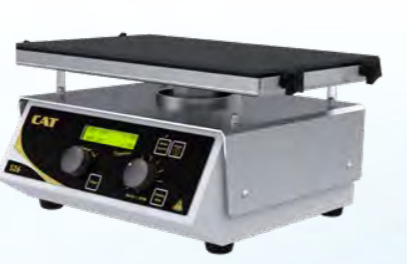

CAT S 26 – Universal shaker
This powerful orbital shaker is perfectly suited to shake separating funnels, Erlenmeyer flasks and culture bottles (250ml, 500ml and 1000ml). The microprocessor technology of this shaker provides data transfer via RS 232 interface for full computer control. A special indexing mechanism stops the shaking platform always in a certain position. The unit is driven by a brushless motor. These maintenance-free motors are designed for continuous operation.
CAT S 20 – Universal shaker
Universal shaker. Due to its 5 different shaking attachments this multi-use shaker covers a huge variety of shaking applications from Petri dishes to test tubes or even 1l Erlenmeyer flasks. Each accessory is sold separately, making the device versatile and adaptable to individual laboratory needs.
| Technical data | S20 | S26 |
| Speed [1/min] | 100 - 1100 | 60 – 1100 |
| Type of movement | orbitral | orbitral |
| Shaker orbit [mm] | 3.0 | 3.0 |
| Timer | yes | yes |
| Display | no | LCD |
| Interface | no | RS232 |
| Premissible load on the platform [kg] | 3.0 | 1.5 |
| Weight [kg] | 4.1 | 6.9 |
| Dimensions [W x D x H] [mm] | 145 x 180 x 130 | 280 x 170 x 245 |
| Model | Other | Rotational speed [rpm] |
|---|---|---|
| S20 | Shaker orbit 3 mm | 100-1100 |
| S26 | Shaker orbit 3 mm | 60 – 1100 |
