SNOL multi-chamber ovens LSP/LSN

Choose Models for offer request

Intended

  • shape-2601
  • shape-2686
  • shape-2601
  • shape-2686
  • economical
  • made of high quality materials
  • temperature up to 200°C

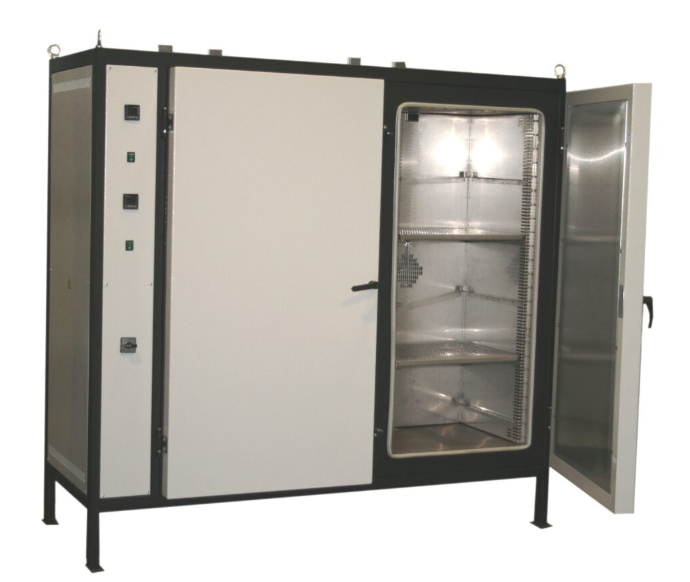

SNOL multi-chamber ovens up to 200°C

SNOL electric large chamber furnaces are designed for thermal processing, drying, preheating and other thermal processes of various materials and parts. It can be used in scientific laboratories, educational institutions, medicine and industry. Forced air circulation allows for uniform temperature distribution during all processes for optimum results.

Features of basic models:
  • kchamber made from mild or stainless steel,
  • control panel is placed in the underpart of the furnace,
  • controllable valve for air exchange in the chamber,
  • door opens to the side,
  • equipped witn non-programmable controller Omron E5CC,
  • natural air circulation,
  • hermetically sealed doors,
  • OTP (over temperature protecyion),
  • outside casing - metal sheet, powder painted grey,
  • shelves, 2 pcs.,
  • 1 year warranty
Optional equipment:
  • additional shelves,
  • buzzer,
  • calibration of temperature measurement system,
  • data communication/USB,
  • digital timer,
  • fan speed controller,
  • metal tray,
  • outside casing made from stainless steel,
  • process observation window,
  • reinforced shelves,
  • table for supporting the oven
Models:
Model Vol. [l] Tmax [°C] Chamber dimensions W x D x H [mm] Overall dimensions W x D x H [mm] Power [kW] Voltage [V]
SNOL 4x80/200 LSP18
mild steel chamber
4x80 200 500 x 400 x 400 1910 x 925 x 1950 18 400
SNOL4x80/200 LSN18
stainless steel chamber
4x80 200 500 x 400 x 400 1910 x 925 x 1950 18 400
SNOL 2x240/200 LSP11
mild steel chamber
2x240 200 500 x 400 x 1200 1500 x 960 x 1715 24 400
SNOL 2x240/200 LSN11
stainless steel chamber
2x240 200 500 x 400 x 1200 1500 x 960 x 1715 24 400
Model Capacity Temperature [° C]
SNOL 4x80/200 LSP18 4 x 80 l 200°C
SNOL4x80/200 LSN18 4 x 80l 200°C
SNOL 2x240/200 LSP11 2 x 240 l 200°C
SNOL 2x240/200 LSN11 2 x 240 l 200°C
