Shaker for extreme conditions
Choose Models for offer request
Intended
- In extreme environments
- Orbital motion
- Remote controller
- Speed from 15 to 500 rpm
Characteristic
Available Models

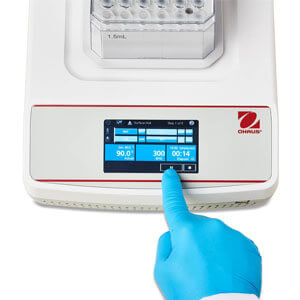

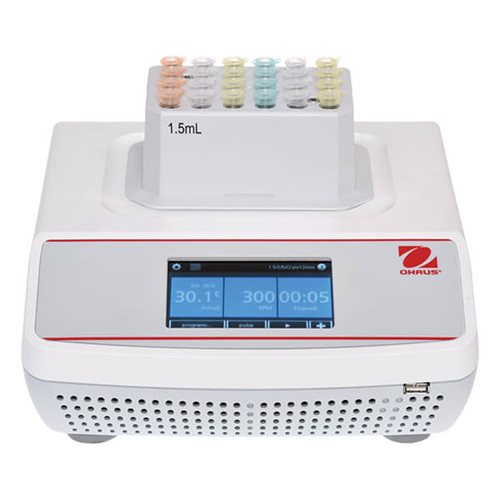

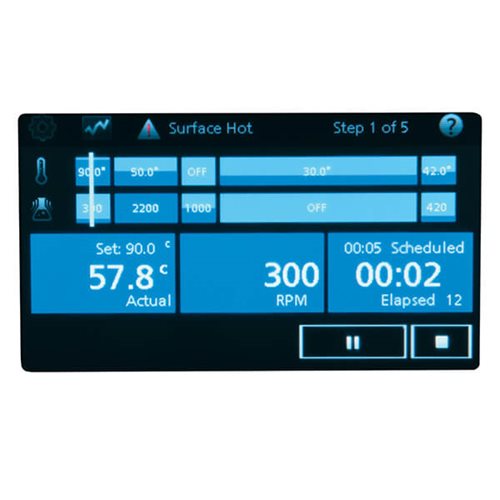

OHAUS Thermal Shakers are designed for heating and cooling applications that require consistent and precise high-speed shaking with dependable temperature control from 17°C below ambient to 100°C. Temperature can be user-calibrated when precision is required. Customize applications with interchangeable blocks to accommodate tubes & microplates. Intuitive touchscreen allows the user to view all steps of the program while monitoring the progress.
Special features:
- Unique design that enables superior speed control and ensures accuracy and durability even in the most extreme environmental conditions
- Best-in-class max load ensures maximum incubator performance. With more than 50 accessories, the extreme environment shaker can be customized for your specific application
- The unique Accu-Drive shaking system provides precise speed control, resulting in reproducible results.Triple eccentric drive ensures smooth, stable shaking throughout the speed range
Application:
- Cell cultures, solubility assays, extractions, bacterial cultures, yeast suspensions and cultures, staining/decolorization, immunoassays, protein assays, labeling techniques
- Independent speed/time LED displays allow both settings to be viewed simultaneously
- Detachable power cable (included)
- RS232 interface allows two-way communication for data logging and device control (digital models)
- Cold-rolled steel (CRS) and stainless steel construction, external control module, thin ribbon cable (1.7 m) easily fits under the door or in the utility port of the incubator
- Built-in tray (28 x 33 cm) and non-slip rubber mat (included)
Technical specification
| Model | ISTHBLHTS / ISTHBLHTSN* | ISTHBLCTS / ISTHBLCTSN* |
| Type of shaker | Thermal shaker | Thermal shaker with cooling |
| Control | Touch screen | |
| Movement | Orbital, 3 mm | |
| Speed range [rpm] | 300 – 3000 | |
| Speed accuracy [%] | ± 2 | |
| Temperature range [°C] | from +4 above ambient temperature to 100 | from +17 above ambient temperature to 100 |
| Temperature accuracy [°C] | +/- 1 between 20 - 45°C; +/- 2 above45°C |
+/- 0,5 between 20 - 45°C +/- 2 below 20°C above 45°C |
| Heating rate [°C/min] | 5 | |
| Cooling rate [°C/min] | 2 – 3 above ambient temperature, 0,5 – 1,0 below ambient temperature |
|
| Max load | single thermal block | |
| Timer | from 1 sec to 99 h and 59 min | |
| Display | LCD 10,9 cm color touch screen | |
| Drive system | brushless DC motor | |
| Dimensions [L x W x H] [mm] | 269 × 262 × 137 | |
| Power [W] | 210 | |
| Catalog No | 30392005 /30573848* | 30391998/30573842* |
*The heating block is not included for this model.
| Model | Temperature range [° C] |
|---|---|
| ISTHBLHTS | from +4 above ambient temperature to 100 |
| ISTHBLCTS | from +17 above ambient temperature to 100 |
