Matrix orbital shaker
Choose Models for offer request
Intended
- RPM range up to 3000 rpm
- Orbital motion
- Timer and continuous operation
- Possibility of heating, cooling and mixing
Characteristic
Available Models

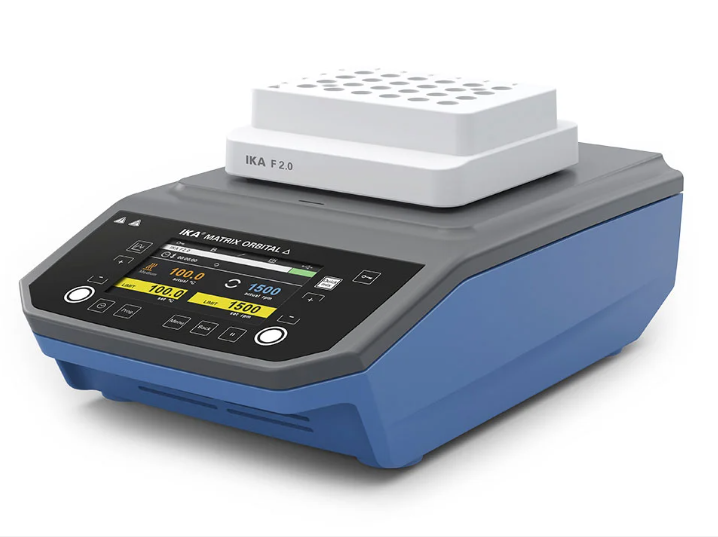

The IKA Matrix Orbital is part of a new and powerful product family of thermoshakers available. IKA Matrix Orbital mixes and is suitable for variable inserts. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.
In addition, IKA Matrix Orbital comes with numerous user-friendly features:
- Large and clear display with a convenient menu structure allows for intuitive operation
- Speeds of up to 3,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
- Speed adjustment according to insert, attachment and filling volume
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
| Technical data | Matrix orbital | Matrix orbital Delta FP/F 0.5 | Matrix orbital Delta F1.5/F2.) | Matrix Delta + | Matrix Orbital Delta + |
| Functions | blending | blending, heating | blending, heating | heating, cooling | blending, heating, cooling |
| Type of movement | orbital | orbital | orbital | - | orbital |
| RPM range | 300-3000 rpm | 2000 rpm | 1500 rpm | - | 300-3000 rpm |
| Temperature range | - | RT + 5 °C-100 °C | RT + 5 °C-100 °C | RT -30 °C-110 °C | RT +5 °C-100 °C |
| Premissable shaking weight (with cap) | 0,3 kg | 0,3 kg | 0,3 kg | 0,3 kg | 0,3 kg |
| Work mode | Timer and continuous operation | Timer and continuous operation | Timer and continuous operation | Timer and continuous operation | Timer and continuous operation |
| Dimensons [L x W x H] | 200 x 120 x 320 mm | 220 x 150 x 350 mm | 200 x 150 x 350 mm | 200 x 125 x 350 mm | 200 x 125 x 350 mm |
| Protection class according to DIN EN 60529 | IP 21 | IP 21 | IP 21 | IP 21 | IP 21 |
| Model | Description |
|---|---|
| Matrix orbital | 300-3000 rpm |
| Matrix orbital Delta FP/F 0.5 | 2000 rpm |
| Matrix orbital Delta F1.5/F2.) | 1500 rpm |
| Matrix Delta + | --- |
| Matrix Orbital Delta + | 300-3000 rpm |
