TLV-PD Autoclaves
Choose Models for offer request
Intended
- The integrated steam generator
- Touch control panel
- Antibacterial filter
- Computer connectivity
- Exhaust gas filtration
Characteristic
Available Models
TLV-PD Autoclave Series with Super Drying System
The TLV-PD series of autoclaves is the perfect solution for solid item sterilization due to its drying system. It offers versatility for both solid items and liquids. The TLV-PD series is the laboratory's best ally when it comes to sterilizing all types of solid products, such as glass, plastic vials, porous or empty materials, both packaged and unpackaged, in a safe, fast, and verifiable manner.
Key Features:
- Integrated steam generator (separated within the housing) with automatic drainage
- 7-inch capacitive color touchscreen
- Computer connectivity, cloud access, intranet, LIMS
- Bactericidal filter
- Automatic locking/unlocking system with mechanically assisted doors
- Wheels with brakes
- Exhaust air filtration
- Water-cooled discharge
- Water ring pump for quick initial and subsequent vacuum cycles

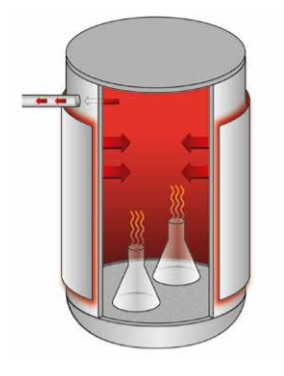

- Heating jacket for the drying cycle
| Technical specification | TLV PD |
|
Operating Temperature Range |
100 - 140 ºC |
|
Maximum Temperature/Pressure |
143 ºC / 2,9 barg |
|
Integrated steam generator separated in the housing |
yes |
|
Fast cooling |
no |
|
Exhaust air filtration |
yes |
|
Auto-refill: automatic supply of purified water for steam generation |
yes |
|
Construction of the lid and pressure vessel |
316 l |
|
Automatic microprocessor control |
yes |
|
Water ring vacuum pump |
yes |
|
Internal radial fan |
no |
|
Flexible PT-100 temperature sensor |
no |
|
Number of sterilization programs |
50 |
|
Calculation of FO values in combination with a flexible PT-100 sensor |
no |
| Model | Dimensions | Capacity | Scale | Voltage |
|---|---|---|---|---|
| TLV PD 50 | 400 x 450 mm | 56 l | 140 Kg | 230 (1P+N+E) V |
| TLV PD 75 | 400 x 650 mm | 81 l | 150 kg | 230 (1P+N+E) V |
| TLV PD 110 | 500 x 600 mm | 118 l | 195 Kg | 400 (3P+N+E) V |
| TLV PD 150 | 500 x 850 mm | 155 l | 210 Kg | 400 (3P+N+E) V |
