Autoclaves TLV basic
Choose Models for offer request
Intended
- Integrated steam generator
- Touch control panel
- Antibacterial filter
- Computer connectivity
- Exhaust filtration
Characteristic
Available Models
Multifunctional autoclave for sterilization of solids and liquids
The TLV Basic autoclaves are multifunctional devices designed for sterilizing both solid items and liquids. They are engineered to meet the basic sterilization needs in various types of industrial laboratories and educational institutions.
Key Features:

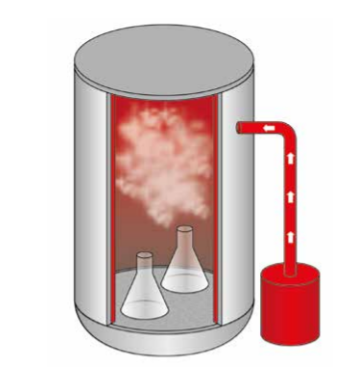

- Integrated steam generator (separated in the housing) with automatic drainage
- 7-inch capacitive color touchscreen
- Computer connectivity, cloud access, intranet, LIMS*
- Bacterial filter
- Automatic locking/unlocking system with mechanically assisted doors
- Wheels with brakes
- Exhaust air filtration
- Water cooling
| Technical specification | TLV Basic |
|
Operating Temperature Range |
100 - 140 ºC |
|
Maximum Temperature/Pressure |
143 ºC / 2,9 barg |
|
Integrated steam generator separated in the housing |
yes |
|
Fast cooling |
no |
|
Exhaust air filtration |
yes |
|
Auto-refill: automatic supply of purified water for steam generation |
yes |
|
Construction of the lid and pressure vessel |
316 l |
|
Automatic microprocessor control |
yes |
|
Water ring vacuum pump |
no |
|
Internal radial fan |
no |
|
Flexible PT-100 temperature sensor |
no |
|
Number of sterilization programs |
50 |
|
Calculation of FO values in combination with a flexible PT-100 sensor |
no |
| Model | Dimensions | Capacity | Scale | Voltage |
|---|---|---|---|---|
| TLV basic 50 | 400 x 450 mm | 56 l | 140 Kg | 230 (1P+N+E) V |
| TLV basic 75 | 400 x 650 mm | 81 l | 150 kg | 230 (1P+N+E) V |
| TLV basic 110 | 500 x 600 mm | 118 l | 195 Kg | 400 (3P+N+E) V |
| TLV basic 150 | 500 x 850 mm | 155 l | 210 Kg | 400 (3P+N+E) V |
