Wamed W-series chambers
Choose Models for offer request
- Forced air circulation
- PID controller
- Temperature setting in 0.1°C increments within a range of not less than +5°C above ambient temperature up to +250°C
- Accuracy of temperature stabilization at a point +/- 0.2°C
- Possibility to define 1 program
- Maximum program duration 99 h 59 min
- Possibility of continuous operation
- Possibility of viewing the set and current parameters during operation of the device (temperature)
- Autonomous control-independent protection against exceeding the temperature of the working range
- Acoustic alarm for exceeding the setting tolerance during operation
- Initiation of timekeeping when the set temperature tolerance is reached
- Stainless steel chamber
- 1 perforated stainless steel shelf
- Powder-coated white sheet steel casing
- Ventilation chimney
Characteristic
Available Models
Wamed's KBC-series dynamic chamber is designed for drying, annealing, and conducting research and laboratory experiments requiringelevated and fixed temperatures.
The unit, which uses forced air circulation, ensures even temperature distribution throughout the chamber's volume.
Dual independent protection systems protect against uncontrolled temperature rise.
Precise measurement is ensured by a mechanism for setting the temperature every 0.1°C and its stabilization at a point of +/- 0.2°C.
With the possibility of continuous operation and the function of current monitoring of the set and current parameters during operation, use becomes functional and efficient.
Additional options:
- setting the duration of the set temperature from 0.1 hours to 999.9 hours,
- possibility of cooperation with a printer,
- housing made of stainless steel powder lacquered in white color,
- housing painted in other agreed color,
- temperature setting up to 300°C,
- key lock,
- grommet for insertion of additional sensors,
- shelves made of perforated or solid sheet metal.
- door fixed on the left side,
- door with glass window,
- double doors, inner glass, outer sheet metal,
- sound signaling of the end of work
- sound signaling of open chimney
- sound signaling of open doors
- fan speed control
- possibility to turn off the fan
Comparison of available models:

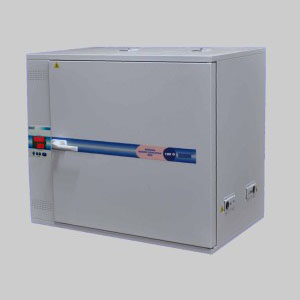

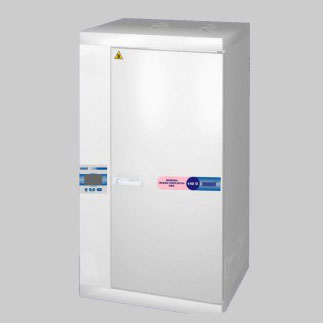

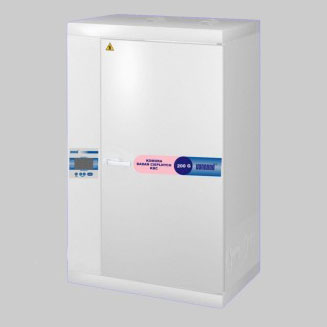

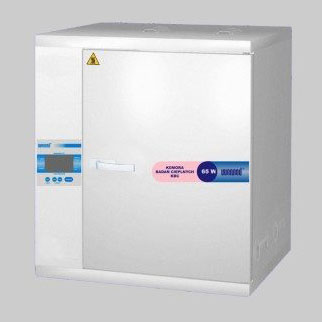

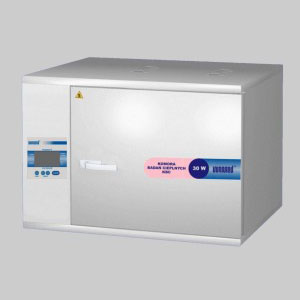

| Model | KBC 18W | KBC 30W | KBC 65 W | KBC 100W | KBC 140W | KBC 150 W | KBC 200W |
| Volume | 17 l | 39 l | 75 l | 115 l | 144 l | 150 l | 220 l |
| Rated power | 900 W | 1000 W | 1600 W | 2100 W | 2800 W | 2800 W | 2600 W |
| Air circultion | forced | ||||||
| Net weight | 25 kg | 36 kg | 46 kg | 58 kg | 80 kg | 80 kg | 90 kg |
| Housing dimensions | 430x420x 535 mm |
590x420x 535 mm |
590x670x 535 mm |
780x670x 535 mm |
590x1150x 535 mm |
950x670x 535 mm |
780x1150x 535 mm |
| Chamber dimensions | 200x270x 400 mm |
360x270x 400 mm |
360x480x 400 mm |
550x480x 400 mm |
360x960x 400 mm |
720x480x 400mm |
550x960x 400 mm |
| Shelves | 1 sheet metal shelf | 1 wire shelf | 2 wire shelves | 2 wire shelves | 3 wire shelves | 2 wire shelves | 3 wire shelves |
| Housing | stainless steel | ||||||
| Chamber | steel sheet powder coated white | ||||||
| Alarm | yes | ||||||
| Model | Capacity | Power | Mass |
|---|---|---|---|
| KBC 18W | 17 l | 900 W | 25 kg |
| KBC 30W | 39 l | 1000 W | 36 kg |
| KBC 65W | 75 l | 1600 W | 46 kg |
| KBC 100W | 115 l | 2100 W | 58 kg |
| KBC 140W | 144 l | 2200 W | 80 kg |
| KBC 150W | 150 l | 2800 W | 80 kg |
| KBC 200W | 220 l | 2600 W | 90 kg |
