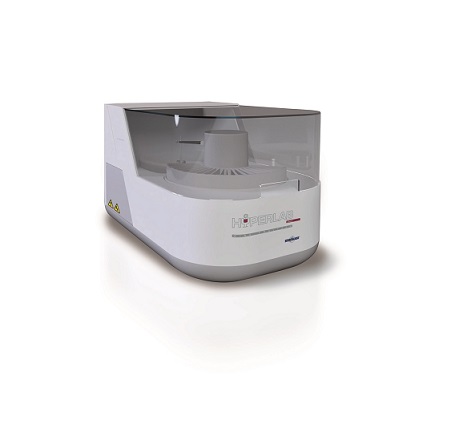

Hyperlab Smart multiparameter analyzer

Choose Models for offer request

Intended

  • Rapid analysis
  • Ultra compact
  • Minimal water consumption
  • Steel needle
  • Multiple devices can be managed from a single computer
  • Same Hyperlab Plus and Basic dilution system
Features:
- Dimensions: 40x60x38 cm
- 10 reagent items with 20 samples or alternatively 20 reagent items and 10 samples
samples;
- 4 reaction sectors with 24 cuvettes, 150 tests / h
- Same Hyperlab Plus and Basic dilution system
- Same Hyperlab Plus and Basic software (3 reagent management,
kinetic visualization, calibration equation, etc.),
- Possible to manage multiple devices from one computer;
- Control of cuvette insertion/use;

Available parameters:
ACETALDEHYD, OCTIC ACID, AMONIC ACID AND ± AZOTIC ACID, ANTHOCYANS, CALCIUM, CATECHINES, CHLORINE, CITRIC ACID, COPPER, D-GLUCONIC ACID, D & L ACTIC ACID, D & L MALIC ACID, ETANOL ( up to 2% by volume. ) GLUCOSE / FRUCTOSE, GLYCEROL, IRON, L- ASCORBIC ACID, MAGNESIUM, POTASSIUM, PROTEIN STABILITY (on wine) PIROGRONIC ACID
PYROGRONIC ACID, SO2 FREE and TOTAL, SUGAR, TARTARIC ACID, TOTAL polyphenols.

Technical data:
SIZE / WEIGHT
Height: 40 cm; Weight: 20 kg ; Depth: 60 cm ; Width: 38 cm.
POWER SUPPLY
100 - 240 V, 50/60 Hz single-phase
SAMPLING
1 sampling needle, needle stroke 75 mm; Capacitive liquid level detector
DILUTER SYRINGE
Long-lasting plunger; Syringe capacity, 368L; Syringe resolution, 0.07 ¼L;
REAGENT FEEDERS
Removable reagent rack 20 bottles, 38 ml or 15 ml; Optional multiple reagent trays with worklist automatically managed by software
SAMPLE FEEDERS
Removable tray, 10 numbered positions, 12 - 13 mm tubes, 5 - 7 ml / 1 ml cups;
Optional configuration: 10 reagent positions and 20 sample positions
ROTOR
4 reaction segments 24, disposable, optical cuvettes, total 96
REACTION CELLS
Optical path 9.5 mm, 275 - 500 ¼L response volume
OPTICAL GROUP
1 halogen lamp (6 V, 10 W) with extended UV emission; 10-position filter disc
PIPETING
Volume: sample, 2 - 300 ¼L; reagent, 2-350 ¼L; Precision: 1.5 CV% at 2 ¼L; 1 CV% at 4 ¼L
REACTION
Reaction volume, 300 - 500 ¼L; Automatic test repeat with dilution
CONSERVATION
Procedures programmed by component life counters; Simple annual maintenance procedure
REPORTS
Automatic post-test sample reports; Single test, full sample, Worksheet, method and QCs
NEEDLE
Sampling needle washed internally and externally
STUDY METHODS
Unlimited number of methods in computer memory; up to 100 active methods
PC, minimum requirements:
Intel I3, 4 GB RAM; Microsoft Windows® 7 or 10 USB port to connect analyzer; Ethernet LAN port to communicate with LIS host; Suggested A4 external laser printer; Software designed even for touchscreen monitor
Model Parameter
Hyperlab Smart multiparameter analyzer SQRQ078689
