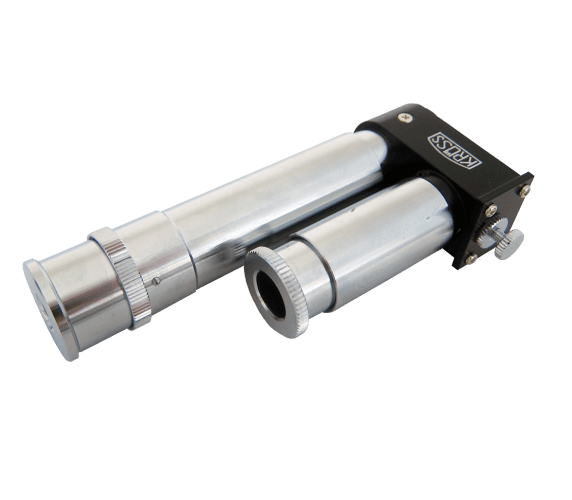

Handheld spectroscope 1500 series
Choose Models for offer request
Intended
- Fixed or differentiated gap
- Angular dispersion C-F 6°/ C-F 7°
- Scale 400-750 nm
Characteristic
Available Models
A.KRÜSS spectroscopes are suitable for qualitative observation and measurement of emission and absorption spectra and are ideal for use in laboratories, schools and universities.
Handheld spectroscope without wavelength scale 1501
Designed for most laboratory applications:
- Portable precision spectroscope
- Ideal for demonstrations in schools and universities
- For qualitative analysis and measurement of emission and absorption spectra
- For individual and comparative observations and spectral studies
- Suitable for checking the line spectrum of a discharge lamp
| Model | 1501 | 1504 |
| Gap | differentiated | differentiated |
| Angular dispersion | C – F 7° | C – F 7° |
| Linear dispersion | 60 mm | 60 mm |
| Prism | Amici type prism | Amici type prism |
| Wavelength scale | No wavelength scale | 400 – 750 nm |
| Model | Prism | Options | Description |
|---|---|---|---|
| 1500 | Amicinprism | Linear dispersion 40 mm | Constant gap |
| 1501 | Amicinprisma | Linear dispersion 60 mm | differentiated gap |
| 1502 | Amicinprisma | Linear dispersion 60 mm | differentiated gap |
| 1505 | Amicinprisma | Linear dispersion 60 mm | differentiated gap |
| 1506 | Amicinprisma | Linear dispersion 60 mm | differentiated gap |
