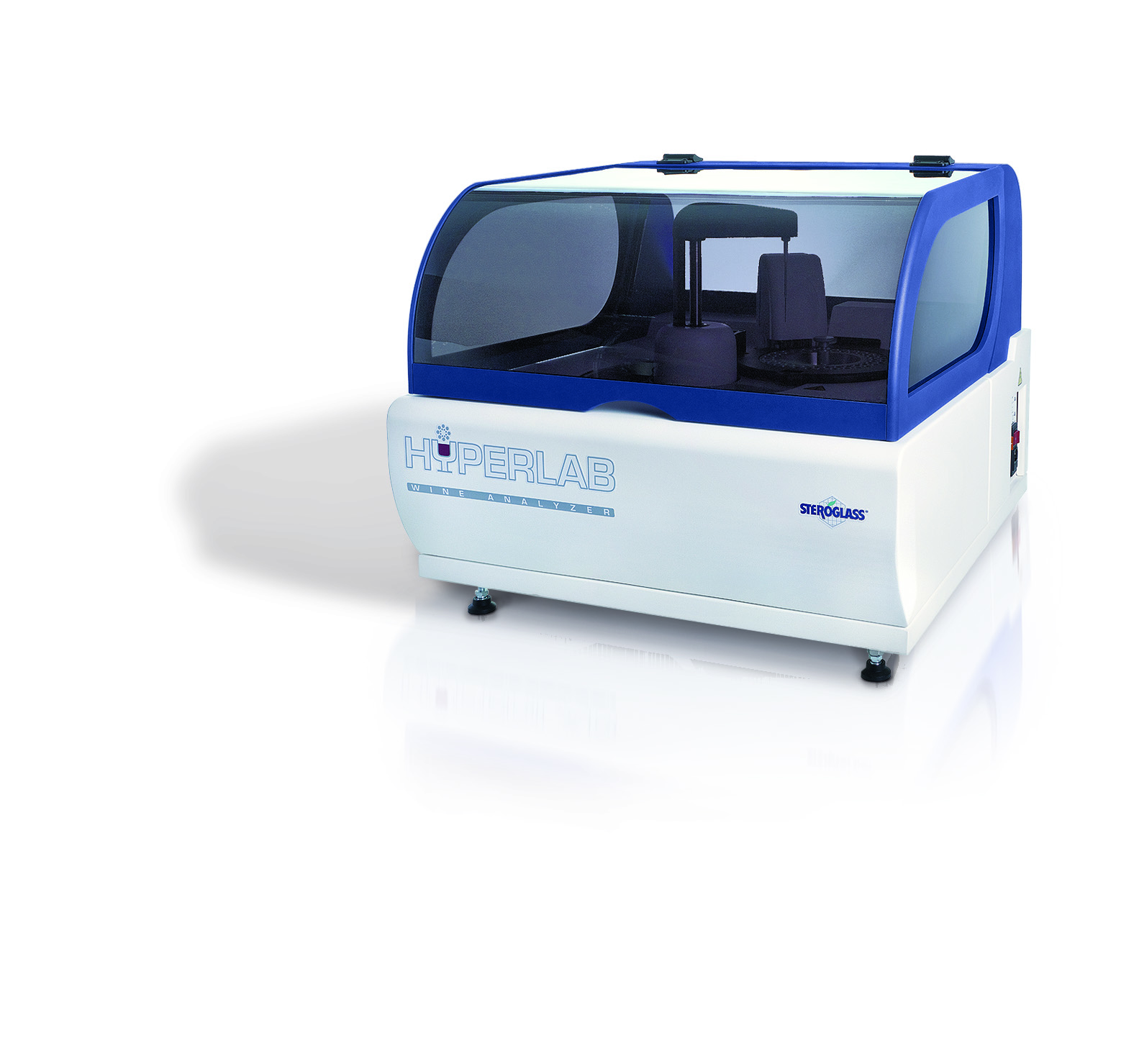

Hyperlab Plus and Basic multi-parameter analyzer
Choose Models for offer request
Intended
- High analytical speed
- Accurate analysis results
- Fully automatic analysis
- Low cost of measurements
- Innovative software
- Dimensions 60x66x50 cm
Characteristic
Available Models
Hyperlab PLUS and BASIC analyzer is the most advanced solution for automating analytical control in the field of enology. The analytical results are extremely accurate and allow the user to work in a time-efficient manner, allowing for both improved quality analysis, cost optimization and additional benefits.
Hyperlab is an automatic multi-parameter analyzer with flexible random access, which means it can fully perform all manual handling procedures automatically.
The sampling arm, controlled by a microprocessor, performs sample collection, sample dilution (if required by the method) and reagent extraction. Both the sample and reagents are dispensed into the reaction cell and remain there long enough, at a constant and controlled temperature, to allow the reaction to take place completely. The reaction product is dispensed using a predetermined wavelength, and the resulting absorbance is expressed in concentration values using appropriate algorithms. During the process, washing phases occur between aspiration and dispensing cycles, thus avoiding the risk of contamination between reagents and samples. After the cuvette is dried, it undergoes a thorough optical inspection before carrying out this analysis.
THE BEST QUALITY AND ECONOMY
Hyperlab's automation guarantees the highest accuracy and precision of data results, significantly reducing analysis costs by about seven times compared to manual methodologies. Hyperlab reagents are reduced to a minimum: a single assay requires less than 300 microliters.
KEY FEATURES
Innovative software: Windows system, user-friendly features, touch screen technology, on/off with programmable startup, online support.
Monitor: information on programmed methods, selected analyses, number of analyses to run, calibration and status check.
Reagent panel: Displays the position of samples and their volumes.
Samples: Status display of samples. Ability to add, remove or modify samples during analysis.
Worklists: Unlimited worklists can be used simultaneously. Tests can be added or removed and automatically repeated if they are wrong. Kinetics reaction checks can be performed for individual tests.
Calibrations: Subtract reagent blanks from 1 to 8 calibrators for a single test.
Linear and nonlinear regressions with three types of data extrapolation: cubic, polynomial and log-logit.
Data processing: results can be recalculated at the end of the analysis by correlating them with one or more samples of a fixed value. The new regression line will show the value obtained by the recalculation.
Tests: All analyses for spectrophotometric determination can be automated.
PARAMETERS
Acetic acid, citric acid, D-gluconic acid, D-lactic acid, L-lactic acid, L-lactic acid, pyruvic acid, tartaric acid, acetaldehyde, anthocyanins, alpha-amino nitrogen, ammonia nitrogen, calcium, catechins, Chlorides, Iron , Glycerol, Glucose / Fructose, Glucose / Fructose (for analysis of high sugar concentration on musts),Magnesium, Total Polyphenols, Potassium, Copper, Free and total SO2, Optical reference solution.
Other methods:
IC (color intensity 420 + 520), shade (420/520), ICM (modified color intensity 420 + 520 + 620), GRB (% of yellow, red and blue on total color is a necessary determination for products undergoing refining or micro-oxygenation).
TECHNICAL DATA HYPERLAB PLUS and BASICVOLUME (Hyperlab Plus i Basic)
-Example: 2-300 µl, precision of 1% at 10 µl
-Reagent: 5-350 µl, precision <1% at 250 µl
-Reactant (sample + reagent): 220-350 µl
-Mixing in cuvette after dosing
DILUTION (Hyperlab Plus and Basic)
-Automatic programmable dilution for each sample
-Factors: 1: 1, 1: 4, 1:10, 1:40, 1: 100
ANALYTIC SPEED
-125 ... 200 analyses / hour - Hyperlab Plus
-100 ... 180 analyses / hour - Hyperlab Basic
TEMPERATURE CONTROL (Hyperlab Plus and Basic)
- Reagent cooled at 15 °C below ambient temperature
- Reading cuvette with programmable heating
- Reagent heating in suction needles
TYPES OF TESTS (Hyperlab Plus i Basic)
Endpoint, Bichromatic endpoint, Differential endpoint,
Differential endpoint blank samples, derivatives, time.
SAMPLE FEEDERS
-60 sample items-Hyperlab Plus vials
-30 vials and 20 cups- Hyperlab Basic
REAGENT FEEDERS
-cooled tray for 30 positions-Hyperlab Plus
-26 refrigerated positions- Hyperlab Basic
SAMPLING NEEDLE
- Ceramic glass needle, capacitance sensor, reagent preheating - Hyperlab Plus
- Stainless steel needle, capacitance sensor, optional reagent heating - Hyperlab Basic
ROTOR (Hyperlab Plus i Basic)
80 BIONEX cuvettes individually exchangeable, more than 20,000 tests
WASHING STATION
-6 dispensing needles for washing solution, 6 suction needles, 1 drying needle, 8 washing cycles for each cuvette
-Hyperlab Plus -4 dispensing needles for washing solution, 5 suction needles, 1 drying needle, 6 washing cycles for each cuvette - Hyperlab Basic
OPTICAL GROUP (Hyperlab Plus i Basic)
-1 halogen lamp (6 V, 10 W) with extended UV emission, 2 focusing lenses,
-position interference filters, 8 positions with interference filters 340, 420, 520, 546, 578, 620, 650, 700 mm, 1 free position and 1 for dark reading.
DATA PROCESSING (Hyperlab Plus and Basic)
The results can be recalculated at the end of the analysis by correlating them with one or more fixed-value samples
INNOVATIVE SOFTWARE (Hyperlab Plus i Basic)
Extremely user-friendly. Optimized random system allows the user to work efficiently and comfortably. Operating system: Windows
TANKS
-2x20lt plastic for washing and draining, Hyperlab Plus plastic tanks
-2x5lt for washing and draining- Hyperlab Basic
SAFETY SENSOR
-Available - Hyperlab Plus
-Unavailable Hyperlab Basic
DIMENSIONS(Hyperlab Plus i Basic)
LxDxH 60x66x50 cm
WEIGHT
- 38Kg Hyperlab Plus
- 32Kg Hyperlab Basic
WORKING CONDITIONS (Hyperlab Plus i Basic)
- Max. relative humidity 16-30 ° C 80%
POWER SUPPLY (Hyperlab Plus i Basic)
-240 / 100Vac, 50/60 Hz single-phase with ground.
POWER ABSORPTION (Hyperlab Plus i Basic)
-Less than 200 VA (excluding external PC)
| Model | Parameter |
|---|---|
| Hyperlab Plus multiparameter analyzer | SQRQ060129 |
| Hyperlab Basic multiparameter analyzer | SQRQ074351 |
