Testo 830- T1 / T2 / T4

Choose Models for offer request

Intended

  • iso-9001-copy
  • shape-2601
  • bad_wlasc
  • iso-9001-copy
  • shape-2601
  • bad_wlasc
  • IR measurement range: -30 to +400°
  • Possibility to connect external K-type thermocouples - Testo 830-T2 and Testo 830-T4
  • Adjustable emissivity: from 0.1 to 1

Testo 830-T1 is a non-contact thermometer, it features:

  • Measuring range: -30 to +400°C
  • 10:1 optics
  • Single-point laser sight
  • Adjustable emissivity: 0.1 to 1



The Testo 803 - T1 pyrometer provides precise surface temperature measurement. It is suitable for applications in both the construction and industrial sectors. It features a single-point laser sight and an ergonomic design, and the 10:1 optics ensure high accuracy.

Advantages of 803-T1:

  • has a modern high-resolution processor - measurement accuracy up to ±1.5 °C
  • measurement even from a long distance thanks to 10:1 optics
  • single-point laser sight
  • possibility to display min / max values allows to control any exceeding of limit values
  • visual and audible alarm when limit values are exceeded
  • easy to read display
  • possibility of self-entry into the device memory of the emissivity coefficient values from 0.1 to 1 - prevents measurement errors depending on the structure of the tested material

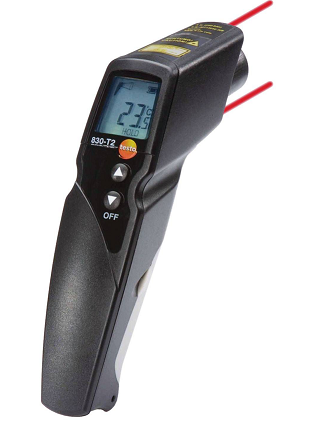

Testo 830-T2 is a non-contact thermometer, feature:

  • Measuring range: -30 to +400°C
  • 12:1 optics
  • Two-point laser sight
  • Adjustable emissivity: 0.1 to 1

The Testo 803-T2 pyrometer has a two-point laser sight for precise surface temperature measurement and 12:1 optics. An external K-type thermocouple can be connected.

Advantages of the 830-T2:

  • has a modern processor with high resolution - measurement accuracy up to ±1.5 °C
  • 12:1 optics ensure high measurement accuracy
  • two-point laser viewfinder
  • Measurement refreshing every 0.5 seconds
  • min / max / hold functions
  • possibility of connecting an external thermocouple type K
  • visual and audible alarm - user can define alarm threshold by himself
  • easy to read display

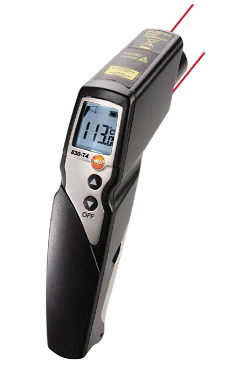

Testo 830-T4 is a non-contact thermometer, it features:

  • Measuring range: from -30 to +400°C
  • Possibility to connect external K-type thermocouples (range from -50 to +500°C)
  • 30:1 optics
  • two-point laser viewfinder

The Testo 803-T4 pyrometer has a two-point laser sight and the ability to connect an external K-type TC probe. It uses 30:1 optics.

Advantages of the 830-T4:

  • has a modern processor with high resolution - measurement accuracy up to ±1.5 °C
  • 30:1 optics - temperature measurement even of small objects and hard to reach objects
  • two-point sight
  • min / max function
  • easy to read display


TECHNICAL SPECIFICATION:

TECHNICAL SPECIFICATION

CATALOG NUMBER

0560 8311

0560 8312

0560 8314

MODEL

TESTO 830-T1

TESTO 830-T2

TESTO 830-T4

TEMPERATURE MEASUREMENT - IR

MEASUREMENT RANGE [°C]

-30 TO +400

ACCURACY [°C]

± 1,5 / 1,5 % MEASURED VALUE (0,1 TO +400)

± 2 / 2 % MEASURED VALUE (-30 TO 0)

± 1,5 (-20 TO 0)

± 2 (-30 TO -20,1)

± 1 / 1 % MEASURED VALUE (THE REST OF RANGE)

IR RESOLUTION [°C]

0,1

MEASUREMENT RATE [s]

0,5

TEMPERATURE MEASUREMENT – TYPE K

MEASUREMENT RANGE [°C]

--

-50 TO +500

ACCURACY [°C]

--

± 0,5 + 0,5 % MEASURED VALUE

IR RESOLUTION [°C]



--

0,1

MEASUREMENT RATE [s]



--

1,75

TECHNICAL DATA

WEIGHT [g]

200

DIMENSIONS [mm]

190 x 75 x 38

OPERATING TEMPERATURE [°C]

-20 TO +50

CASE MATERIAL

ABS

BATTERY TYPE

ALKALINE BATTERY (9V)

BATTERY LIFE [h]

15

STORAGE TEMPERATURE [°C]

-40 TO +70

Model Measurement range Work scope [° C]
830-T1 -30 to +400 °C -20 to +50
830-T2 -30 to +400 °C - IR / -50 to +500 °C - type K -20 to +50
830-T4 -30 to +400 °C - IR / -50 to +500 °C- TYPE K -20 to +50
