Testo 826-T2 I 826-T4
Choose Models for offer request
Intended
- 6:1 optics for fast and accurate measurements
- 1-point laser sight
- Integrated penetrating probe
- HOLD function
- Display of max/min values
- Non-contact surface temperature measurement
Characteristic
Available Models

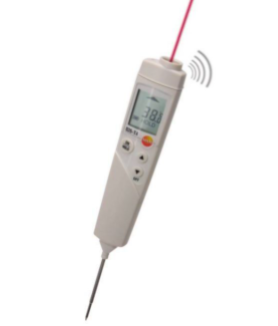

The Testo 826-T4 laboratory meter is a 2-in-1 thermometer with a laser sight and alarm. It has a laser aiming device. In addition to non-contact temperature measurement, it is also possible to measure the temperature by contact - using a probe.
TECHNICAL SPECIFICATION:
|
TECHNICAL SPECIFICATION |
||
|
CATALOG NUMBER |
0563 8282 |
0563 8284 |
|
MODEL |
Testo 826 - T2 |
Testo 826 - T4 |
|
TEMPERATURE MEASUREMENT - NTC |
||
|
MEASUREMENT RANGE [°C] |
-- |
-50 TO +230 |
|
ACCURACY [°C] |
-- |
± 0,5 (-20 TO +99,9) ± 1 / 1 % MEASURED VALUE (THE REST OF RANGE) |
|
RESOLUTION [°C] |
-- |
0,1 |
|
MEASUREMENT RATE [s] |
– |
1,25 |
|
TEMPERATURE MEASUREMENT - IR |
||
|
MEASUREMENT RANGE [°C] |
-50 TO +300 |
|
|
ACCURACY [°C] |
± 1,5 (-20 TO +100) ± 2 / 2% MEASURED VALUE (THE REST OF RANGE) |
|
|
RESOLUTION [°C] |
0,1 |
|
|
MEASUREMENT RATE [s] |
0,5 |
|
|
TECHNICAL DATA |
||
|
WEIGHT [g] |
80 |
|
|
DIMENSIONS [mm] |
148 x 34,4 x 19 |
|
|
OPERATING TEMPERATURE [°C] |
-20 TO +50 |
|
|
STANDARDS |
EN 13485 |
|
|
PROBE LENGTH [mm] |
-- |
55 |
|
BATTERY TYPE |
2 x AAA MOCRO BATTERY |
|
|
BATTERY LIFE [h] |
20 |
|
|
DISPLAY |
LCD |
|
|
DISPLAY SIZE |
1-LINE |
|
|
STORAGE TEMPERATURE [°C] |
-40 TO +70 |
|
| Model | Measurement range | Work scope [° C] | Other |
|---|---|---|---|
| Testo 826 - T2 | -50 TO +300 °C | -50 TO +300 | IR |
| Testo 826 - T4 | -50 TO +230 °C - NTC / -50 TO +300 °C - IR | -50 TO +300 | IR AND PROBE |
