Adventurer Analytical Scales
Choose Models for offer request
Intended
- Rapid stabilization , increasing productivity in the lab
- Reliable performance with AutoCal™ function, guarantees accurate and reproducible results
- Color touch screen with wide viewing angle

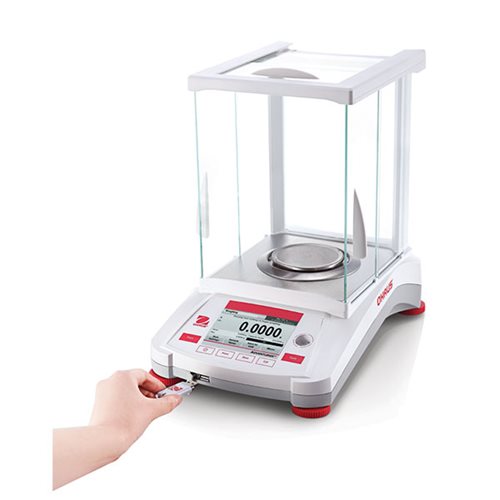

- Two USB ports available with GLP/GMP protocol data verification capability

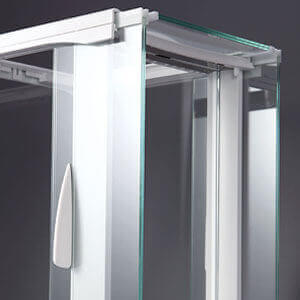

- Two-piece top-mounted blast cabinet door, giving wide access to the weighing chamber on both sides, (Models with 0.1 and 1mg readings)
Characteristic
Available Models
The Adventurer Series scale from OHAUS is the most complete scale in its class. It enables fast stabilization and reliable operation, supported by the AutoCal™ function that guarantees good, accurate and repeatable weighing results in typical laboratory applications. A wide-angle color touchscreen provides access to all Adventurer scale applications. On select models, a two-piece, top-mounted blast cabinet door is available that takes up little space when opened, allowing wide access to the weighing chamber on both sides.
Features of the device:
- VGA 4.3" (109 mm) color graphic touchscreen that allows user adjustable brightness
- Communication: RS232, 2 x USB, GLP/GMP protocol with real time clock
- Construction: metal base and ABS top case, stainless steel weighing pan, glass blast cabinet with two-piece top-mounted side door and sliding top door, integrated hook for under-panel weighing, illuminated scale leveler
- Environmental filters, auto tare, user-selectable range calibration points, software lock and reset menus, user-defined communication settings and data printout options, and user-defined identifiers
- Power supply: AC adapter and batteries, automatic shutdown
Technical specification:
| Model | Legalization-M | AutoCal | Range | Readout(d) | (e) | Pan | cal. weight, class | Number |
| AX124 | * | 120g | 0,1mg | diameter 90 mm | 100g, E2 | 30122610 | ||
| AX224 | * | 220g | 0,1mg | diameter 90 mm | 200g, E2 | 30122611 | ||
| AX34 | * | 320g | 0,1mg | diameter 90 mm | 200g+100g, E2 | 30122613 | ||
| AX124M | * | * | 120g | 0,1mg | 1mg | diameter 90 mm | 100g, E2 | 30100620 |
| AX224M | * | * | 220g | 0,1mg | 1mg | diameter 90 mm | 200g, E2 | 30100621 |
| AX324M | * | * | 320g | 0,1mg | 1mg | diameter 90 mm | 200g+100g, E2 | 30100622 |
| AX124/E | 120g | 0,1mg | diameter 90 m | 100g, E2 | 30122657 | |||
| AX224/E | 220g | 0,1mg | diameter 90 mm | 200g, e2 | 30122612 |
| Model | Weighing range [g] | Reading accuracy |
|---|---|---|
| AX124 nr kat.: 30122610 | 120 | 0.1 mg |
| AX224 nr kat.: 30122611 | 220 | 0.1 mg |
| AX324 nr kat.: 30122613 | 320 | 0.1 mg |
| AX124M nr kat.: 30100620 | 120 | 0.1 mg |
| AX224M nr kat.: 30100621 | 220 | 0.1 mg |
| AX324M nr kat.: 30100622 | 320 | 0.1 mg |
| AX124E nr kat.: 30122657 | 120 | 0.1 mg |
| AX224/E nr kat.: 30122612 | 220 | 0,1 mg |
