Pioneer Analytical Scales
Choose Models for offer request
Intended
- Competitive performance at an affordable price
- Durable design for long-lasting use
- Designed for simple, intelligent operation
Characteristic
Available Models
Pioneer Analytical (PX) scales offer high accuracy and repeatable results at an affordable price.
They are perfect for both laboratory and industrial applications or education.
The PX series balances feature a metal base and stainless steel pan. They are built for durability and long-term use in a variety of applications.
They are perfect for both laboratory and industrial applications or education.
The PX series balances feature a metal base and stainless steel pan. They are built for durability and long-term use in a variety of applications.
The display of the PX scales has a second line that shows additional information and guidance in the measurement process. The devices also have a static charge removal bar and RS232 and USB connectors.
Features of the device:

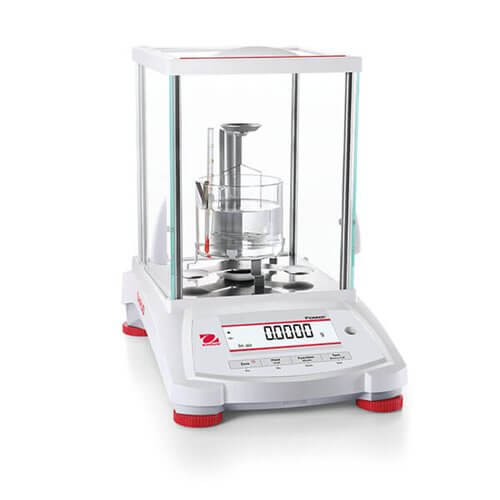

- Functions: weighing, piece counting, percentage weighing, animal/dynamic weighing, density determination
- Power supply: AC adapter (included)
- Construction: metal base, plastic top casing, removable stainless steel pan, glass blast cabinet with removable door, built-in hook for under-glass weighing, anti-theft protection, calibration lock, protective cover
- Display: backlit liquid crystal display (LCD); second line of display with additional information or indications (dot matrix)
- Design features: user-defined filter level or brightness settings, auto tare, auto dim, user-defined range calibration points, software lock and reset menu, user-selectable communication settings and data print options, user-defined project and user IDs, overload/underload indicator, stability indicator, four interface languages
- Communication: RS232 and USB host (standard); GLP/GMP data output with real-time clock
Technical specification:
| Model | Legalization-M | Internal calibration | Range | Readout (d) | (e) | Pan | cal. weight, class | Number |
| PX124 | * | 120g | 0,1mg | diameter 90 mm | 100g, E2 | 30429803 | ||
| PX224 | * | 220g | 0,1mg | diameter 90 mm | 200g, E2 | 30429804 | ||
| PX124M | * | * | 120g | 0,1mg | 1mg | diameter 90 mm | 100g, E2 | 30430010 |
| PX224M | * | * | 220g | 0,1mg | 1mg | diameter 90 mm | 200g, E2 | 30430013 |
| PX124/E | 120g | 0,1mg | diameter 90 mm | 100g, E2 | 30429810 | |||
| PX224/E | 220g | 0,1mg | diameter 90 mm | 200g, E2 | 30429811 |
| Model | Weighing range [g] | Reading accuracy |
|---|---|---|
| PX124 nr kat.: 30429803 | 120 | 0.1 mg |
| PX224 nr kat.: 30429804 | 220 | 0.1 mg |
| PX124M nr kat.: 30430010 | 120 | 0.1 mg |
| PX224M nr kat.: 30430013 | 220 | 0.1 mg |
| PX124/E nr kat.: 30429810 | 120 | 0.1 mg |
| PX224/E nr kat.: 30429811 | 220 | 0.1 mg |
