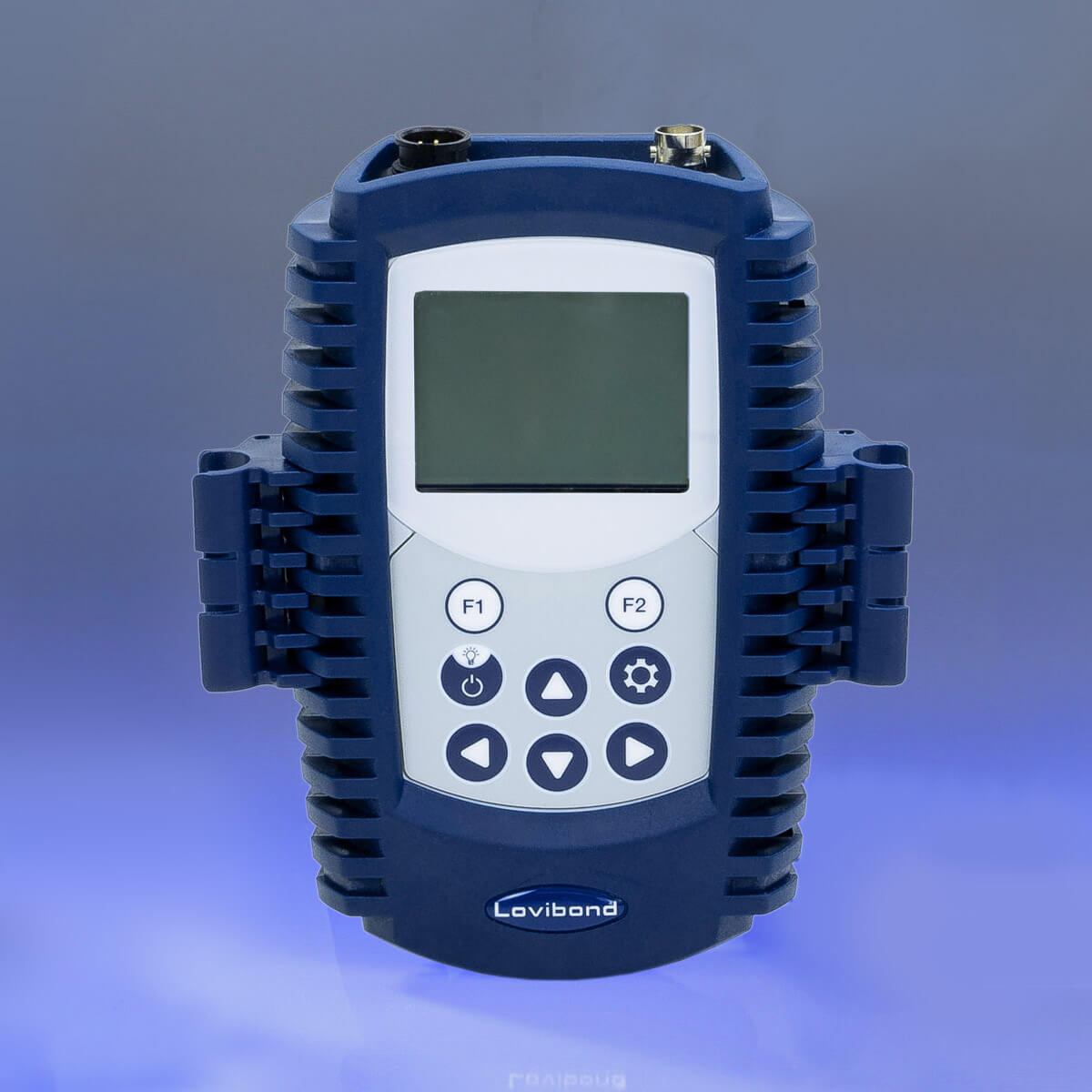

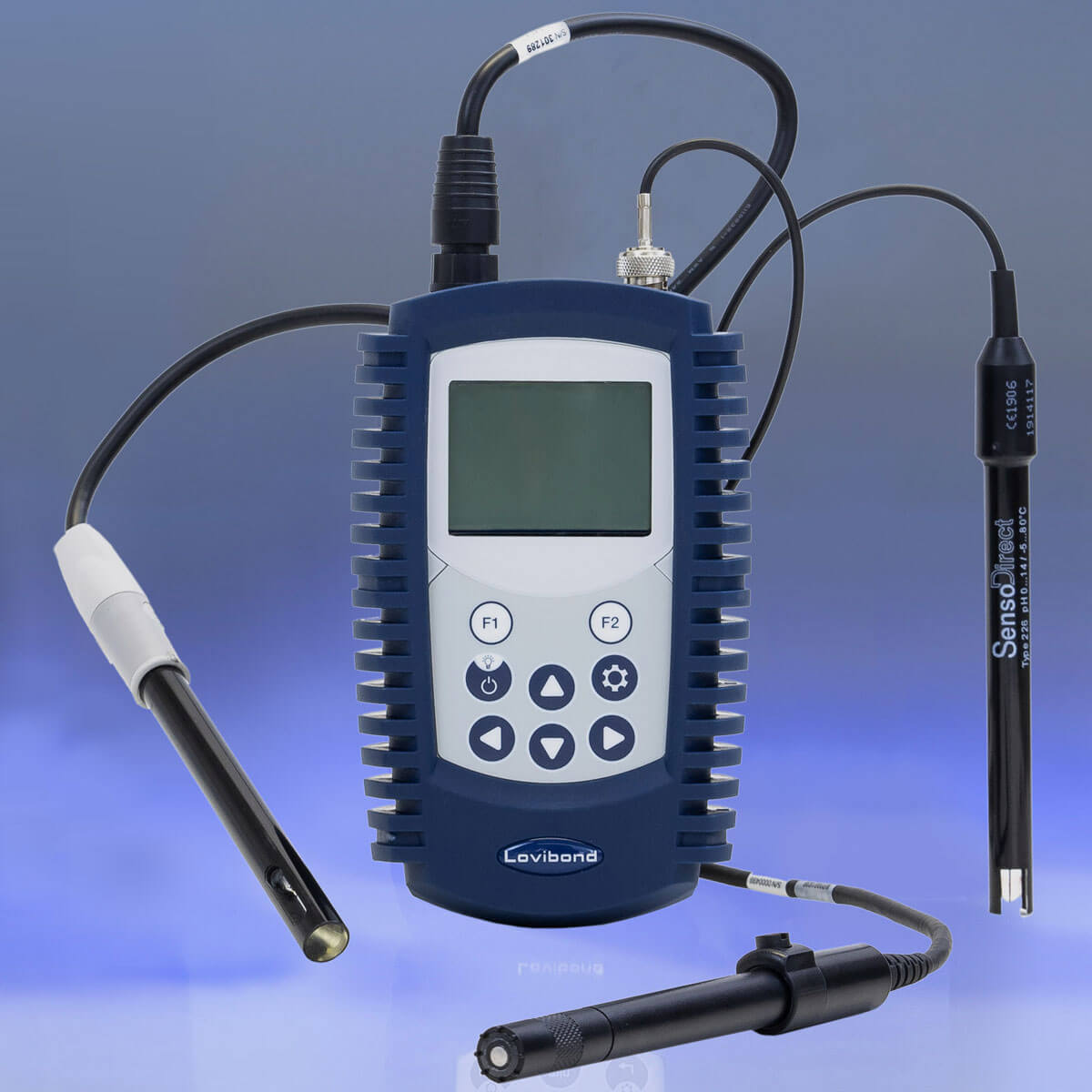

Portable multi-parameter meter SD 355 Multi
Choose Models for offer request
Intended
- Intuitive user interface with graphical LCD display
- Galvanically isolated measurement inputs
- Data transfer via Micro-USB in CSV format
Characteristic
Available Models
- New technology
Thanks to galvanic isolation, temperature and two other parameters can be determined and displayed simultaneously.
- Intuitive operation
The combination of user-friendly operation and a graphical LCD display with 7 different languages makes the portable measuring instrument an ideal companion for daily use in water analysis.
- Data management
With a micro-USB interface, data can be easily transferred to a computer and processed without the need for additional software.
- Case
The reinforced housing guarantees safe operation at all times, even in extreme environmental conditions.
| Model | SD 335 Multi |
| Dispaly | backlit LCD display |
| Interface | USB |
| Power supply | 3 x battery NiMH (AAA) |
| Auto-off | yes |
| Temperature compensation | automatic |
| Type of meter | portable |
| Protection class | IP 67 |
| Dimensions | 100 x 164 x 37 mm |
| Weight | 310 g |

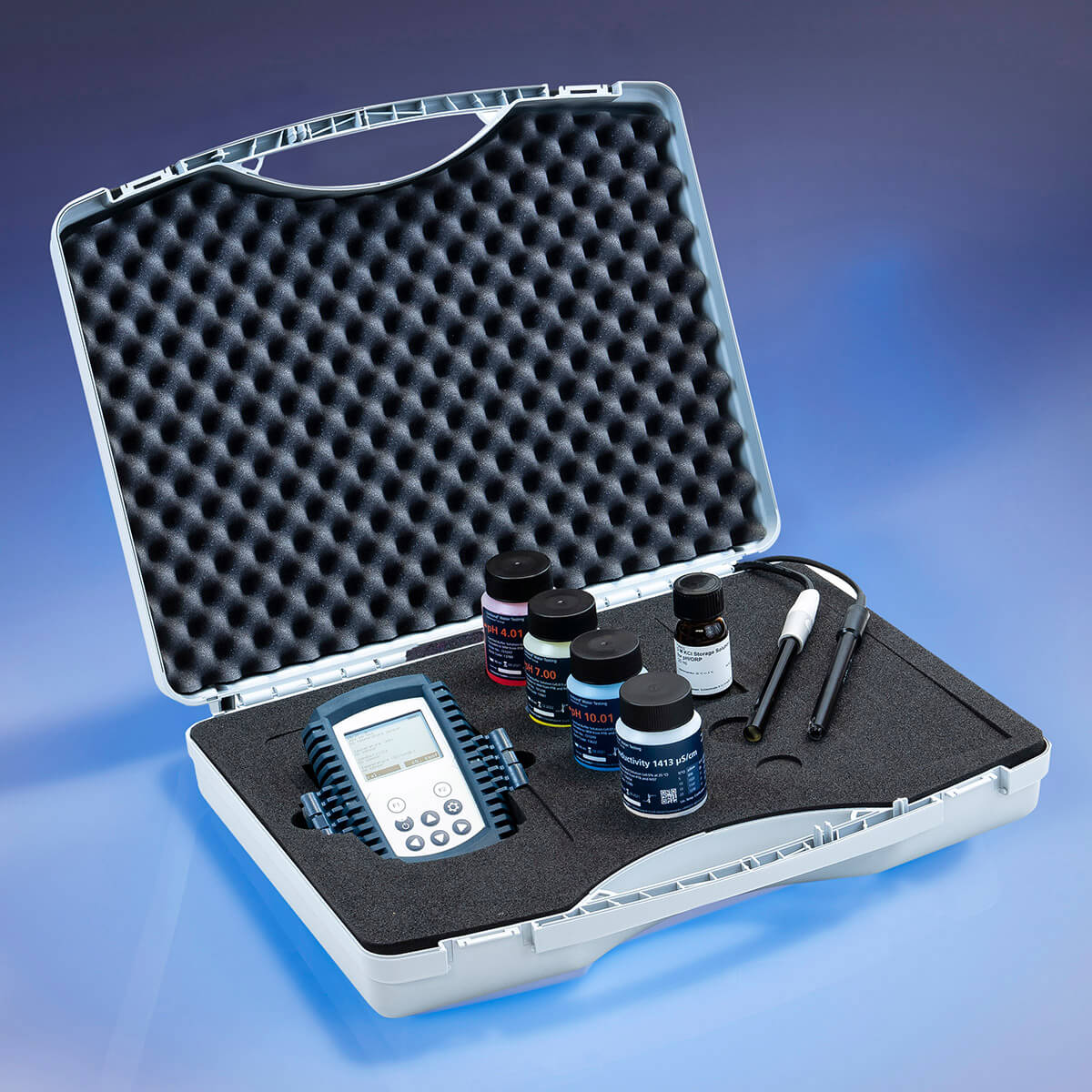

Kits available:
- SD 335 Multi - basic instrument set includes: meter, electrode holder x2, NiMH battery, user manual, Micro USB cable;
- SD 335 Multi pH/Con (Set 1) set includes: meter, x2 electrode holder, NiMH battery, user manual, Micro USB cable, pH/temperature plastic electrode type 231, LC 12 conductivity electrode (measuring range 0-200 mS/cm), carrying case;
- SD 335 Multi pH/DO (Set of 2) set includes: meter, electrode holder x2, NiMH battery, user manual, Micro USB cable, pH/temperature plastic electrode type 231, oxygen sensor with 2 m cable, carrying case;
- SD 335 Multi pH/Con/DO (Set of 3) set includes: meter, x2 electrode holder, NiMH battery, user manual, Micro USB cable, pH/temperature plastic electrode type 231, oxygen sensor with 2 m cable, LC 12 conductivity electrode (measuring range 0-200 mS/cm), carrying case.
Parameters:
- Kit 1:
| Model | SD 335 Multi pH/Con |
|
Conductivity |
0 - 200 mS/cm |
|
pH |
-2 - 16 |
|
Redox |
-2000.0 - 2000.0 mV |
| Salinity |
0 - 70 g/kg |
|
TDS |
0 - 200 g/l |
|
Temperature |
-10 - 110 ° C |
- Kit 2:
| Model | SD 335 Multi pH/DO |
|
Oxygen |
0 - 50 mg/l O2 |
|
Oxygen |
0 - 500 % |
|
pH |
-2 - 16 |
|
Redox |
-2000.0 - 2000.0 mV |
|
Temperature |
-10 - 110 ° C |
- Kit 3:
| Model | SD 335 Multi pH/Con/DO |
|
Conductivity |
0 - 200 mS/cm |
|
Oxygen |
0 - 500 % |
|
pH |
-2 - 16 |
|
Redox |
-2000.0 - 2000.0 mV |
|
Salinity |
0 - 70 g/kg |
|
TDS |
0 - 200 g/l |
|
Temperature |
-10 - 110 ° C |
| Model | Description | Parameter |
|---|---|---|
| SD 335 Multi (Set 1) – pH/Con | Conductivity / pH / Redox / Salinity / TDS / Temp. | Conductivity 0 - 200 mS/cm / pH -2 - 16/ Redox -2000.0 - 2000.0 mV / Salinity 0 - 70 g/kg / TDS 0 - 200 g/l / Temp. -10 - 110 ° C |
| SD 335 Multi (Set 2) – pH/DO | Oxygen / Oxygen / pH / Redox / Temp. | Oxygen 0 - 50 mg/l O2 / Oxygen 0 - 500 % / pH -2 - 16/ Redox -2000.0 - 2000.0 mV / Temp. -10 - 110 ° C |
| SD 335 Multi (Set 3) – pH/Con/DO | Conductivity / Salinity / TDS / Temp. | Przewodność 0 - 200 mS/cm / Tlen 0 - 500 % / pH -2 - 16 / Redox -2000.0 - 2000.0 mV / Zasolenie 0 - 70 g/kg / TDS 0 - 200 g/l / Temp. -10 - 110 ° C |
