Digital penetration thermometer 103
Choose Models for offer request
Intended
- HACCP compliant, meets EN 13485 standard
- Great for food safety inspection
- IP55 protection rating
- Foldable probe - fits safely in your pocket
- Great for quick and easy measurements
- Easy to use
- High measurement accuracy
Characteristic
Available Models

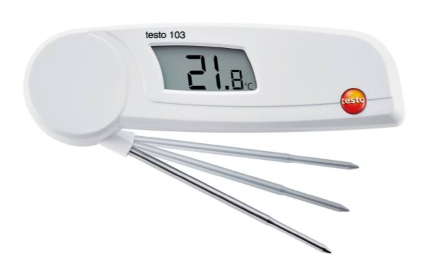

The Testo 103 penetration thermometer is a compact device (about 11 cm) that has a folding function. It will prove useful for point measurements in the food industry, for example. The ability to fold the measuring probe, combined with its small size, allows it to be safely hidden, for example, in a pocket - without the risk of cutting or injuring the user.
The parameters of the device allow it to be used wherever food is produced, stored or sold. It will be perfect for quality control of deliveries, catering, fast food outlets, restaurants, canteens or cold stores.

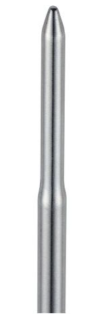

Thin and sturdy measuring probe is great for random measurements of food products - it leaves no visible trace when the probe is driven in. Even a probe folded at an angle of 30° allows measurement - a great solution in situations where the way the batch of products is laid out in the warehouse does not allow measurements with an unfolded probe.
TECHNICAL SPECIFICATION:
|
TECHNICAL SPECIFICATION |
|
|
CATALOG NUMBER |
0560 0103 |
|
MEASUREMENT RANGE [°C] |
-30 TO +220 |
|
ACCURACY [°C] |
± 0,5 (-30 TO +99,9) ± 1,0% MEASURED VALUE (+100 TO +220) |
|
RESOLUTION [°C] |
0,1 |
|
RESPONSE TIME t99 [s] |
t99 = 10 |
|
WEIGHT [g] |
46 (WITH BATTERY) |
|
DIMENSIONS [mm] |
189 x 35 x 19 (WITH THE PROBE FOLDED) 115 x 35 x 19 (WITH THE PROBE EXTENDED) |
|
OPERATING TIME [°C] |
-20 TO +60 |
|
HOUSING MATERIAL |
ABS |
|
PROTECTION CLASS |
IP 55 |
|
COLO OF PRODUCT |
WHITE |
|
PROBE LENGTH [mm] |
75 |
|
PROBE TIP LENGTH [mm] |
22 |
|
PROBE DIAMETER [mm] |
3 |
|
PROBE TIP DIAMETER [mm] |
2,3 |
|
ON / OFF |
WITH FOLDING MECHANISM (30°) / AUTO SHUT-OFF AFTER 60 min |
|
MEASUREMENT RATE [s] |
0,5 |
|
STANDARDS |
EN 13485 |
|
BATTERY TYPE |
2 x BATTERY CR 2032 |
|
BATTERY LIFE [h] |
300 (AT +25°C) |
|
DISPLAY |
LCD |
|
DISPLAY SIZE |
1-LINE |
|
DISPLAY BACKLIGHTING |
NO |
|
STORAGE TEMPERATURE [°C] |
-30 TO +70 |
| Model | Measurement range | Scale | Work scope [° C] |
|---|---|---|---|
| Testo 103 | -30 TO +220°C | 46 g | -20 TO +60 |
