BioBlood BR
Choose Models for offer request
Intended
• Temperature range + 2 ° C / + 6 ° C
• Additional temperature sensor
• BioLine air system
• Automatic defrosting
• BioBlood control
• Additional temperature sensor
• BioLine air system
• Automatic defrosting
• BioBlood control
Characteristic
Available Models

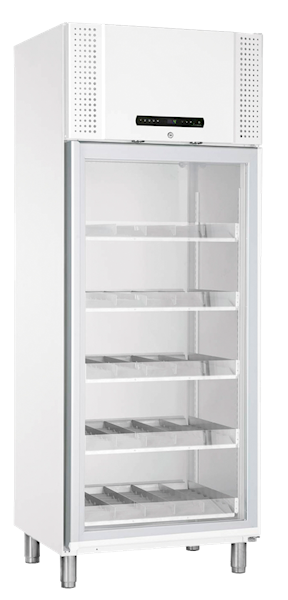

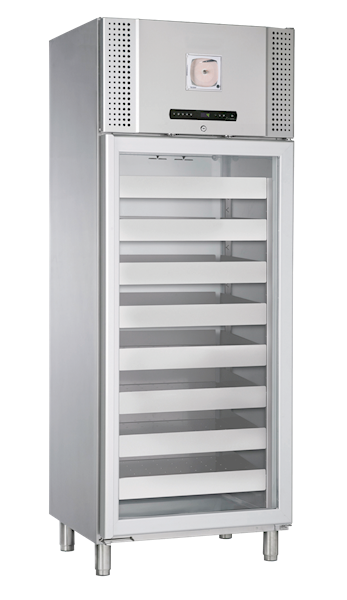

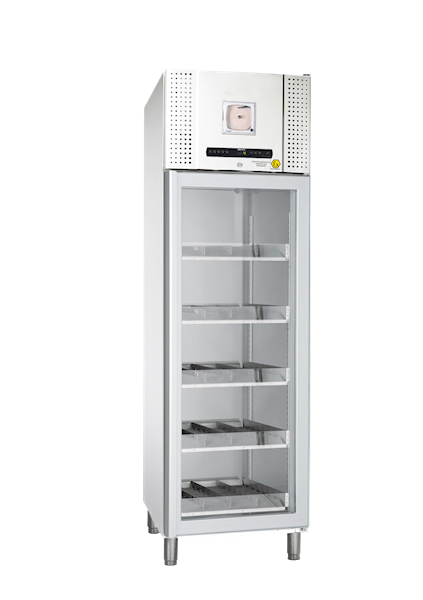

The BioBlood refrigerator is adapted to special requirements related to the controlled storage of blood, plasma, and blood-related products. These advanced devices have been developed exclusively for blood storage to ensure high, constant quality at every stage, from the donor to the transfusion. This means exceptionally rigorous specifications for all components.
BioBlood chambers also provide users with an excellent view of their contents. Glass doors allow you to see at a glance what is inside the cabinet, allowing control and access to it. BioBlood uses environmentally friendly natural foam propellants that do not contain HFC and is available with refrigerants that do not contain HFC.
| Technical specification | BR 500 | BR 600D | BR 600 W | BR 930 |
|
Temperature range
|
+ 2 ° C / + 6 ° C
|
|||
|
Ambient temperature range
|
solid door 10 ° C / 43 ° C; glass door 10 ° C / 38 ° C
|
|||
| Port |
1 szt. Ø 24,5 mm
|
|||
| Dimensions (W X D X H) [mm] |
600 x 806 x 2025/2275
|
695 x 876 x 1875/2125
|
815 x 756 x 1875/2125
|
780 x 1045 x 2025/2275
|
|
Net weight [kg]
|
130 | 146 | 146 | 165 |
| Volume [l] | 500 | 600 | 600 | 930 |
|
Modules of shelves and drawers
|
shelves 52 - drawers 13
|
shelves 24 - drawers 12
|
shelves 24 - drawers 12
|
shelves 52 - drawers 13
|
|
Refrigerant
|
R290 / R134a / prepared fo an external compressor / prepared for glycol
|
|||
|
Air system
|
BioLine wentilated air distribution system
|
|||
|
Defrosting system
|
Automatic intelligent defrosting with re-evaporation of defrost water
|
|||
| Model | Temperature range [° C] | Capacity | Scale | Dimensions |
|---|---|---|---|---|
| BR 500 | +2 to +6 | 500 l | 130 kg | 600 x 806 x 2025/2275 mm |
| BR 600D | +2 to +6 | 600 l | 146 kg | 695 x 876 x 1875/2125 mm |
| BR 600W | +2 to +6 | 600 l | 146 kg | 815 x 756 x 1875/2125 mm |
| BR 930 | +2 to +6 | 930 l | 165 kg | 780 x 1045 x 2025/2275 mm |
