STRIKE 300 vacuum evaporators

Choose Models for offer request

Intended

  • Models available with vertical or slanted coolers
  • GLP-compliant multifunctional touchscreen display
  • Glass in standard or plastic-covered versions
  • Transparent cover for rotating flask and bath
  • Automatic glass lifting system
  • Compact design
  • Warranty 12 months with possibility of extension

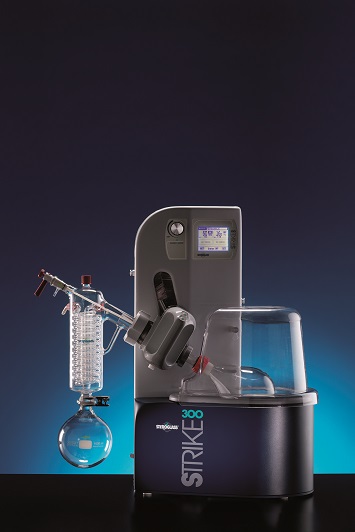

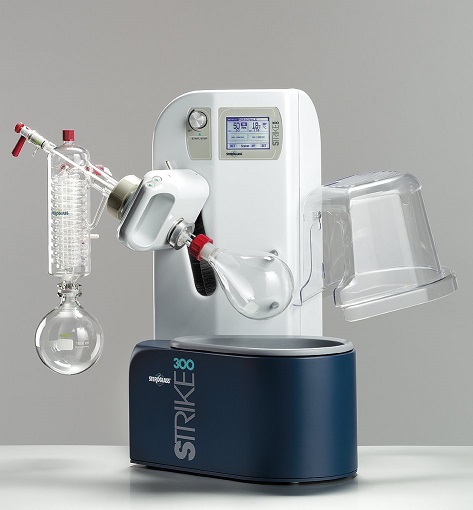

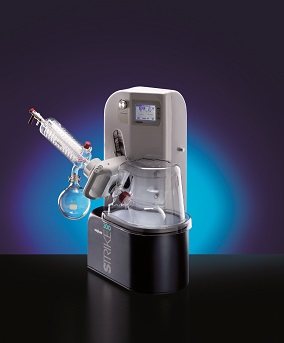

A modern, safe rotary evaporator designed for user safety and optimized performance. The transparent cover provides both the user and the working environment with maximum protection from moving and hot parts. No maintenance required.



Safety:

The STRIKE 300 rotary evaporator combines excellent operation and a high level of workmanship all in an ergonomic design.

Maximum safety in solvent evaporation in the laboratory.

Health and safety paramount in the workplace.

Design:

Compact and modern

The entire control panel (display and dial) is located in the central part of the device, guaranteeing handy use.

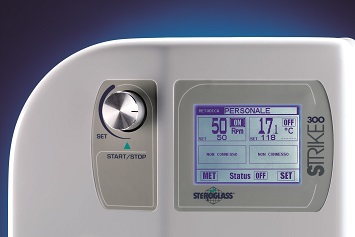

Control panel:

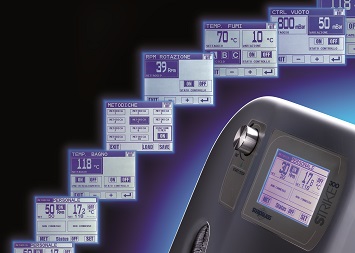

The touchscreen display is wide and the information displayed on it is easy to understand. The microprocessor is multifunctional and GLP-compliant.

Start/stop and knob for adjustment.

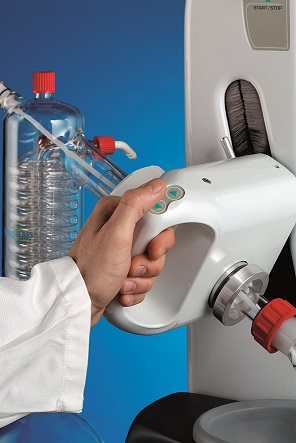

Glass lifter:

The unit is equipped with an electronically controlled glass lifter (Standard equipment).

System tightness:

The tightness of the system is very important. The sealing system includes gaskets made of PTFE and graphite rather than poor-quality gaskets and other materials that could be damaged by solvents, as in other models.

The system guarantees self-lubricating tightness and protection against corrosion.

Automatic operation:

With the ST 300's vacuum controller and Pt-100 sensor, it is possible to set vacuum ramps (total solvent separation - optional equipment).

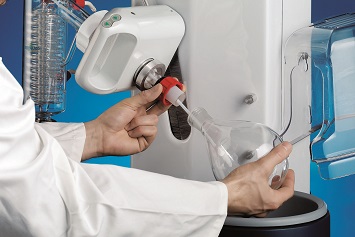

Flask mounting:

A threaded flask is mounted to the entire system by screwing it on.

Mounting and sliding the flask out of the system is very easy.

You can also use traditional flasks without threads using a special clip for mounting.

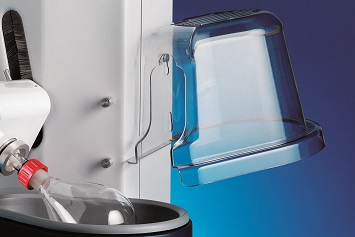

Transparent safety cover:

A shield to ensure our safety is supplied with all models (Standard Equipment).

It is possible not to use the shield by moving it to the side of the device





Dane techniczne:

  • Removable transparent safety cover
  • The glass lifter is designed to allow lifting glass with or without the guard.
  • Gaskets made of PTFE and graphite (PTFE - has good lubricating properties and no dirt sticks to it. Another important property of PTFE is its high chemical resistance. It practically does not react with or dissolve in anything, even in concentrated hydrofluoric acid. Graphite, like PTFE, is characterized by low reactivity is soft and oily to the touch. Gaskets made of graphite plates can be used in the temperature range from -200 °C to 650 °C.
  • The device is equipped with a mechanism to raise the laboratory glassware (in case of power failure, the glassware can be manually raised as well as lowered)
  • GLP-compliant 3.5" monochrome LCD touch screen
  • Quick start/stop and selection with a dial
  • Rodavis flask attachment method (regular 29/32 grind flasks can also be used)
  • Free-standing bath (you can change its position at any time and also easily pour out the contents).
  • Standard USB interface
  • PT100 vapor temperature sensor (optional).
  • Vacuum controller (optional).
  • Speed range: from 20 to 280 rpm (150W motor).
  • Heating range of the bath: from ambient temperature up to 185ºC (possibility to heat water and oil).
  • Power of the bath: 1200W
  • Bath capacity: 5 L.
  • PTFE-coated bath.
  • Models are available with vertical or diagonal coolers.
  • Standard glass or optional plastic-coated glass can be selected.
  • Comes with a 1000 ml solvent evaporation flask (optional capacity can be selected: 50 to 3000 ml).
  • Comes with a 1000 ml solvent collection flask (optional capacity: 250 to 2000 ml).
  • Overall dimensions: 690x700x430 mm (vertical version HxDxL).
  • Weight: 26.5 kg (vertical version).
  • Overall dimensions: 690x790x430 mm (slanted version HxDxL).
  • Weight: 26 kg (slanted version).
  • Power supply: 230 V AC, 50 Hz.
  • Power consumption: 1400W.

Control panel:

  • LCD 3.5" graphic touch screen display
  • Quick start/stop and selection of basic parameters
  • Real time - display of all basic operating parameters (bath temperature, speed) as well as vacuum value and vapor temperature ( only if you purchase a probe and vacuum controller)
  • Also displays the actual time of the working method
  • Ability to write and read 10 methods
  • Timer
  • Ability to set ramps according to time (if vacuum controller is purchased)
  • The device can be connected to a computer (USB port)
  • With the USB port, the software can be updated
  • Silent rotary drive of the distillation flask, electronically controlled

Optional equipment:

  • PT100 probe
  • Vacuum controller ST300 (compatible with software) or other
  • Vacuum pump
  • Solvent trap
  • Circulating cooling unit
  • Slant/vertical cooler
  • Evaporating flasks with capacities: 50, 100, 250, 500, 1000, 2000 ml
  • Evaporating flasks for powders in capacities: 500, 1000, 2000, 3000 ml
  • Receiving flasks with capacities: 500, 1000, 2000 ml



Model Standard options
STRIKE 300 evaporator, vertical cooler standard Cat. no.: SQED059112 vertical cooler in standard version
STRIKE 300 evaporator, plastic covered vertical cooler Cat. no.: SQED059418 vertical radiator covered with plastic
STRIKE 300 evaporator, slant cooler standard Cat. no.: SQED059113 slanted radiator in standard version
STRIKE 300 evaporator, plastic covered slanted radiator Cat. no.: SQED059419 slanted radiator covered with plastic
